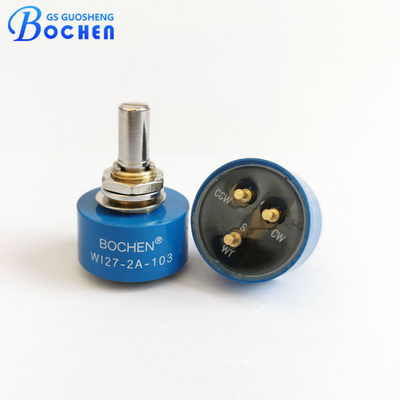

WI27 5k 10k Ohm Panel Mount Precision Rotary Potentiometer

MOQ: 100 Pieces
Price: $7.00 - $12.00/piece
Standard Packaging: Standard Packing
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, Reach
Model Number
WI27
Product Name:
WI27 1w 7/8" Bushing Mount Single Turn Conductive Plastic Potentiometer
Product Type:
Single Turn Rotary Potentiometer
Element Type:
Conductive Plastic
Mounting Style:
Panel Mount
Termination Style:
Solder Turret
Standard Resistance Range:
5 KΩ
Resistance Tolerance:
±20% (±10% Can Be Customised)
Linearity (independent):
±2.0%(±1.0% Can Be Customised)
Power Rating:
1.0 W At 70 °C Derated To 0 W At 125 °C
Electrical Travel:
340° ± 3°
Minimum Order Quantity:
100 Pieces
Price:
$7.00 - $12.00/piece
Packaging Details:
Standard Packing
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

10k ohm Precision Rotary Potentiometer

,

Panel Mount Precision Rotary Potentiometer

,

WI27 Precision Rotary Potentiometer

Product Description

WI27 5k 10k ohm Panel Mount Precision Rotary Potentiometer





Quick Detail



• Lead-free.
• RoHS 2 compliant.
• 7/8” diameter.
• Single turn.
• Conductive plastic.

• Gold aluminum alloy housing.

WI27 5k 10k Ohm Panel Mount Precision Rotary Potentiometer 0





Description



The WI27 Conductive Plastic Potentiometer is a high-quality, single-turn potentiometer designed for precise control in various applications. Featuring a compact 7/8" (22.2 mm) bushing mount type, this potentiometer is both versatile and easy to install. It offers a nominal resistance 5kΩ, with a power rating of 1 watt at 70°C. The resistance tolerance is ±20%, with the option to customize to ±10% for specific needs.



The WI27 potentiometer is engineered for accuracy, boasting an independent linearity of ±2.0%, which can be customized to ±1.0% for even greater precision. Its electrical travel is 340° ± 3°, ensuring smooth and reliable operation within its specified range. This conductive plastic potentiometer is ideal for applications requiring dependable and precise adjustments.





Specification



Electrical Characteristics Standard Resistance Range 5 kΩ
Resistance Tolerance ±20% (±10% can be customised)
Linearity (independent) ±2.0%(±1.0% can be customised)
Output Smoothness 0.1% maximum
TCR ±600 ppm/°C maximum
Power Rating 1.0 W at 70 °C derated to 0 W at 125 °C
Electrical Travel 340° ± 3°
End Voltage 0.5% maximum
Dielectric Withstanding Voltage 1000 VRMS, 60 Hz
Insulation Resistance 1000 MΩ, 500 VDC
Mechanical Characteristics Rotation 360° continuous (optional mechanical stops 340° ± 3°)
Mounting 3/8 - 32 UNEF - 2A
Operating Torque Maximum Starting and running 3.68 mNm (0.5 oz. - in)
Shaft Tolerance Maximum
Runout
End play
Radial play
0.13 mm (0.005")
0.25 mm (0.010")
0.13 mm (0.005")
Weight 17.5 g (0.62 oz.)
Environmental Characteristics Vibration 15 g, 10 Hz to 2000 Hz
Shock 50 g
Load Life 1000 h
Storage Temperature Range -55 °C to +125 °C
Life 5 000 000 shaft revolutions
Materials
Housing
Bushing
Rear lid
Shaft
Terminals
Thermoplastic housing
Brass, nickel plated
Alumina
Stainless stee
Turret type, solder plated
Bushing Mount Hardware
Lockwasher Internal Tooth
Panel Nut
Steel, nickel plated
Brass nickel plated




Dimension



Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

WI27 5k 10k Ohm Panel Mount Precision Rotary Potentiometer 1



Packaging



WI27 5k 10k Ohm Panel Mount Precision Rotary Potentiometer 2



Application



• Pedal position.
• Joystick controls.
• Valve control.
• Wind vane.
• Panel control.
• Test and measurement.
• Medical equipment.
• Angular position.





Advantage



• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.





Product Catalog



WI27 5k 10k Ohm Panel Mount Precision Rotary Potentiometer 3
