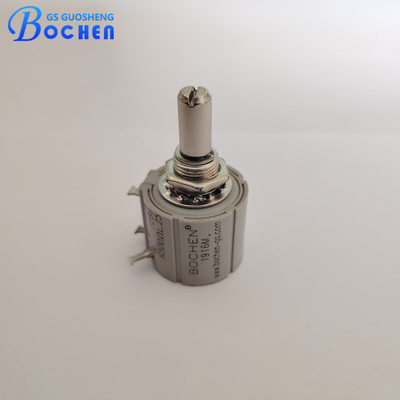

7286 1K 2K 5K 10K Ohm Precision Variable Potentiometer

MOQ: 100 Pieces
Price: $2.70 - $6.00/Piece
Standard Packaging: 25 pcs/plastic box; 50 pcs/box.
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, REACH
Model Number
7286
Product Name:
BOCHEN 7286 R2kl 25 Wirewound Precision Potentiometer
Product Type:
Wirewound Potentiometer
Element Type:
Wirewound
Termination Style:
Solder Turret
Mounting Style:
Panel Mount
Nominal Resistance Range:
100Ω-100KΩ
Resistance Tolerance:
±5%
Independent Linearity:
±0.5%
Effective Travel:
≥3600°-10°
Rated Power:
2W@+70℃，0W@+125℃
Minimum Order Quantity:
100 Pieces
Price:
$2.70 - $6.00/Piece
Packaging Details:
25 pcs/plastic box; 50 pcs/box.
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

2K Precision Variable Potentiometer

,

10K Precision Variable Potentiometer

,

5K Precision Variable Potentiometer

Product Description

7286 1K 2K 5K 10K Ohm Precision Variable Potentiometer



Description



The 7286 wirewound potentiometer is a high-precision, 10-turn, multi-turn component designed for a wide range of demanding applications. It features a lead-free construction with a 7/8” diameter, a 1/4" shaft, and a 3/8" bushing, ensuring robust and reliable performance. The potentiometer offers a nominal resistance range from 100Ω to 100KΩ with a tolerance of 5%, making it versatile for various uses. Rated at 2W at 70℃, it can handle significant power loads. Its independent linearity of 0.5% guarantees high precision, and the effective electrical travel is ≥3600°-10°, with a total mechanical travel of 3600°±10°, providing extensive adjustment capability.



7286 1K 2K 5K 10K Ohm Precision Variable Potentiometer 0                 7286 1K 2K 5K 10K Ohm Precision Variable Potentiometer 1







Additionally, the 7286 wirewound potentiometer is RoHS compliant, meeting environmental and safety standards. This component is widely used in industrial automation, aerospace, medical equipment, test and measurement equipment, audio equipment, communication equipment, and more, thanks to its high precision and reliability.



7286 1K 2K 5K 10K Ohm Precision Variable Potentiometer 2       7286 1K 2K 5K 10K Ohm Precision Variable Potentiometer 3





Feature

• Lead-free.

• RoHS 2 compliant.

• 7/8" diameter.

• 10 turn wirewound.



Specification



Electrical Characteristics Nominal Resistance Range 100Ω-100KΩ
Resistance Tolerance ±5%
Independent Linearity ±0.5%
Effective Travel ≥3600°-10°
Terminal Resistance ≤0.2%R or 5Ω
Noise ≤3%R or 3Ω
Insulation Resistance R≥1GΩ
Withstand Voltage 101.3kPa 710V, 8.5kPa 470V
Environment Characteristics Rated Power 2W@+70℃, 0W@+125℃
Temperature Range -55℃~+125℃
Temperature Coefficient ±100ppm/℃
Temperature Variation ΔR≤2%R, Δ(Uab/Uac)≤±1%
Vibration 390m/s2, 4000cycles,R≤±1%R
Collision 10-500Hz, 0.75mm, or 98m/s2 , 6hΔR≤土1%R. Δ(Uab/Uac)≤±2%
Climate Category ΔR≤±3%R, R1≥100MΩ
Electrical Endurance At 70°C 2W, 1000h, ΔR≤±3%R
Mechanical Endurance 10000 cycles, ΔR≤±3%R
Steady Damp Heat ΔR≤±3%R, R1≥100MΩ
Physical Characteristics Total Mechanical Travel 3600°±10°
Starting Torque ≤36mN·m
Clutch Torque ≤300mN·m





Dimension



7286 1K 2K 5K 10K Ohm Precision Variable Potentiometer 4

7286 1K 2K 5K 10K Ohm Precision Variable Potentiometer 5





Packaging



Packaging specification: 25 pieces/plastic box, 50 pieces/box.



7286 1K 2K 5K 10K Ohm Precision Variable Potentiometer 6 7286 1K 2K 5K 10K Ohm Precision Variable Potentiometer 7



Applications


• Pedal position.
• Joystick controls.
• Valve control.
• Wind vane.
• Panel control.
• Test and measurement.
• Medical equipment.
• Angular position.



Advantage



• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
