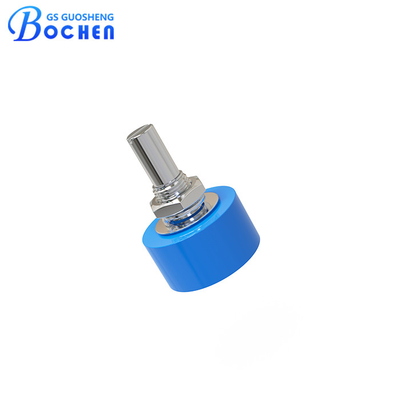

Bochen WI27 10k Ohm Single Turn Precision Rotary Variable Resistor Potentiometer

Products

Conductive Plastic Potentiometer

Bochen WI27 10k Ohm Single Turn Precision Rotary Variable Resistor Potentiometer

MOQ:	100 Pieces
Price:	$7.00 - $12.00/piece
Standard Packaging:	Standard Packing
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	3,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

Product Name:

WI27 1w 7/8" Bushing Mount Single Turn Conductive Plastic Potentiometer

Product Type:

Precision Rotary Potentiometer

Element Type:

Conductive Plastic

Mounting Style:

Panel Mount

Termination Style:

Solder Turret

Standard Resistance Range:

Resistance Tolerance:

±20% (±10% Can Be Customised)

Linearity (independent):

±2.0%(±1.0% Can Be Customised)

Power Rating:

1.0 W At 70 °C Derated To 0 W At 125 °C

Electrical Travel:

340° ± 3°

Minimum Order Quantity:

100 Pieces

Price:

$7.00 - $12.00/piece

Packaging Details:

Standard Packing

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight:

10k ohm Rotary Variable Resistor Potentiometer

Single Turn Rotary Variable Resistor Potentiometer

Bochen WI27 Rotary Variable Resistor Potentiometer

Product Description

Bochen WI27 10k ohm Single Turn Precision Rotary Variable Resistor Potentiometer

Quick Detail

• 7/8" diameter single turn.
• Compact size, advanced design technology.
• Offer a cost effective solution to your potentiometer requirements.
• Suitable model for all industrial applications.
• Conductive plastic element.
• Nominal resistance range 1 kΩ to 50 kΩ, tolerance 20%,10% can be customised.

• Power rating 1W at 70 °C.

• Linearity 2.0%, 1.0% can be customised.

Bochen WI27 10k Ohm Single Turn Precision Rotary Variable Resistor Potentiometer 0

Description

The WI27 Conductive Plastic Potentiometer is a high-quality, single-turn potentiometer designed for precise control in various applications. Featuring a compact 7/8" (22.2 mm) bushing mount type, this potentiometer is both versatile and easy to install. It offers a nominal resistance 5kΩ, with a power rating of 1 watt at 70°C. The resistance tolerance is ±20%, with the option to customize to ±10% for specific needs.

Bochen WI27 10k Ohm Single Turn Precision Rotary Variable Resistor Potentiometer 1

The WI27 potentiometer is engineered for accuracy, boasting an independent linearity of ±2.0%, which can be customized to ±1.0% for even greater precision. Its electrical travel is 340° ± 3°, ensuring smooth and reliable operation within its specified range. This conductive plastic potentiometer is ideal for applications requiring dependable and precise adjustments.

Bochen WI27 10k Ohm Single Turn Precision Rotary Variable Resistor Potentiometer 2

Specification

Electrical Characteristics	Standard Resistance Range	5 kΩ
	Resistance Tolerance	±20% (±10% can be customised)
	Linearity (independent)	±2.0%(±1.0% can be customised)
	Output Smoothness	0.1% maximum
	TCR	±600 ppm/°C maximum
	Power Rating	1.0 W at 70 °C derated to 0 W at 125 °C
	Electrical Travel	340° ± 3°
	End Voltage	0.5% maximum
	Dielectric Withstanding Voltage	1000 VRMS, 60 Hz
	Insulation Resistance	1000 MΩ, 500 VDC
Mechanical Characteristics	Rotation	360° continuous (optional mechanical stops 340° ± 3°)
	Mounting	3/8 - 32 UNEF - 2A
	Operating Torque Maximum	Starting and running 3.68 mNm (0.5 oz. - in)
	Shaft Tolerance Maximum Runout End play Radial play	0.13 mm (0.005") 0.25 mm (0.010") 0.13 mm (0.005")
	Weight	17.5 g (0.62 oz.)
Environmental Characteristics	Vibration	15 g, 10 Hz to 2000 Hz
	Shock	50 g
	Load Life	1000 h
	Storage Temperature Range	-55 °C to +125 °C
	Life	5 000 000 shaft revolutions
	Materials Housing Bushing Rear lid Shaft Terminals	Thermoplastic housing Brass, nickel plated Alumina Stainless stee Turret type, solder plated
	Bushing Mount Hardware Lockwasher Internal Tooth Panel Nut	Steel, nickel plated Brass nickel plated

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

Bochen WI27 10k Ohm Single Turn Precision Rotary Variable Resistor Potentiometer 3

Application

The WI27 conductive plastic potentiometer is a versatile component used in various applications due to its precision and reliability.

1. Industrial Automation
- Used in control systems for precise positioning and movement.
- Common in robotic arms and CNC machinery.

2. Automotive Industry
- Utilized in throttle position sensors, pedal position sensors, and steering angle sensors.
- Helps in achieving accurate control of engine and transmission systems.
3. Medical Equipment
- Employed in medical devices such as infusion pumps, ventilators, and imaging equipment.
- Ensures precise control and measurement of critical parameters.
4. Aerospace and Defense
- Used in flight control systems, navigation instruments, and weapon control systems.
- Provides reliable performance in harsh environments.
5. Consumer Electronics
- Found in audio equipment, gaming devices, and home automation systems.
- Enhances user interface with precise control over volume, tuning, and other settings.
6. Test and Measurement Equipment
- Integral to devices like oscilloscopes, signal generators, and multimeters.
- Ensures accurate measurement and calibration.
7. Renewable Energy Systems
- Applied in wind turbine control systems and solar tracking systems.
- Optimizes the efficiency of energy generation.
8. Marine and Offshore
- Used in navigation systems, engine control systems, and winch control.
- Ensures reliable operation in marine environments.

Bochen WI27 10k Ohm Single Turn Precision Rotary Variable Resistor Potentiometer 4

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
