TW1103ka Potentiometer 10k Rotary Wirewound Potentiometer wx118

Products

Conductive Plastic Potentiometer

TW1103ka Potentiometer 10k Rotary Wirewound Potentiometer wx118

MOQ:	100 Pieces
Price:	$0.87 - $2.00/Piece
Standard Packaging:	20 pieces/box,100 pieces/carton.
Delivery Period:	1-7 Workdays
Payment Method:	T/T,L/C,D/A,D/P,Western Union
Supply Capacity:	3,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

WX118

Product Name:

WX118 1w 5k Ohm 10% Precision Single Turn Wirewound Potentiometer With An 50mm Extend Shaft

Product Type:

Wirewound Potentiometer

Mounting Style:

Panel Mount

Element Type:

Wirewound

Termination Style:

Solder Lug

Nominal Resistance Range:

5Ω~22KΩ

Resistance Tolerance:

Rated Power:

1W At 40℃

Effective Travel:

265° ± 5°

Mechanical Travel:

285° ± 5°

Minimum Order Quantity:

100 Pieces

Price:

$0.87 - $2.00/Piece

Packaging Details:

20 pieces/box,100 pieces/carton.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T,L/C,D/A,D/P,Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight:

TW1103ka Wirewound Potentiometer

Rotary Wirewound Potentiometer

10k Wirewound Potentiometer

Product Description

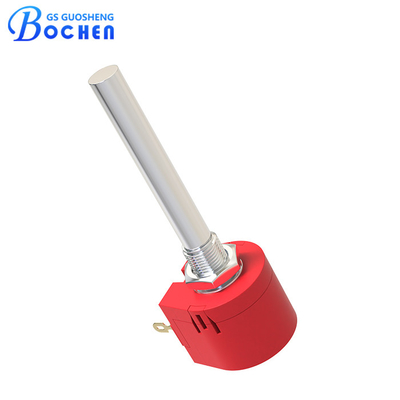

TW1103ka Potentiometer 10k Rotary Wirewound Potentiometer wx118

Description

The WX118 Wirewound Potentiometer by BOCHEN is a premium electronic component designed for precise resistance adjustment in demanding environments. Built with a high-precision wirewound resistive element, it offers exceptional stability, durability, and smooth operation, making it the ideal choice for professionals across various industries.

Features

✔ High Precision – Wirewound construction ensures consistent and accurate resistance adjustments
✔ Exceptional Stability – Reliable performance under varied environmental conditions
✔ Long-Lasting Durability – Withstands mechanical stress, wear, and extended operation
✔ Wide Resistance Range – Customizable resistance values to meet diverse application needs
✔ Smooth & Linear Operation – Enhances user experience and control accuracy
✔ High Power Rating – Handles higher power loads for industrial applications
✔ Low Noise – Minimizes electrical interference, ensuring clean signal output
✔ Compact & Space-Efficient Design – Optimized for tight installations without compromising performance

TW1103ka Potentiometer 10k Rotary Wirewound Potentiometer wx118 1

The WX118 Wirewound Potentiometer delivers top-tier quality and reliability, making it a preferred choice for engineers seeking high-performance and precision components.

Specification

Electrical Characteristics	Standard Resistance Range	50Ω~10KΩ
	Resistance Tolerance	±10%
	Linearity	0.25%
	Adjustment Angle	mech.258°±5°, elektr.270°±5°
	Terminal Resistance	2ΩMax
	Maximum Contact Current	100mA
	Resistance Law	A
	Insulation Resistance	More than 1000MΩ at DC500V
	Withstanding Voltage	AC1000V
Environment Characteristics	Welding	T≤260℃,t≤3s
	Power Rating(300 volts max.)	1W(70℃), 0W(125℃)
	Temperature Coefficient	±100ppm/℃
	Rotational Life	5,000 cycles without discontinuity
Physical Characteristics	Total Rotation Angle	300°±5°
	Starting Torque	35Ncm.
	Shaft Torque	3.5~100 mN.m
	Stop Strength	100Ncm.

Dimension

Packaging

Packaging specification: 20 pieces/box,100 pieces/carton.

Application

1. Audio Equipment

Used in amplifiers, equalizers, and mixers for volume and tone control
Provides low noise and smooth adjustments for high-fidelity audio performance

2. Electronic Instrumentation

Essential in oscilloscopes, signal generators, and measuring instruments
Allows for accurate calibration and resistance tuning

3. Communication Equipment

Adjusts frequency and signal strength in FM radios, transceivers, and broadcasting systems
Ensures stable and interference-free performance

4. Industrial Control Systems

Used in automation, sensor calibration, and actuator control
Provides precise resistance adjustments for enhanced operational efficiency

5. Automotive Electronics

Integrated into car audio, lighting control, and sensor systems
Ensures smooth and precise adjustments in automotive applications

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
