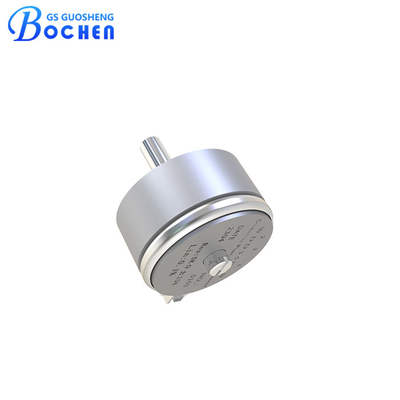

Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer

MOQ: 100 Pieces
Price: $9.00 - $20.00/piece
Standard Packaging: One piece per one inner box; 12pieces/a small box; 120pieces/middle box.
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, Reach
Model Number
WDD35D4B
Product Name:
WDD35D4B 5k Ohms 15% Lin 0.1% Conductive Plastic Potentiometer
Product Type:
Conductive Plastic Potentiometer
Nominal Resistance Range:
1KΩ~10KΩ
Resistance Tolerance:
±1%(precision)±15%(Standard)
Independent Linearity:
±0.1%(precision)±1%(Standard)
Effective Electrical Travel:
345°±2%
Rated Power:
70°C, 2W
Temperature Range:
-55 ℃ ~ +125 ℃
Temperature Coefficient:
±400 Ppm/°C
Total Mechanical Travel:
360°
Minimum Order Quantity:
100 Pieces
Price:
$9.00 - $20.00/piece
Packaging Details:
One piece per one inner box; 12pieces/a small box; 120pieces/middle box.
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

5k Conductive Plastic Potentiometer

,

Nidec Copal Conductive Plastic Potentiometer

,

0.3 Conductive Plastic Potentiometer

Product Description

Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer



Description



The WDD35D4B conductive plastic potentiometer delivers exceptional performance and long-term reliability in demanding industrial and electronic applications. Designed with high-quality conductive plastic and precision ball bearings, this economical yet high-performance solution offers smooth, friction-free operation and accurate angular position feedback.

Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer 0

Features



  • High-resolution angular position sensing

  • Conductive plastic resistive element

  • Economical and versatile design

  • Precision ball bearings for smooth rotation

  • Friction-free operation with low electrical noise

  • Customizable shaft styles (splined, knurled, slotted)

  • Wide operating temperature range: -55°C to +125°C

Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer 1

Specification



Electrical Characteristics Standard Resistance Range 1KΩ~10KΩ
Resistance Tolerance ±1%(precision)±15%(Standard)
Independent Linearity ±0.1%(precision)±1%(Standard)
Effective Electrical Travel 345°±2%(Customized angle is available)
Insulation Resistance ≥ 1000MΩ(500VD.C)
Dielectric Strength 1000V(AC.RMS)1min
Output Smoothness ≤±0.1%
Environment Characteristics Rated Power 70°C, 2W
Temperature Range -55 ℃ ~ +125 ℃
Temperature Coefficient ±400 ppm/°C
Vibration Dynamic 15G 2000 Hz
Mechanical Life 50,000,000 RPM
Shock 50G 11ms
Physical Characteristics Total Mechanical Travel 360° (endless)
Starting Torque ≤10*10^-4 N·M





Dimension



Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer 2





Packaging



Packaging specification: 1 piece / inner box, 12 pieces / small box, 120 pieces / middle box.



Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer 3



Applications



The WDD35D4B is ideal for applications requiring high precision and durability, including:

  • Industrial automation & machinery

  • Medical equipment

  • Robotic arms & servo control

  • Crane torque control

  • Valves & actuators

  • Pan-tilt mechanisms

  • Textile & paper machinery

  • Network communication & instrumentation



Why Choose Us



  • Direct factory supply — no middlemen

  • Certified quality: RoHS, REACH, and more

  • Large-scale production with fast delivery

  • Expert after-sales support

  • OEM & ODM customization available



Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer 4





Advantage



• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity , short delivery time.
• Professional after-sales service team.
• OEM & ODM available.



Product Catalog



Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer 5

Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer 6

Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer 7

Nidec Copal jc40s 5k 0.3 Conductive Plastic Potentiometer 8
