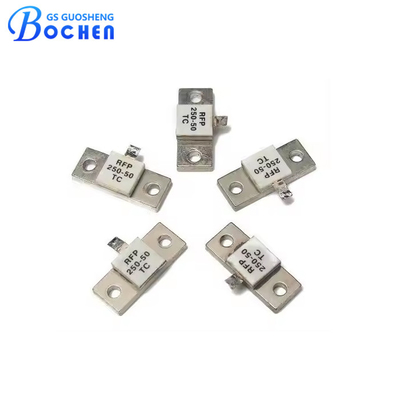

Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor

MOQ: 100 Pieces
Price: $0.98 - $1.80/Piece
Standard Packaging: Standard packing or according to customers requirements
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 1,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, REACH
Model Number
RIG22
Product Category:
RF Resistors
Power Rating:
1~1000W (70°C)
Resistance:
1Ω~500Ω
Tolerance:
5%
Termination Style:
SMD/SMT
Product Type:
High Frequency/RF Resistors
Temperature Range:
-55℃~+165℃
Minimum Order Quantity:
100 Pieces
Price:
$0.98 - $1.80/Piece
Packaging Details:
Standard packing or according to customers requirements
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
1,000,000 Pieces Per Month
Highlight:

Flange Mount High Power Resistor

,

800w High Power Resistor

,

50ohm High Power Resistor

Product Description

Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor​



Description



The RIG22 Series by BOCHEN is a high-performance, flameproof power resistor engineered for demanding power applications. Designed with a durable ceramic core and a flame-retardant coating, it ensures exceptional thermal conductivity, mechanical strength, and long-term electrical stability—even in high-load and high-temperature environments.

Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor 0

Features

  • Power Rating: Up to 1000W

  • Resistance Range: 1Ω – 500Ω

  • Tolerance Options: ±1%, ±5%, ±10%

  • TCR: ±300ppm/°C

  • Operating Temp.: -55°C to +165°C

  • Structure: Flameproof ceramic core construction

  • Mounting Type: SMD/SMT compatible

  • Certifications: RoHS & REACH Compliant

Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor 1

Specifications



Electrical Characteristics Nominal resistance range 1 ~ 500Ω
Resistance tolerance ±5%
Frequency range 0 ~ 2GHz
Standing wave ratio 1.2 ~ 1.3
Insulation resistance ≥ 1GΩ
Withstand voltage 500V / 1 mm (Substrate thickness)
Environmental Characteristics Rated power 1~1000W (at 70°C)
Temperature range -55°C ~ +165°C
TCR (Temperature Coefficient) ±300 × 10⁻⁶ /°C
Temperature shock (-55°C/+125°C, 3 times) ΔR ≤ ±5%R
Moisture proof (GJB306A-96 Method 106) ΔR ≤ ±5%R
Vibration (10–500Hz, 0.75mm, 6h) ΔR ≤ ±3%R, no mechanical damage
Low temp. test (-55°C, 24h) ΔR ≤ ±5%R
Load life (96h) ΔR ≤ ±5%R
Collision ΔR ≤ ±3%R
Physical Characteristics Terminal strength No loose and fall off
Solderability (240°C, 3s) Tin layer covering area ≥ 95%



Application

The RIG22 is built to excel in high-precision, high-reliability applications:

  • Power Supplies: Load and surge dissipation

  • Motor Drives & Braking Circuits

  • Inverters & Converters: High-voltage, high-frequency stability

  • Medical Devices: Diagnostic & imaging electronics

  • Test & Measurement Instruments

  • Automotive Systems: BMS, ECUs, power control

  • Lighting Ballasts & Voltage Regulators

  • Industrial Automation & PLCs

Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor 2

Why Choose BOCHEN RIG22?

  • Direct from Manufacturer — No middlemen, competitive pricing

  • Certifications Ready — RoHS, REACH, and ISO quality assurance

  • Fast Production — Scalable capacity and quick turnaround

  • Expert Support — Dedicated after-sales and technical assistance

  • OEM/ODM Services — Custom specifications available on request



Consistent Performance. Industrial Reliability.

Whether you’re developing power control systems, precision instruments, or high-reliability electronics, the RIG22 power resistor delivers the performance you need — with the durability you can trust.



Product Catalog



Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor 3

Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor 4

Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor 5
