RIG22 High Power Thick Film Resistor For RF Applications

Products

Conductive Plastic Potentiometer

RIG22 High Power Thick Film Resistor For RF Applications

MOQ:	100 Pieces
Price:	$0.98 - $1.80/Piece
Standard Packaging:	Standard packing or according to customers requirements
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	1,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, REACH

Model Number

RIG22

Product Category:

RF Resistors

Power Rating:

1~1000W (70°C)

Resistance:

1Ω~500Ω

Tolerance:

Termination Style:

SMD/SMT

Product Type:

High Frequency/RF Resistors

Temperature Range:

-55℃~+165℃

Minimum Order Quantity:

100 Pieces

Price:

$0.98 - $1.80/Piece

Packaging Details:

Standard packing or according to customers requirements

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

1,000,000 Pieces Per Month

Highlight:

Thick Film Resistor

RF Applications Resistor

High Power Thick Film Resistor

Product Description

RIG22 High Power Thick Film Resistor For RF Applications

Overview

The RIG22 series is a high-performance thick film resistor specifically engineered for RF and microwave applications. Designed with excellent high-frequency behavior, high power endurance, and outstanding environmental stability, RIG22 is the go-to solution for demanding systems where precision, consistency, and reliability are critical.

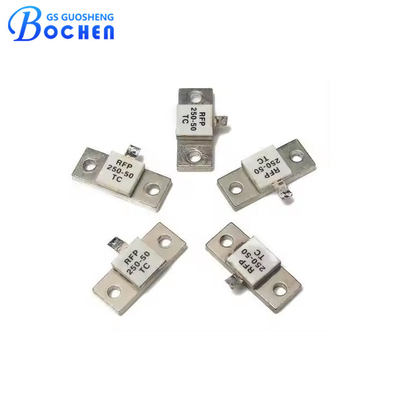

RIG22 High Power Thick Film Resistor For RF Applications 0

With rated power up to 1000W and a resistance range of 1Ω to 500Ω, this resistor delivers stable performance even under extreme operating conditions.

Features

Power rating up to 1000W.
1Ω to 500Ω wide resistance range.
Flameproof construction for enhanced safety.
Excellent long-term stability and environmental reliability.
Operating temperature: -55°C to +165°C.
Optimized for high-load and high-temperature environments.

Specifications

Electrical Characteristics	Nominal resistance range	1 ~ 500Ω
	Resistance tolerance	±5%
	Frequency range	0 ~ 2GHz
	Standing wave ratio	1.2 ~ 1.3
	Insulation resistance	≥ 1GΩ
	Withstand voltage	500V / 1 mm (Substrate thickness)
Environmental Characteristics	Rated power	1~1000W (at 70°C)
	Temperature range	-55°C ~ +165°C
	TCR (Temperature Coefficient)	±300 × 10⁻⁶ /°C
	Temperature shock (-55°C/+125°C, 3 times)	ΔR ≤ ±5%R
	Moisture proof (GJB306A-96 Method 106)	ΔR ≤ ±5%R
	Vibration (10–500Hz, 0.75mm, 6h)	ΔR ≤ ±3%R, no mechanical damage
	Low temp. test (-55°C, 24h)	ΔR ≤ ±5%R
	Load life (96h)	ΔR ≤ ±5%R
	Collision	ΔR ≤ ±3%R
Physical Characteristics	Terminal strength	No loose and fall off
Physical Characteristics	Solderability (240°C, 3s)	Tin layer covering area ≥ 95%

Applications

RF & microwave circuits
Radar and satellite communication systems
Power amplifiers and attenuators
Test and measurement instruments
Military and aerospace electronics
Industrial automation and instrumentation

RIG22 High Power Thick Film Resistor For RF Applications 2

Whether used in high-power RF systems or precision test equipment, the RIG22 provides consistent, dependable performance across a wide range of industries.

Why Choose Us

Factory-direct supply – No middlemen, better pricing.
Certified with RoHS, REACH, and more – Quality you can trust.
Fast lead time with strong production capacity.
Dedicated after-sales support and technical assistance.
OEM & ODM customization available.
