RIG High Power Rf 500W 100 Ohm Resistor

Products

Conductive Plastic Potentiometer

RIG High Power Rf 500W 100 Ohm Resistor

MOQ:	100 Pieces
Price:	$0.98 - $1.80/Piece
Standard Packaging:	Standard packing or according to customers requirements
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	1,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, REACH

Model Number

RIG22

Product Category:

RF Resistors

Power Rating:

1~1000W (70°C)

Resistance:

1Ω~500Ω

Tolerance:

Termination Style:

SMD/SMT

Product Type:

High Frequency/RF Resistors

Temperature Range:

-55℃~+165℃

Minimum Order Quantity:

100 Pieces

Price:

$0.98 - $1.80/Piece

Packaging Details:

Standard packing or according to customers requirements

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

1,000,000 Pieces Per Month

Highlight:

Rf High Power Resistor

100 ohm High Power Resistor

500W High Power Resistor

Product Description

RIG High Power Rf 500W 100 ohm Resistor

Overview

The RIG22 series is a high-performance thick film power resistor designed for RF and microwave applications. Engineered with excellent high-frequency characteristics and power endurance, it is ideal for environments that demand stability, precision, and reliability. With power ratings up to 1000W, wide resistance range, and excellent environmental resistance, RIG22 is suitable for critical systems where consistent performance is essential.

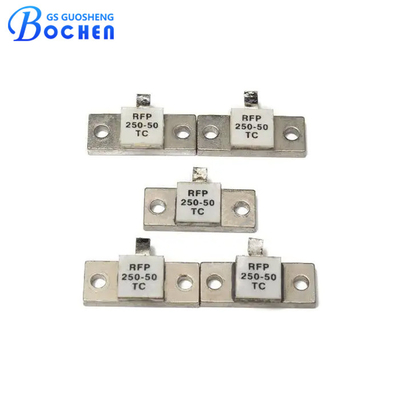

RIG High Power Rf 500W 100 Ohm Resistor 0
