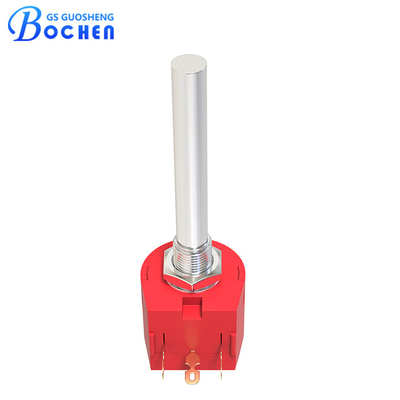

TW1502ka Wirewound Potentiometer Single Turn Long Metal Shaft Rotary Resistor

MOQ: 100 Pieces
Price: $0.87 - $2.00/Piece
Standard Packaging: 20 pieces/box,100 pieces/carton.
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, Reach
Model Number
WX118
Product Name:
WX118 1w 5k Ohm 10% Precision Single Turn Wirewound Potentiometer With An 50mm Extend Shaft
Product Type:
Wirewound Potentiometer
Mounting Style:
Panel Mount
Element Type:
Wirewound
Termination Style:
Solder Lug
Nominal Resistance Range:
5Ω~22KΩ
Resistance Tolerance:
10%
Rated Power:
1W At 40℃
Effective Travel:
265° ± 5°
Mechanical Travel:
285° ± 5°
Minimum Order Quantity:
100 Pieces
Price:
$0.87 - $2.00/Piece
Packaging Details:
20 pieces/box,100 pieces/carton.
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

Single Turn Wirewound Potentiometer

,

Rotary Resistor Wirewound Potentiometer

,

TW1502ka Wirewound Potentiometer

Product Description

TW1502ka Wirewound Potentiometer Single Turn Long Metal Shaft Rotary Resistor ​



Description


The WX118 Wirewound Potentiometer is a high-performance electronic component designed for precision resistance control in industrial, automotive, and electronic applications. Engineered with a wirewound resistive element, it provides exceptional accuracy, stability, and durability, ensuring long-term reliability even in demanding environments.


TW1502ka Wirewound Potentiometer Single Turn Long Metal Shaft Rotary Resistor 0

Key Features

✔ Superior Precision – Wirewound design ensures high accuracy and stable resistance adjustments
✔ Robust Stability – Reliable performance over long operational cycles and varied environmental conditions
✔ Long-Lasting Durability – Built to withstand mechanical wear and tear
✔ Smooth & Linear Adjustments – Enables precise control over resistance values
✔ Wide Resistance Range – Available in multiple resistance values, catering to diverse application needs
✔ Low Noise Performance – Reduces electrical interference, providing a clean signal output
✔ Compact & Efficient Design – Ideal for space-constrained applications


TW1502ka Wirewound Potentiometer Single Turn Long Metal Shaft Rotary Resistor 1
With its high power handling capability and superior control, the WX118 Wirewound Potentiometer is an industry-preferred solution for engineers seeking reliable and accurate components.


Specification



Electrical Characteristics Standard Resistance Range 50Ω~10KΩ
Resistance Tolerance ±10%
Linearity 0.25%
Adjustment Angle mech.258°±5°, elektr.270°±5°
Terminal Resistance 2ΩMax
Maximum Contact Current 100mA
Resistance Law A
Insulation Resistance More than 1000MΩ at DC500V
Withstanding Voltage AC1000V
Environment Characteristics Welding T≤260℃,t≤3s
Power Rating(300 volts max.) 1W(70℃), 0W(125℃)
Temperature Coefficient ±100ppm/℃
Rotational Life 5,000 cycles without discontinuity
Physical Characteristics Total Rotation Angle 300°±5°
Starting Torque 35Ncm.
Shaft Torque 3.5~100 mN.m
Stop Strength 100Ncm.




Dimension


TW1502ka Wirewound Potentiometer Single Turn Long Metal Shaft Rotary Resistor 2

Packaging


Packaging specification: 20 pieces/box,100 pieces/carton.



Applications



1. Industrial Automation & Control

  • Used in motor speed controllers, robotic systems, and automation equipment
  • Ensures precise positioning and voltage regulation

2. Audio & Sound Engineering

  • Volume, tone, and frequency adjustments in amplifiers, equalizers, and mixers
  • Offers low-noise, high-fidelity performance

3. Automotive & Transportation Systems

  • Integrated into vehicle control modules, sensor calibration, and lighting systems
  • Provides reliable adjustments for optimized performance

4. Electronic Instrumentation & Calibration

  • Used in oscilloscopes, signal generators, and measuring instruments
  • Guarantees accurate resistance tuning for precise measurements

5. Communication & Broadcasting

  • Essential for RF tuning, antenna impedance matching, and frequency control
  • Maintains stable and interference-free signal transmission

TW1502ka Wirewound Potentiometer Single Turn Long Metal Shaft Rotary Resistor 3

The WX118 Wirewound Potentiometer delivers industry-leading precision and reliability, making it an essential component for applications requiring fine-tuned resistance control and high durability.


Advantage


• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
