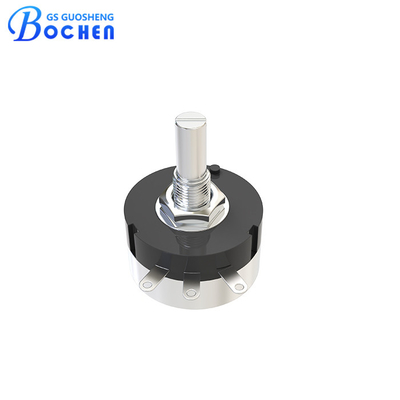

BOCHEN Precision Potentiometer RV30 100k Single Turn Panel Mount Carbon Film Resistor

BOCHEN Precision Potentiometer RV30 100k Single Turn Panel Mount Carbon Film Resistor

Quick Details

• 30mm diameter, single-turn potentiometer for industrial panel controls.
• Carbon film resistive element ensures precise resistance adjustments.
• Available in linear and audio tapers for different applications.
• Configurations: single, tandem, and triple units (single shaft); dual-unit models (dual shaft).
• SPST or SPDT switch options with 1A or 3A current rating.
• Shaft lock models for enhanced stability.
• Durable metal shaft and bushing for long-term performance.
• Panel mount design for secure installation.
• Right-angle ear-lug terminals ensure reliable connectivity.
• 6mm shaft diameter available in slot, flat, or round-end styles.
• Standard shaft lengths: 15mm or 20mm.

Description

The RV30 carbon rotary potentiometer is a high-precision and durable variable resistor designed for industrial panel controls. Featuring a 30mm diameter and single-turn operation, this component provides smooth and accurate resistance adjustments with a carbon film resistive element. Designed for stability and longevity, the RV30 incorporates a metal shaft and bushing, ensuring wear resistance and reliable performance. Its right-angle ear-lug terminals allow for secure and efficient connections, while the panel-mount design facilitates stable installation in a variety of applications.

With a standard resistance range from 100Ω to 2MΩ and a tolerance of ±10%, the RV30 offers flexibility in circuit design. It has a power rating of 0.6W at 40°C, making it ideal for moderate power applications. The potentiometer provides an adjustment angle of 280° ±10° and a mechanical travel of 300° ±5°, ensuring smooth and precise tuning. The 6mm diameter shaft is available in slot, flat, or round-end styles, with standard shaft lengths of 15mm or 20mm, catering to various design needs. The RV30 carbon rotary potentiometer is an essential component for precise control, making it a preferred choice in consumer electronics, industrial automation, automotive systems, medical devices, and telecommunications.

Specification

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

Packaging

Packaging specification: 1. 20PCS/Box; 200 PCS/1 box; 800PCS/CTN/4 box 2. 800PCS/25KG/67*35*30cm

Application

The RV30 carbon film potentiometer is a versatile component used in various industries due to its precision and reliability. Key application fields include:

1. Consumer Electronics:
- Volume and tone control in audio devices like amplifiers and radios.
- Brightness and contrast adjustment in TVs and monitors.
- User interface controls in household appliances.
2. Industrial Equipment:
- Precision control in instrumentation and measurement devices.
- Parameter adjustment in process control systems.
- Speed and torque control in motor drives and automation systems.
3. Automotive Systems:
- Dashboard controls for lighting and climate systems.
- Position sensing in throttle and brake systems.
- Adjustment in suspension and steering systems.
4. Medical Devices:
- Control parameters in diagnostic equipment.
- Settings adjustment in therapeutic devices.
- User interface controls in medical imaging systems.
5. Telecommunications:
- Signal level adjustment in communication equipment.
- Parameter tuning in network infrastructure devices.
- Control settings in broadcasting equipment.
6. Aerospace and Defense:
- Precision adjustment in avionics and navigation systems.
- Control parameters in communication and radar systems.
- User interface controls in military equipment.

The RV30 carbon film potentiometer's dependable performance and adaptability make it an essential component across these diverse application fields.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
