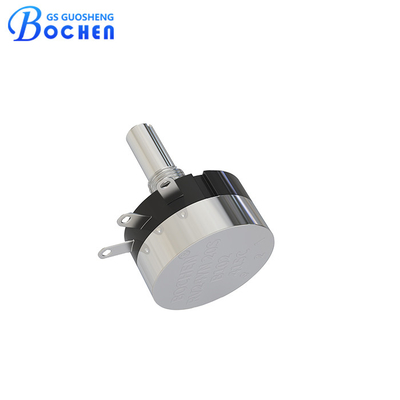

RV24yn20s b103 b203 b502 Potentiometer 100K Rotary Potentiometers Rheostats

RV24yn20s b103 b203 b502 Potentiometer 100K Rotary Potentiometers Rheostats

Features

• 24mm single-turn potentiometer designed for industrial panel control applications.
• Carbon film resistive element ensures stable and precise adjustments.
• Available in linear and audio tapers for different response characteristics.
• Offered in single, tandem, and triple configurations with a single shaft, or dual-unit models with dual shafts.
• Integrated SPST or SPDT switch with 1A or 3A current rating for added functionality.
• Shaft lock and center tap options for enhanced control.
• Durable metal shaft and bushing for long-term reliability.
• Panel mount design for secure installation.
• Right-angle ear-lug terminals for easy circuit integration.
• 6mm diameter shaft, available in slot, flat, or round end designs.
• Standard shaft lengths of 15mm or 20mm to suit various applications.

Description

The RV24 carbon film potentiometer is a high-performance variable resistor widely used in electronic circuits to control resistance and signal levels. Featuring a carbon film resistive element, it delivers smooth and consistent adjustments, ensuring reliable performance in diverse applications.

With an adjustment travel of 280° and a mechanical travel of 300°, the RV24 provides excellent linearity and stability, making it ideal for fine-tuning voltage, current, and signal parameters. Available in a broad resistance range from 50Ω to 2MΩ (±10% tolerance), it accommodates different circuit requirements with ease.

Designed for durability and ease of integration, the RV24 features a metal shaft and bushing, ensuring long-lasting operation even in demanding environments. Its compact panel-mount design and right-angle terminals make it suitable for space-constrained applications across various industries.

Specification

Dimension

Packaging

Packaging specification: 1. 20 pieces/box; 200 pieces/box; 800 pieces/carton/4 boxes 2. 800 pieces/25KG/67*35*30cm

Applications

The RV24 carbon film potentiometer is a versatile component with a wide range of applications across various industries. Some of the key application fields include:

1. Consumer Electronics:
• Volume and tone control in audio equipment such as amplifiers, radios, and home theater systems.
• Brightness and contrast adjustment in televisions and monitors.
• User interface controls in household appliances like ovens, washing machines, and air conditioners.

2. Industrial Equipment:
• Precision control in instrumentation and measurement devices.
• Adjustment of parameters in process control systems.
• Speed and torque control in motor drives and industrial automation systems.

3. Automotive Systems:
• Dashboard controls for lighting, climate control, and audio systems.
• Position sensing in throttle and brake systems.
• Adjustment of suspension and steering systems in advanced automotive applications.

4. Medical Devices:
• Control of parameters in diagnostic equipment such as ECG machines and blood pressure monitors.
• Adjustment of settings in therapeutic devices like infusion pumps and ventilators.
• User interface controls in medical imaging systems.

5. Telecommunications:
• Signal level adjustment in radio and communication equipment.
• Parameter tuning in network infrastructure devices like routers and switches.
• Control of settings in satellite and broadcasting equipment.

6. Aerospace and Defense:
• Precision adjustment in avionics and navigation systems.
• Control of parameters in communication and radar systems.
• User interface controls in military and defense equipment.

The RV24 carbon film potentiometer's reliability, precision, and durability make it an essential component in these diverse application fields, providing accurate and stable performance in various operating conditions.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
