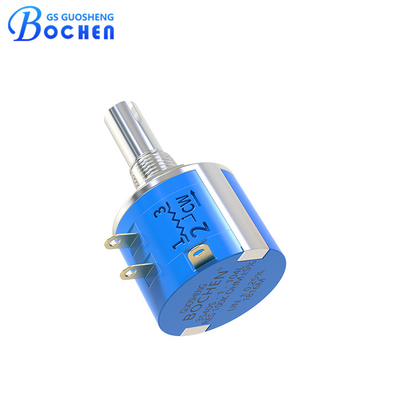

Single Gang Potentiometer 3540s-1-102 502 1k 5k 10k Precision Wirewound Potentiometer

Single Gang Potentiometer 3540s-1-102 502 1k 5k 10k Precision Wirewound Potentiometer

Feature

• Small size, 7/8” diameter.

• Wirewound element type.

• 10 turns wirewound, adjustable precision.

• Nominal resistance 2k ohms, tolerance 5%.

• High precision, independent linearity 0.25%.

• Effective electrical angle 3600°+10°, total mechanical angle 3600°+10°.

• Metal rotary shaft, slotted shaft type, rotary shaft lengths can be customised.

Description

The 3540S-1-202L is a compact, high-precision wirewound potentiometer with a 7/8” diameter, is designed for control applications where accuracy and high-reliability are critical. It features a 10-turn wirewound element, providing adjustable precision and a nominal resistance of 2k ohms with a tolerance of 5%. The potentiometer is equipped with a durable metal rotary shaft, featuring a slotted design, and the shaft lengths can be customized to meet specific needs. With an independent linearity of 0.25%, it ensures high accuracy in control applications.

The device can handle a power rating of 2W at 70℃, making it suitable for various demanding environments. Its effective electrical angle is 3600°+10°, and the total mechanical angle is also 3600°+10°, offering extensive adjustment capabilities.The 3540S-1-202L multiturn precision potentiometer is ideal for measuring linear distance, angles or rotations in production equipment, industrial test and measurement equipment, and medical equipment.

Specification

Dimension

Packaging

Packaging specification: 20 pieces/box, 50 pieces/box.

Application

• Industrial Control: Used for adjusting and controlling parameters in various industrial equipment, such as motor speed and temperature controllers.
• Audio Equipment: Employed in high-end audio devices for precise adjustment of volume, tone, and other audio parameters.
• Laboratory Equipment: Utilized in scientific experiments and measurement devices to provide accurate resistance adjustment.
• Medical Devices: Used in certain medical instruments for precise control and parameter adjustment.
• Aerospace: Applied in precision control systems within aerospace equipment.
• Communication Devices: Used in some communication equipment to adjust signal strength and other parameters.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
