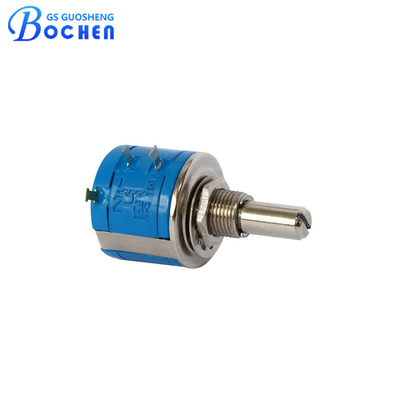

Bochen Multiturn Potentiometer 3540S-1-103l Wirewound Potentiometer

MOQ: 50 Pieces
Price: $0.98 - $1.80/Piece
Standard Packaging: 20 pieces/box, 50 pieces/box.
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, REACH
Model Number
3540
Product Name:
Bochen Multiturn Potentiometer 3540S-1-103l Wirewound Potentiometer
Element Type:
Wirewound
Termination Style:
Solder Lug
Mounting Style:
Panel Mount
Standard Resistance Range:
100Ω~100KΩ
Effective Travel:
±5%
Independent Linearity:
±0.25%
Rated Power:
2W
Temperature Range:
-55℃~+125℃
Temperature Coefficient:
±100ppm/℃
Minimum Order Quantity:
50 Pieces
Price:
$0.98 - $1.80/Piece
Packaging Details:
20 pieces/box, 50 pieces/box.
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

Bochen Multiturn Potentiometer

,

Wirewound Potentiometer 3540S-1-103l

,

3540S-1-103l Wirewound Potentiometer

Product Description

Bochen Multiturn Potentiometer 3540S-1-103l Wirewound Potentiometer

Description

The BOCHEN 3540 wirewound potentiometer is a high-precision component designed for demanding industrial and electronic applications. Featuring a robust wirewound construction, it delivers exceptional linearity and low noise performance, making it ideal for accurate voltage and signal adjustments. With a resistance range from 100 ohms to 100 kilo-ohms, the 3540 offers versatility to meet diverse application needs.



Bochen Multiturn Potentiometer 3540S-1-103l Wirewound Potentiometer 0



Rated for high power handling, the 3540 can dissipate several watts of power, ensuring reliable performance in moderate to high-power environments. It operates effectively across a wide temperature range of -55°C to +125°C, making it suitable for use in extreme conditions. Its low temperature coefficient of resistance (TCR) ensures stability and precision even under thermal variations.

Bochen Multiturn Potentiometer 3540S-1-103l Wirewound Potentiometer 1





The 3540 is built for durability, with robust materials and construction that guarantee a long operational lifespan. Customization options include shaft length, bushing mount types, and specific resistance values, allowing it to be tailored to unique requirements.



Bochen Multiturn Potentiometer 3540S-1-103l Wirewound Potentiometer 2

Features

• High Torque Operation: Ensures smooth and precise adjustments.
• Customizable Options: Shaft length, mounting types, and resistance values.
• Wide Resistance Range: 100 ohms to 100 kilo-ohms.
• High Power Handling: Capable of dissipating several watts.
• Extended Temperature Range: Operates from -55°C to +125°C.
• Low TCR: Ensures stability across temperature variations.
• RoHS Compliance: Environmentally friendly versions available.



Specification

Electrical Characteristics Standard Resistance Range 100Ω~100KΩ
Resistance Tolerance ±5%
Independent Linearity ±0.25%
Effective Electrical Travel ≥3600°-10°
Terminal Resistance ≤0.2%R or 5Ω
Noise ≤3%R or 3Ω
Insulation Resistance R≥1GΩ
Withstand Voltage 101.3kPa 710V, 8.5kPa 470V
Environment Characteristics Rated Power 2W@+70℃, 0W@+125℃
Temperature Range -55℃~+125℃
Temperature Coefficient ±100ppm/℃
Temperature Variation ΔR≤2%R, Δ(Uab/Uac)≤±1%
Vibration 390m/s2, 4000cycles, R≤±1%R
Collision 10-500Hz, 0.75mm, or 98m/s2 , 6hΔR≤土1%R.Δ(Uab/Uac)≤±2%
Climate Category ΔR≤±3%R, R1≥100MΩ
Electrical Endurance At 70°C 2W, 1000h, ΔR≤±3%R
Rotational Life 10000 cycles, ΔR≤±3%R
Steady Damp Heat ΔR≤±3%R, R1≥100MΩ
Physical Characteristics Total Mechanical Travel 3600°±10°
Starting Torque ≤36mN·m
Clutch Torque ≤300mN·m



Dimension

Bochen Multiturn Potentiometer 3540S-1-103l Wirewound Potentiometer 3



Packaging

Packaging specification:20 pieces/box, 50 pieces/box.

Bochen Multiturn Potentiometer 3540S-1-103l Wirewound Potentiometer 4

Applications

The BOCHEN 3540 is widely used in industries requiring precise control and reliability, including:
• Industrial Automation: Motor speed regulation and power supply adjustments.
• Audio Systems: Volume and tone control in professional audio equipment.
• Test and Measurement: Signal modulation in precision instruments.
• Automotive Electronics: Sensor calibration and power management.
• Medical Devices: Signal control in diagnostic and monitoring equipment.
• Aerospace and Defense: Angular position sensing and control systems.



Bochen Multiturn Potentiometer 3540S-1-103l Wirewound Potentiometer 5

Why Choose the BOCHEN 3540?

The BOCHEN 3540 combines precision, durability, and adaptability, making it a top choice for engineers and designers seeking reliable control solutions in demanding environments. Its robust construction, customizable features, and wide operating range ensure optimal performance across a variety of applications. Whether you're designing industrial control systems, medical devices, or automotive electronics, the BOCHEN 3540 delivers the precision and reliability you need to achieve exceptional results.
