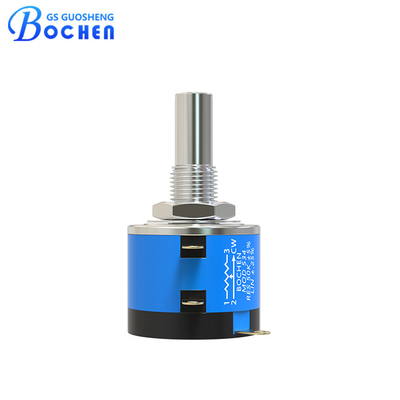

BOCHEN 534 5k Pd2310 Wirewound Potentiometer

MOQ: 50 Pieces
Price: $2.50 - $5.00/Piece
Standard Packaging: Standard packing or according to customers requirements
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, REACH
Model Number
534
Product Name:
BOCHEN 534 5k Pd2310 Wirewound Potentiometer
Product Type:
Wirewound Potentiometer
Termination Style:
Solder Lug
Nominal Resistance Range:
100Ω-100KΩ
Resistance Tolerance:
±5%
Effective Travel:
≥3600°-10°
Independent Linearity:
±0.25%
Rated Power:
2W@+70℃，0W@+125℃
Total Mechanical Travel:
3600°±10°
Temperature Coefficient:
±100ppm/℃
Minimum Order Quantity:
50 Pieces
Price:
$2.50 - $5.00/Piece
Packaging Details:
Standard packing or according to customers requirements
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

pd2310 Wirewound Potentiometer

,

5k Wirewound Potentiometer

,

BOCHEN Wirewound Potentiometer

Product Description

BOCHEN 534 5K Dd2310 Wirewound Potentiometer



Description



The 534 Wirewound Potentiometer is a versatile and high-precision component designed for various electronic applications. Featuring a 7/8" (22.2 mm) 10-turn wirewound configuration, this potentiometer offers exceptional accuracy and control. It is available in both bushing and servo mount designs, catering to different mounting requirements. The potentiometer boasts a linearity of ± 0.25%, ensuring precise and reliable performance.





BOCHEN 534 5k Pd2310 Wirewound Potentiometer 0





With a wide ohmic range from 100Ω to 100KΩ and a tolerance of 5%, the 534 Wirewound Potentiometer meets diverse circuit requirements. It includes rear shaft extensions and support bearings, providing enhanced stability and durability. Customised shaft sizes are available to fit specific application needs, and the potentiometer can be configured in a dual gang setup with concentric shafts for added flexibility.





BOCHEN 534 5k Pd2310 Wirewound Potentiometer 1





Additionally, the 534 model can be equipped with high torque, center tap, and slipping clutch features upon request, further expanding its versatility. This potentiometer is ideal for applications requiring precise resistance adjustments, making it a preferred choice for engineers and designers in fields such as telecommunications, industrial controls, and instrumentation.





BOCHEN 534 5k Pd2310 Wirewound Potentiometer 2





Specification



Electrical Characteristics Nominal Resistance Range 100Ω~100KΩ
Resistance Tolerance ±5%
Independent Linearity ±0.5%
Effective Travel ≥3600°-10°
Terminal Resistance ≤0.2%R or 5Ω
Noise ≤3%R or 3Ω
Insulation Resistance R≥1GΩ
Withstand Voltage 101.3kPa 710V, 8.5kPa 470V
Environment Characteristics Rated Power 2W@+70℃, 0W@+125℃
Temperature Range -55℃~+125℃
Temperature Coefficient ±100ppm/℃
Temperature Variation ΔR≤2%R, Δ(Uab/Uac)≤±1%
Vibration 390m/s2, 4000cycles, R≤±1%R
Collision 10-500Hz, 0.75mm, or 98m/s2 , 6hΔR≤土1%R.Δ(Uab/Uac)≤±2%
Climate Category ΔR≤±3%R, R1≥100MΩ
Electrical Endurance At 70°C 2W, 1000h, ΔR≤±3%R
Mechanical Endurance 10000 cycles, ΔR≤±3%R
Steady Damp Heat ΔR≤±3%R, R1≥100MΩ
Physical Characteristics Total Mechanical Travel 3600°±10°
Starting Torque ≤36mN·m
Clutch Torque ≤300mN·m



Dimension



BOCHEN 534 5k Pd2310 Wirewound Potentiometer 3



Packaging



Packaging specification: 25 pieces/plastic box , 50 pieces/box.



BOCHEN 534 5k Pd2310 Wirewound Potentiometer 4         BOCHEN 534 5k Pd2310 Wirewound Potentiometer 5





Application



• Appliance program selection.
• Thermostat adjustment.
• Timer and control relays.
• Consumer electronics.
• Power tool controls.
• Test and measurement equipment.



BOCHEN 534 5k Pd2310 Wirewound Potentiometer 6



Advantage



• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
