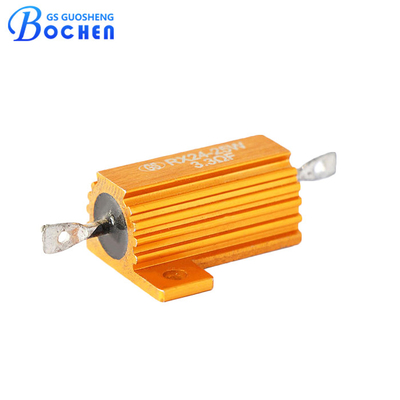

RX24 25W 100R Wirewound Resistor For Motor

MOQ: 50 Pieces
Price: $0.48 - $15.00/Piece
Standard Packaging: Standard packing or according to customers requirements
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, REACH
Model Number
RX24
Product Name:
RX24 25W 100R Wirewound Resistor
Product Type:
Wirewound Resistor
Termination Style:
Solder Lug
Mounting Style:
Chassis Mount
Resistance Range:
0.1Ω~50KΩ
Resistance Tolerance:
±1%, ±5%
Rated Power:
25W
Withstand Voltage:
AC1KV~AC2KV，50Hz/5s
Operating Voltage:
＜1KV
Minimum Order Quantity:
50 Pieces
Price:
$0.48 - $15.00/Piece
Packaging Details:
Standard packing or according to customers requirements
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

25W Wirewound Resistor

,

100R Wirewound Resistor

,

Motor Wirewound Resistor

Product Description

RX24 25W 100R Wirewound Resistor For Motor





RX24 25W 100R Wirewound Resistor For Motor 0



BOCHEN is one of the leading china suppliers of standard and custom designed aluminium housed resistors for general-purpose use, power supplies, power generation and the traction and drives industries. The RX Series product offering, a range of extremely stable, high-quality wire wound resistors are made from quality materials for optimum reliability and stability, capable of dissipating high power in a limited space with relatively low surface temperature. The aluminium housing in these resistors help rapidly dissipate power to a specified heat sink.





RX24 25W 100R Wirewound Resistor For Motor 1





Features:



• Established product with proven reliability leading the waywith over 20 years of design and manufacturing experience.
• 5 Watts to 500 Watts: Largest range on the market.
• Versatile product bench mark in wide range of industries.
• Custom designs, windings, terminations, mountingsavailable on request.
• Low resistance, low inductance and higher voltage versionsavailable specialising the standard.



RX24 25W 100R Wirewound Resistor For Motor 2





Specification:



Rated power at 25℃(W)

Resistance

Range (Ω)

Resistance

Tolerance (%)

 TCR
(×10-6/℃)		 Voltage (V)
With heatsink Without heatsink
5 3 0.01~1K ±1, ±5 ±100, ±50 1000
10 8 0.01~1.5K
20 12.5 0.01~10K
30 15 0.01~27K
50 20 0.01~33K
75 45 0.01~39K
100 50 0.01~51K 2000
150 55 0.01~56K
200 50 0.01~62K
250 60 0.01~68K
300 75 0.01~75K
500 200 0.01~82K





Dimension:



RX24 25W 100R Wirewound Resistor For Motor 3



Rated Power Dimension(mm)
L1±1 L2±1 L3±1 L4±1 A±1 B±1 C±1 D±0.3 E±0.3 H±1 h±1 T±0.2
RX24-5W 60 15 115 0 17 13 9.5 0.6 2.2 8 4 1.6
RX24-10W 65 20 14.5 0 23 16 11 0.7 3.5 10.5 5.2 2
RX24-25W 49 27 19 0 28 20 16 2 3.5 15.5 7 2
RX24-50W 70 50 39.5 0 28 21.5 16 2 3.5 15.5 7 2
RX24G-75W 90 70 39.5 0 28 21.5 16 2 3.5 15.5 7 2
RX24G-75W 100 66 36 0 48 37 27 4 5 26 13 3.5
RX24G-100W 130 98 71 35.5 48 37 27 4 5 26 13 3.5
RXG24G-150W 170 136 110 55 48 37 27 4 5 26 13 3.5
RXG24G-200W 190 155 126 63 48 37 27 4 5 26 13 3.5
RXG24G-200W 127 92 66 33 72 58 46 6 6 43 22.5 5
RXG24G-250W 147 112 86 43 72 58 46 6 6 43 22.5 5
RXG24G-300W 160 128 105 52 72 58 46 6 6 43 22.5 5
RXG24G-500W 230 200 175 87 72 58 46 6 6 43 22.5 5
RXG24G-800W 280 250 222 110 72 58 46 6 6 43 22.5 5
RXG24G-1000W 330 300 250 125 72 58 46 6 6 43 22.5 5





Application:



• Braking Resistor.
• Balancing Resistor.
• Capacitor Charging&Discharging.
• Crowbar.
• Filter.
• Electrical Machinery general use.
• Available through Distribution.

RX24 25W 100R Wirewound Resistor For Motor 4



Product Category:



RX24 25W 100R Wirewound Resistor For Motor 5



RX24 25W 100R Wirewound Resistor For Motor 6



RX24 25W 100R Wirewound Resistor For Motor 7



RX24 25W 100R Wirewound Resistor For Motor 8

Tags:

wire wound potentiometer,

variable wire wound resistor,

wire wound power resistor
