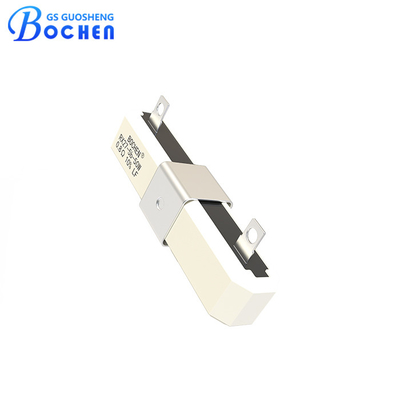

RX27 Wirewound Terminal Radial High Power Resistor With Mounting Bracket

Products

Conductive Plastic Potentiometer

RX27 Wirewound Terminal Radial High Power Resistor With Mounting Bracket

MOQ:	100 Pieces
Price:	$0.03 - $0.90/piece
Standard Packaging:	Standard Packing
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	3,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

Features:

Encased Resistors

Product Name:

RX27 Wirewound Radial Terminal High Power Resistor With Mounting Bracket

Product Type:

Wirewound Power Resistor

Termination Style:

Quick Connect

Mounting Style:

Chassis Mount

Power Rating:

10W ~ 50W

Nominal Resistance Range:

1Ω ~ 2KΩ

Resistance Tolerance:

±5%, ±10%

Temperature Coefficient:

±300 Ppm/°C

Temperature Range:

-55°C ~ +275°C

Minimum Order Quantity:

100 Pieces

Price:

$0.03 - $0.90/piece

Packaging Details:

Standard Packing

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight:

High Power radial resistor

Wirewound radial resistor

Wirewound resistor radial

Product Description

RX27 Wirewound Radial Terminal High Power Resistor With Mounting Bracket

Quick Detail:

• 10 to 50 watts.
• AEC-Q200 qualified.
• Flameproof case.
• RoHS compliant.

• High overload capability.

• Optional mounting bracket.

• Quick connect or soldered tag terminals.

• Special inorganic potting compound and ceramic case provide high thermal conductivity in a fireproof package.

Description:

The RX27 wirewound resistor series offers robust performance suitable for a wide range of applications, ranging from 10 to 50 watts of power handling capacity. These resistors are AEC-Q200 qualified, ensuring reliability and consistency in automotive and industrial environments. Featuring a flameproof case, they meet stringent safety standards and are RoHS compliant for environmental sustainability.

Designed for high overload capability, the RX27 series includes options for mounting brackets, providing flexibility in installation. Terminals are available in quick connect or soldered tag configurations, catering to diverse assembly requirements. Their special inorganic potting compound and ceramic case enhance thermal conductivity, ensuring effective heat dissipation while maintaining a fireproof package.

The RX27 wirewound resistors are engineered to deliver durability and performance, making them ideal for applications demanding reliability under challenging conditions.

Specification:

STANDARD ELECTRICAL SPECIFICATIONS
POWER RATING P40 °C(w)	RESISTANCE RANGE(Ω)	TOLERANCE ± %	WEIGHT (typical)
30	1 to 2K	5, 10	45
40	1 to 2K	5, 10	45
50	1 to 2K	5, 10	75

TECHNICAL SPECIFICATIONS
PARAMETER		UNIT	PC QUICK CONNECT CHARACTERISTICS
Temperature Coefficient		ppm/°C	±300
Short Time Overload		-	10 x rated power for 5s
Operating Temperature Range		°C	-55 ~ +275
Dielectric Withstanding Voltage		V_AC	1000
Maximum Continuous Working Voltage		V	(P x R)^1/2

Dimension:

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

RX27 Wirewound Terminal Radial High Power Resistor With Mounting Bracket 0

Application:

RX27 Wirewound Resistor widely used in power adapters, audio equipment, audio frequency dividers, instruments, meters, televisions, cars and other equipment.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
