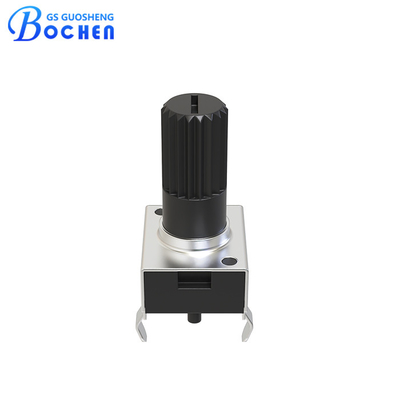

Industrial Carbon Film RV09 10k Rotary Potentiometer Vertical Adjustable Witn 12.5mm Shaft

Products

Conductive Plastic Potentiometer

Industrial Carbon Film RV09 10k Rotary Potentiometer Vertical Adjustable Witn 12.5mm Shaft

MOQ:	100 Pieces
Price:	$0.05 - $0.20/piece
Standard Packaging:	Standard Packing
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	3,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

Product Name:

RV09 Carbon Film Potentiometer

Product Type:

Single Turn Rotary Potentiometer

Mounting Style:

PCB Mount

Termination Style:

PC Pin

Element Type:

Carbon Film

Nominal Resistance Range:

5KΩ ~ 500KΩ

Resistance Tolerance:

Mechanical Angle:

280°±10°

Power Rating:

0.05W

Rotational Life:

10,000 Cycles

Minimum Order Quantity:

100 Pieces

Price:

$0.05 - $0.20/piece

Packaging Details:

Standard Packing

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight:

Industrial 10k rotary potentiometer

RV09 10k rotary potentiometer

RV09 industrial rotary potentiometer

Product Description

Industrial Carbon Film RV09 10k Rotary Potentiometer Vertical Adjustable Witn 12.5mm Shaft

Quick Detail

• Carbon element.
• Insulated shaft.
• Wide variety of mounting styles.
• Center detent option.
• RoHS compliant.

Description

The RV09 rotary potentiometer by BOCHEN is a premium component engineered for precision and durability in a wide range of electronic applications. This potentiometer features a carbon element that provides reliable and smooth performance, ensuring consistent adjustments. The single-turn rotary design allows for precise control, making it suitable for applications that require accurate tuning. Designed for through-hole mounting, the RV09 offers a robust and stable connection to circuit boards. Its vertical adjustment configuration facilitates easy access and fine-tuning, even in compact and confined spaces.

This potentiometer boasts a broad nominal resistance range, accommodating various circuit requirements with excellent tolerance. Rated for a specific power level, the RV09 ensures dependable operation across different electronic devices. With BOCHEN' reputation for quality and innovation, the RV09 rotary potentiometer is a trusted choice for engineers and designers seeking high-performance potentiometer solutions.

Specification

Electrical Characteristics	Taper	Linear, audio
	Standard Resistance Range	5KΩ ~ 500KΩ
	Standard Resistance Tolerance	±20%
	Residual Resistance	500 ohms or ±1% max
Environmental Characteristics	Operating Temperature	-10°C to +50°C
	Power Rating(Linear and Audio)	0.05 watt
	Maximum Operating Voltage (Linear and Audio)	20 VDC, 50 VAC
	Sliding Noise	100 mV max.
Mechanical Characteristics	Mechanical Angle	280° ±10°
	Rotational Torque	10 to 100 g-cm
	Detent Torque	20 to 200 gf-cm
	Stop Strength	2 kg-cm min.
	Rotational Life	10,000 cycles
	Soldering Condition	300°C max. within 3 seconds
	Hardware	One flat washer and one hex nut supplied with bushing version

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

Industrial Carbon Film RV09 10k Rotary Potentiometer Vertical Adjustable Witn 12.5mm Shaft 0
