WI27 Precision Conductive Plastic Rotary Potentiometer 10kb 1w 10k 20k 30k 40k Ohms

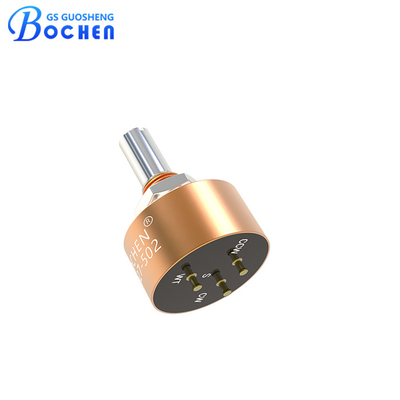

WI27 22mm 1w Precision Conductive Plastic Rotary Potentiometer

Quick Detail:

• Single turn.

• Bushing Mount Type.

• Nominal resistance range 10Ω~2MΩ.

• Power rating 1w at 70°C.

• Compact size, advanced design technology

• 7/8" (22.2 mm) Conductive Plastic Potentiometer.

Description:

The WI27 Conductive Plastic Potentiometer is a high-quality, single-turn potentiometer designed for precise control in various applications. Featuring a compact 7/8" (22.2 mm) bushing mount type, this potentiometer is both versatile and easy to install. It offers a nominal resistance range from 10Ω~2MΩ, with a power rating of 1 watt at 70°C. The resistance tolerance is ±10%, with the option to customize to ±10% for specific needs.

The WI27 potentiometer is engineered for accuracy, boasting an independent linearity of ±2.0%, which can be customized to ±1.0% for even greater precision. Its electrical travel is 340° ± 3°, ensuring smooth and reliable operation within its specified range. This conductive plastic potentiometer is ideal for applications requiring dependable and precise adjustments.

Specification:

Dimension:

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

Application:

The WI27 conductive plastic potentiometer is a versatile component used in various applications due to its precision and reliability.

1. Industrial Automation
 Used in control systems for precise positioning and movement.
 Common in robotic arms and CNC machinery.

2. Automotive Industry
 Utilized in throttle position sensors, pedal position sensors, and steering angle sensors.
 Helps in achieving accurate control of engine and transmission systems.
3. Medical Equipment
 Employed in medical devices such as infusion pumps, ventilators, and imaging equipment.
 Ensures precise control and measurement of critical parameters.
4. Aerospace and Defense
 Used in flight control systems, navigation instruments, and weapon control systems.
 Provides reliable performance in harsh environments.
5. Consumer Electronics
 Found in audio equipment, gaming devices, and home automation systems.
 Enhances user interface with precise control over volume, tuning, and other settings.
6. Test and Measurement Equipment
 Integral to devices like oscilloscopes, signal generators, and multimeters.
 Ensures accurate measurement and calibration.
7. Renewable Energy Systems
 Applied in wind turbine control systems and solar tracking systems.
 Optimizes the efficiency of energy generation.
8. Marine and Offshore
 Used in navigation systems, engine control systems, and winch control.
 Ensures reliable operation in marine environments.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
