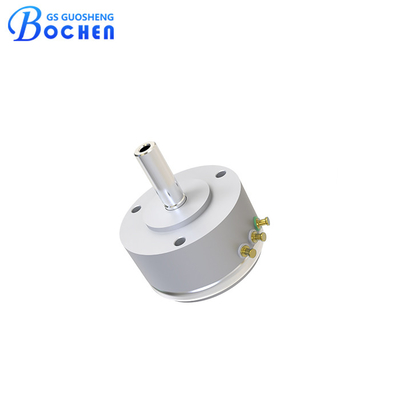

OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B

MOQ: 100 Pieces
Price: $9.00 - $20.00/piece
Standard Packaging: One piece per one inner box; 12pieces/a small box; 120pieces/middle box.
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, Reach
Model Number
WDD35D4B
Product Name:
WDD35D4B 5k Ohms 15% Lin 0.1% Conductive Plastic Potentiometer
Product Type:
Conductive Plastic Potentiometer
Nominal Resistance Range:
1KΩ~10KΩ
Resistance Tolerance:
±1%(precision)±15%(Standard)
Independent Linearity:
±0.1%(precision)±1%(Standard)
Effective Electrical Travel:
345°±2%
Rated Power:
70°C, 2W
Temperature Range:
-55 ℃ ~ +125 ℃
Temperature Coefficient:
±400 Ppm/°C
Total Mechanical Travel:
360°
Minimum Order Quantity:
100 Pieces
Price:
$9.00 - $20.00/piece
Packaging Details:
One piece per one inner box; 12pieces/a small box; 120pieces/middle box.
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

OEM Conductive Plastic Potentiometer

,

5 kOhm Conductive Plastic Potentiometer

,

OEM potentiometer 5 kohm

Product Description

WDD35D4B 5k Ohms 15% Lin 0.1% Conductive Plastic Potentiometer



Feature



• Conductive plastic.
• Economy version.
• Classicaltype,various specifications.
• With one couple of precision ball bearings.



Description



The WDD35D4B conductive plastic potentiometer is an advanced electronic component renowned for its precision and durability across a wide range of applications. Engineered with state-of-the-art materials and manufacturing techniques, it offers exceptional reliability and performance consistency in demanding environments.

OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B 0



Characterized by its high-resolution angular position sensing capabilities, the WDD35D4B ensures precise control over voltage or resistance levels, making it ideal for applications requiring accurate feedback and control. Its construction from durable conductive plastic materials enhances longevity and operational reliability, capable of withstanding challenging conditions without compromising performance. Designed for versatility, the WDD35D4B potentiometer supports various mechanical configurations and shaft styles, including splined, knurled, and slotted variants, to accommodate diverse application requirements. It maintains stable performance across a wide temperature range, ensuring reliable operation in both extreme cold and heat.

OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B 1



The potentiometer's friction-free design and low electrical noise characteristics contribute to smooth and responsive operation, critical for applications demanding precise motion control and signal accuracy. Its robust design and customizable options for resistance values further enhance its suitability across industrial automation, medical equipment, aerospace, defense, and consumer electronics sectors. In conclusion, the WDD35D4B conductive plastic potentiometer stands as a benchmark for reliability, precision, and versatility in electronic control applications, providing engineers with a dependable solution for achieving optimal performance and efficiency in their designs.



OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B 2



Specification



Electrical Characteristics Standard Resistance Range 1KΩ~10KΩ
Resistance Tolerance ±1%(precision)±15%(Standard)
Independent Linearity ±0.1%(precision)±1%(Standard)
Effective Electrical Travel 345°±2%(Customized angle is available)
Insulation Resistance ≥ 1000MΩ(500VD.C)
Dielectric Strength 1000V(AC.RMS)1min
Output Smoothness ≤±0.1%
Environment Characteristics Rated Power 70°C, 2W
Temperature Range -55 ℃ ~ +125 ℃
Temperature Coefficient ±400 ppm/°C
Vibration Dynamic 15G 2000 Hz
Mechanical Life 50,000,000 RPM
Shock 50G 11ms
Physical Characteristics Total Mechanical Travel 360° (endless)
Starting Torque ≤10*10^-4 N·M





Dimension



Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B 3





Packaging



Packaging specification: 1 piece / inner box, 12 pieces / small box, 120 pieces / middle box.



OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B 4

Application



• Network communication equipment.
• Instrument equipment.
• Industrial machinery equipment.
• Medical equipment.
• Injection molding machines.
• Crane torque control.
• Valves.
• Pedal testing.
• Robotic arms.
• Pan tilt control.
• Papermaking machinery.
• Textile machinery.



OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B 5



Advantage



• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity , short delivery time.
• Professional after-sales service team.
• OEM & ODM available.



Product Catalog



OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B 6

OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B 7

OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B 8

OEM 5 kOhm Conductive Plastic Potentiometer 15% Lin 0.1% WDD35D4B 9
