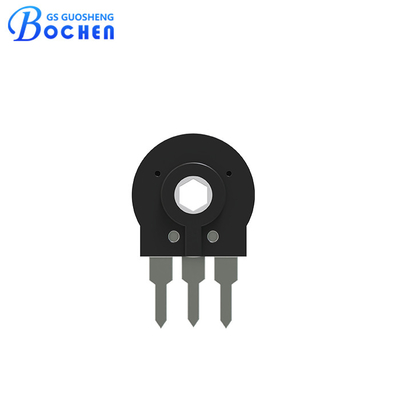

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer

Products

Conductive Plastic Potentiometer

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer

MOQ:	100 Pieces
Price:	$0.075 - $0.80/piece
Standard Packaging:	500 pieces/plastic bag; 2000 pieces/small carton; 10000 pieces/master carton.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	3,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

Product Name:

PT10 10mm Horizontal Adjustment Through Hole Cermet Trimmer Carbon Film Potentiometer

Product Type:

Single Turn Trimmer

Termination Style:

Through Hole

Adjustment:

Side Adjust

Element Type:

Carbon

Nominal Resistance Range:

100Ω To 5MΩ

Standard Resistance Tolerance:

± 20%

Nominal Power 50°C (122°F):

50°C, 0.15 W

Electrical Rotation Angle:

220° ± 20°

Mechanical Rotation Angle:

235° ± 5°

Minimum Order Quantity:

100 Pieces

Price:

$0.075 - $0.80/piece

Packaging Details:

500 pieces/plastic bag; 2000 pieces/small carton; 10000 pieces/master carton.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight:

10mm Carbon Film Potentiometer

Horizontal Carbon Film Potentiometer

Cermet horizontal potentiometer

Product Description

PT10 10mm Horizontal Adjustment Through Hole Cermet Trimmer Carbon Film Potentiometer

Quick Detail

• Excellent performance (up to 3% linearity).
• Carbon or cermet resistive element.
• Up to 16 mechanical detents for tactile feedback.
• Up to 100.000 life cycles.
• IP54 protection.
• Magazine packaging for automatic insertion available.
• Polyester / Alumina substrate.
• Wiper positioned at initial, 50% or fully clockwise.
• Loose and assembled shaft and knobs.
• Linear, logarithmic and antilogarithmic tapers.
• Self extinguishable plastic (UL 94V-0) available.
• SPDT switch and low torque version available.

Description

The PT10 carbon trimmer potentiometer is a versatile and robust component with a 10mm diameter, designed for precise resistance adjustments in various electronic circuits. It features a carbon element for reliable performance and long-term stability. The side adjustment design allows for easy and convenient tuning, while the through hole mounting ensures secure attachment to printed circuit boards (PCBs). The potentiometer offers a standard resistance range from 100Ω to 5MΩ with a tolerance of 20%. It has a power rating of 0.15 W at 50°C, making it suitable for low-power applications. The electrical rotation angle is 220° ± 20°, and the mechanical rotation angle is 235° ± 5°, providing accurate and smooth adjustments. Additionally, the PT10 operates efficiently in a temperature range from -25°C to +70°C, making it adaptable for use in various environmental conditions.

Specification

Electrical Specifications	Taper	Lin
	Standard Resistance Range	100Ω ≤ Rn ≤ 5MΩ
	Standard Resistance Tolerance	± 20%
	Max. Voltage	200 VDC
	Nominal power 50°C (122°F)	50°C, 0.15 W
	Residual resistance	≤ 0.5% Rn (5Ω min.)
	Equivalent noise resistance	≤ 3% Rn (3Ω min.)
	Operating temperature	-25°C to +70°C
Mechanical Specifications	Mechanical rotation angle	235° ± 5°
	Electrical rotation angle	220° ± 20°
	Rotational Torque	0.4 to 2 Ncm (0.6 to 2.7 in-oz)
	Stop Torque	> 5 Ncm (>7 in-oz)
	Push-pull force over the rotor	> 49N
	Life	Up to 100k cycles
Environmental Testing	Electrical life	1.000h at 50°C; 0.15W; ±5%
	Mechanical life	1000 cycles at 10 to 15 cpm; ±3 % (Rn < 1M )
	Temperature coefficient	–25°C; +70°C; ±300 ppm/°C (Rn < 100K)
	Thermal cycling	16h at 85°C and 2h at -25°C; ±2.5%
	Damp heat	500h at 40°C and 95% relative; ±5%
	Vibration	2h each plane at 10Hz - 55Hz; ±2%
	Storage	6 month at 23°C ±2°C and 50% RH; ±2.5%

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

H01-2.5mm

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer 0

H04-3.8mm

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer 1

H05-5mm

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer 2

H07-3.8mm

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer 3

Packaging

Packaging specification: 500 pieces/plastic bag; 2000 pieces/small carton; 10000 pieces/master carton.

Contact Now

Video

100 Ohms Carbon Film Potentiometer Single Turn Variable Resistor RM065 0.1W

Contact Now

PRODUCTS DETAILS

Products

Trimmer Potentiometer

Wirewound Potentiometer

Carbon Film Potentiometer

Wirewound Resistor

Conductive Plastic Potentiometer

Precision Potentiometer

Rotary Potentiometer

High Power Resistor

Braking Resistor

Ceramic Resistor

Potentiometer Knob

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer

MOQ:	100 Pieces
Price:	$0.075 - $0.80/piece
Standard Packaging:	500 pieces/plastic bag; 2000 pieces/small carton; 10000 pieces/master carton.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	3,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

PT10

Product Name:

PT10 10mm Horizontal Adjustment Through Hole Cermet Trimmer Carbon Film Potentiometer

Product Type:

Single Turn Trimmer

Termination Style:

Through Hole

Adjustment:

Side Adjust

Element Type:

Carbon

Nominal Resistance Range:

100Ω To 5MΩ

Standard Resistance Tolerance:

± 20%

Nominal Power 50°C (122°F):

50°C, 0.15 W

Electrical Rotation Angle:

220° ± 20°

Mechanical Rotation Angle:

235° ± 5°

Minimum Order Quantity:

100 Pieces

Price:

$0.075 - $0.80/piece

Packaging Details:

500 pieces/plastic bag; 2000 pieces/small carton; 10000 pieces/master carton.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight

10mm Carbon Film Potentiometer

Horizontal Carbon Film Potentiometer

Cermet horizontal potentiometer

Product Description

PT10 10mm Horizontal Adjustment Through Hole Cermet Trimmer Carbon Film Potentiometer

Quick Detail

Description

Specification

Electrical Specifications	Taper	Lin
	Standard Resistance Range	100Ω ≤ Rn ≤ 5MΩ
	Standard Resistance Tolerance	± 20%
	Max. Voltage	200 VDC
	Nominal power 50°C (122°F)	50°C, 0.15 W
	Residual resistance	≤ 0.5% Rn (5Ω min.)
	Equivalent noise resistance	≤ 3% Rn (3Ω min.)
	Operating temperature	-25°C to +70°C
Mechanical Specifications	Mechanical rotation angle	235° ± 5°
	Electrical rotation angle	220° ± 20°
	Rotational Torque	0.4 to 2 Ncm (0.6 to 2.7 in-oz)
	Stop Torque	> 5 Ncm (>7 in-oz)
	Push-pull force over the rotor	> 49N
	Life	Up to 100k cycles
Environmental Testing	Electrical life	1.000h at 50°C; 0.15W; ±5%
	Mechanical life	1000 cycles at 10 to 15 cpm; ±3 % (Rn < 1M )
	Temperature coefficient	–25°C; +70°C; ±300 ppm/°C (Rn < 100K)
	Thermal cycling	16h at 85°C and 2h at -25°C; ±2.5%
	Damp heat	500h at 40°C and 95% relative; ±5%
	Vibration	2h each plane at 10Hz - 55Hz; ±2%
	Storage	6 month at 23°C ±2°C and 50% RH; ±2.5%

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

H01-2.5mm

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer 0

H04-3.8mm

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer 1

H05-5mm

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer 2

H07-3.8mm

PT10 10mm Horizontal Carbon Film Potentiometer Through Hole Cermet trimmer 3

Packaging

Packaging specification: 500 pieces/plastic bag; 2000 pieces/small carton; 10000 pieces/master carton.

Application

• Appliance program selection.
• Thermostat adjustment.
• Timer and control relays.
• Consumer electronics.
• Power tool controls.
• Test and measurement equipment.

Advantage
