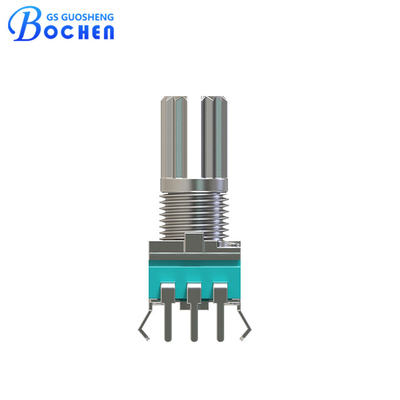

097NB B100K Ohm Variable Resistor Potentiometer Trimmer Pot For Electrical Devices

097NB B100K Ohm Variable Resistor Carbon Film Trimmer Potentiometer For Electrical Devices

Description

The 097NB Carbon Film Potentiometer is a versatile and reliable electronic component widely used in various analog circuit applications. It features a cylindrical shape with five terminals, designed primarily for adjusting and controlling resistance within a circuit.

Feature

• Carbon Film Technology: Utilizes a carbon film deposited on a ceramic substrate, providing stable and precise resistance characteristics.
• Adjustable Resistance: Offers adjustable resistance through a rotating shaft, allowing users to vary resistance levels smoothly.
• High Durability: Built to withstand frequent adjustment cycles and operating conditions, ensuring longevity and reliability.
• Compact Design: Space-efficient cylindrical form factor suitable for integration into densely packed electronic assemblies.

Specification

• Resistance Range: Typically ranges from 100 ohms to 1 megaohm, catering to a wide range of circuit requirements.
• Power Rating: Can handle power dissipation up to several watts, depending on the specific model.
• Tolerance: Standard tolerance levels range from ±5% to ±20%, ensuring consistent performance within specified parameters.
• Temperature Coefficient: Low temperature coefficient ensures minimal resistance variation over a wide temperature range.

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

Application

• Audio Equipment: Used for volume control and tone adjustment in amplifiers, radios, and audio mixers.
• Instrumentation: Employed in measurement devices and signal conditioning circuits for precise adjustment of sensor outputs.
• Control Systems: Integrated into industrial control panels and machinery for setting operational parameters.
• Consumer Electronics: Found in household appliances and electronic gadgets requiring variable resistance control.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
