Customized Vertical Mounting 10k Ohm Potentiometer Trimmer WH06-2C

MOQ: 100 Pieces
Price: $0.045 - $0.80/Piece
Standard Packaging: Standard Packing
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, Reach
Model Number
WH06-2C
Product Name:
WH06-2C Carbon Trimmer Potentiometer
Product Type:
Single Turn Trimmer
Element Type:
Carbon
Mounting Style:
PCB Mount
Nominal Resistance Range:
100Ω-2.2MΩ
Resistance Tolerance:
±30%
Rated Power:
0.1W
Electrical Angle:
200°±5°
Total Mechanical Angle:
240°±5°
Mechanical Endurance:
1000 Cycles
Minimum Order Quantity:
100 Pieces
Price:
$0.045 - $0.80/Piece
Packaging Details:
Standard Packing
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

Customized 10 ohm potentiometer

,

Vertical 10 ohm potentiometer

,

Vertical 10k trimmer potentiometer

Product Description

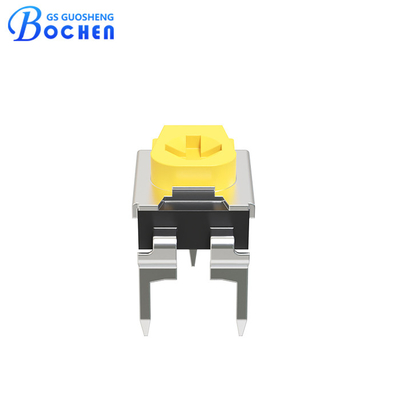

Customized Vertical Mounting 10k Ohm Potentiometer Trimmer WH06-2C




Quick Detail

• Carbon element.
• Single turn.
• Through hole mounting.
• Vertical adjustment.



Description

The WH06-2C carbon potentiometer is a precision component designed for a variety of electronic applications. Featuring a carbon element, this single-turn potentiometer is engineered for through-hole mounting, ensuring robust integration into circuit boards. The vertical adjustment mechanism allows for easy and accurate tuning. It offers a nominal resistance range from 100Ω to 2.2MΩ with a tolerance of 30%, making it versatile for different circuit requirements. The potentiometer is rated for a power of 0.1W, providing reliable performance in low-power applications. Its electrical angle is 200°±5°, while the total mechanical angle extends to 240°±5°, ensuring precise control and adjustment capabilities. This makes the WH06-2C an ideal choice for applications requiring fine-tuning and reliable performance.


Specification

Electrical Characteristics Rated Power 0.1W
Max Operation Voltage DC 50V
Nominal Resistance Range 100Ω~2.2MΩ
Resistance Tolerance ±30%
Electrical Angle 200°±5°
Residual Resistance R<1KΩ: Max20Ω
R≥1KΩ: Max2% R
Resistance Law A(lin),B(log),C(Alog)
Equivalent Noise Resistance ≤3%Rn(3Ωmin)
Soldering 235℃±5℃:≤3s
Mechanical Characteristics Rotational Totque 2~35m N.m
Total Mechanical Angle 240°±5°
Mechanical Endurance 1000 cycles
Shaft Stopper Strength ≥10N.m




Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.
Customized Vertical Mounting 10k Ohm Potentiometer Trimmer WH06-2C 0


Application

The WH06-2C carbon trimmer is applied in specific devices such as:



• Oscilloscopes: Used for fine-tuning the calibration and ensuring accurate signal measurement.
• Multimeters: Employed to adjust and calibrate voltage, current, and resistance measurements.
• Signal Generators: Utilized for precise adjustment of output signals to ensure accurate frequency and amplitude.
• Communication Transceivers: Applied in tuning and optimizing signal transmission and reception.
• Medical Imaging Equipment: Used in devices like MRI and CT scanners for calibration and ensuring precise imaging.
• Automotive ECUs (Electronic Control Units): Employed to adjust and calibrate various control parameters for optimal vehicle performance.
• Satellite Communication Systems: Used for fine-tuning signal transmission and reception parameters.
• Laboratory Test Equipment: Applied in various test and measurement devices for ensuring precise and reliable results.



Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.

Tags:

trimpot trimmer potentiometer,

potentiometer trimpot,

vertical potentiometer
