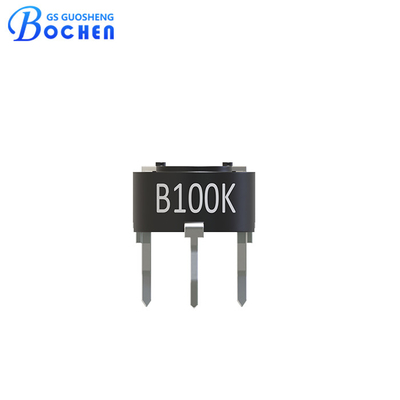

Product Name:

PT6 0.1w 220 Ohms To 5 Megohms 20% 6mm Carbon Through Hole Trimmer Resistor Potentiometer

Product Type:

Single Turn Trimmer Resistors

Element Type:

Carbon

Termination Style:

Through Hole

Adjustment Style:

Top Crossed Slot

Mounting Style:

PCB Mount

Nominal Resistance Range:

220 Ohms To 5 Megohms

Tolerance:

20%

Power Rating:

0.1W

Diameter:

6 Mm

Minimum Order Quantity:

100 Pieces

Price:

$0.13 - $0.16/piece

Packaging Details:

Bulk (1000 units per box); Magazine / Automatic Insertion (80 units per magazine).

Delivery Time:

1-7 Workdays

Payment Terms:

T/T,L/C,D/A,D/P,Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight:

220 Ohm vertical potentiometer

6mm vertical potentiometer

6mm trimpot trimmer potentiometer

Product Description

PT6 0.1w 220 Ohms To 5 Megohms 20% 6mm Carbon Through Hole Trimmer Resistor Potentiometer

Quick Detail

• Excellent performance.
• Carbon resistive element.
• Up to 10 mechanical detents.
• Up to 10.000 life cycles.
• IP54 protection.
• Magazines packaging for automatic insertion.
• Polyester substrate.
• Wiper positioned at initial, 50% or fully clockwise.
• Loose and assembled shaft and knobs.
• Linear, logarithmic and antilogarithmic tapers.
• SPDT switch function.

Description

The PT6 carbon trimmer potentiometer is a compact and reliable component with a 6mm diameter, designed for precise resistance adjustments in various electronic applications. It features a carbon element, ensuring stable and consistent performance. The potentiometer offers a standard resistance range from 220Ω to 5MΩ with a tolerance of 20%. It has a power rating of 0.1 W at 50°C, making it suitable for low-power applications. The electrical rotation angle is 200° ± 20°, while the mechanical rotation angle is 235° ± 5°, providing accurate and smooth adjustments. Additionally, the PT6 operates efficiently in a temperature range from -25°C to +70°C, making it versatile for use in different environmental conditions.

Specification

Electrical Specifications	Taper	Lin
	Standard Resistance Range	220Ω ≤ Rn ≤ 5MΩ
	Standard Resistance Tolerance	± 20%
	Max. Voltage	100 VDC
	Nominal power 50°C (122°F)	0.1 W
	Residual resistance	≤ 0.5% Rn (5Ω min.)
	Equivalent noise resistance	≤ 3% Rn (3Ω min.)
	Operating temperature	-25°C to +70°C
Mechanical Specifications	Mechanical rotation angle	235° ± 5°
	Electrical rotation angle	200° ± 20°
	Rotational Torque	0.2 to 2 Ncm (0.3 to 2.7 in-oz)
	Stop Torque	> 4 Ncm (>7 in-oz)
	Life	up to 10.000 cycles
Environmental Testing	Electrical life	1.000h at 50°C; 0.1 W; ±5%
	Mechanical life	1000 cycles at 10 to15 cpm; ±3% (Rn < 1M )
	Temperature coefficient	–25° C; +70° C; ±300 ppm/°C C (Rn < 100K)
	Thermal cycling	16h at 85°C and 2h at -25°C; ±2.5%
	Damp heat	500h at 40°C and 95% relative humidity (RH); ±5%
	Vibration	2h each plane at 10Hz - 55Hz; ±2%
	Storage	6 month at 23°C ±2°C and 50% RH; ±2.5%

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

220 Ohm 6mm Through Hole Vertical Potentiometer Trimpot Trimmer 0

220 Ohm 6mm Through Hole Vertical Potentiometer Trimpot Trimmer 1

Packaging

Packaging specification: Bulk (1000 units per box); Magazine / Automatic Insertion (80 units per magazine).

Application

• Appliance program selection.
• Thermostat adjustment.
• Timer and control relays.
• Consumer electronics.
• Power tool controls.
• Test and measurement equipment.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
