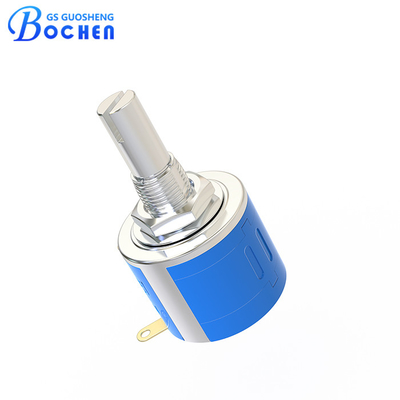

Bochen Precision 500k Multi Turn Potentiometer Rheostat 3540S-1-501L 500 Ohms

3540S-1-501L 500 Ohms 5% Lin 0.5% 10 Turns Precision Wirewound Rheostat Potentiometer

Quick Detail:

• 7/8” diameter.

• 10 turns wirewound.

• Nominal resistance 500 ohms.

• Resistance tolerance 5%.

• Independent linearity 0.25%.

• Power rating 2W at 70℃.

• Effective electrical travel ≥3600°-10°, total mechanical travel 3600°±10°.

• Metal shaft, sizes can be customised.

Description:

The 3540S-1-501L wirewound potentiometer is a high-precision component with a 7/8” diameter, designed for control applications where accuracy and high-reliability are critical. This potentiometer features a 10-turn wirewound mechanism, providing a nominal resistance of 500 ohms with a tolerance of 5%. It boasts an independent linearity of 0.25%, ensuring precise control in various settings. With a power rating of 2W at 70℃, it is suitable for demanding environments. The effective electrical travel is greater than or equal to 3600°-10°, while the total mechanical travel is 3600°±10°, offering extensive adjustment range. Additionally, it comes with a durable metal shaft, which can be customized to meet specific requirements, making it a versatile and reliable choice for precision applications.3540S-1-501L Multiturn Precision Potentiometers are ideal for measuring linear distance, angles or rotations in production equipment, industrial test and measurement equipment, and medical equipment.

Specification:

Dimension:

Packaging:

Packaging specification:20 pieces/box, 50 pieces/box.

Application:

• Industrial Control: Used for adjusting and controlling parameters in various industrial equipment, such as motor speed and temperature controllers.
• Audio Equipment: Employed in high-end audio devices for precise adjustment of volume, tone, and other audio parameters.
• Laboratory Equipment: Utilized in scientific experiments and measurement devices to provide accurate resistance adjustment.
• Medical Devices: Used in certain medical instruments for precise control and parameter adjustment.
• Aerospace: Applied in precision control systems within aerospace equipment.
• Communication Devices: Used in some communication equipment to adjust signal strength and other parameters.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
