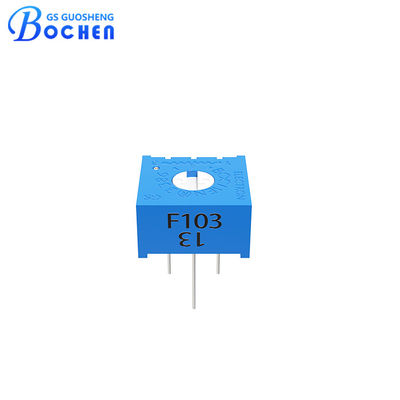

3386F 5K 10K 20K 50K Single Turn Cermet Trimpot Potentiometer

Products

Conductive Plastic Potentiometer

3386F 5K 10K 20K 50K Single Turn Cermet Trimpot Potentiometer

MOQ:	100 Pieces
Price:	$0.06 - $0.90/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3386F

Product Name:

3386F 0.5W Cermet Trimmer Potentiometer

Resistive Element:

Cermet

Mounting Style:

Through Hole

Adjustment Method:

Top Adjustment

Resistance Range:

10Ω~5MΩ

Resistance Tolerance:

±10%; ±20%

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Electrical Travel:

Rated Power(300 Volts Max.):

70℃, 0.5W；125℃, 0W

Total Mechanical Travel:

Minimum Order Quantity:

100 Pieces

Price:

$0.06 - $0.90/Piece

Packaging Details:

Standard Packing 50 Pieces/Tube

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

Single Turn 3386 trimpot

3386 trimpot Potentiometer

Single Turn 3386 potentiometer

Product Description

3386F 0.5W 1K 2K 5K 10K 20K 50K Single Turn Cermet Trimmer Potentiometer

Quick Detail:

• Cermet resistive material.
• Top adjustment style.
• Available with extended shaft.
• Through hole mounting method.
• PC pins terminal style.
• Wide ohms rang from 10 ohms to 5 megohms, tolerance 10%.
• Power rating 0.5w at 70℃.
• Adjustment angle 220°,mechanical angle 250°.
• Small size, fully sealed, high precision, adjustable accuracy, stable and reliable performance.

Description:

The 3386F cermet trimmer potentiometer is a high-precision component designed for optimal performance in various electronic applications. Featuring a durable cermet resistive material, this trimmer is built to last and provide stable, reliable performance over time. Its compact 3/8˝ square size and fully sealed design make it ideal for space-constrained environments and ensure protection against environmental factors.

Engineered with a top adjustment style, the 3386F allows for easy calibration and fine-tuning. It is also available with an extended shaft option for added versatility. The through-hole mounting method and PC pins terminal style facilitate straightforward integration into printed circuit boards.

This trimmer offers a wide resistance range, spanning from 10 ohms to 5 megohms, with a tolerance of 10%, suitable for a variety of precise adjustments. With a power rating of 0.5 watts at 70℃, it is capable of handling substantial electrical loads. The adjustment angle of 220° and a mechanical angle of 250° allow for precise control over the resistance setting.Overall, the 3386F cermet trimmer potentiometer is a high-precision, adjustable component known for its accuracy and reliability, making it a valuable addition to any electronic design requiring fine-tuned resistance control.

Specification:

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%; ±20%
	Terminal Resistance	≤±1%R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms min.
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength	500 Vac(1 Min.)
	Electrical Travel	220°
Environment Characteristics	Resistance to Solder Heat	250ºC for 10 Secs.
	Rated Power(300 volts max.)	70ºC, 0.5W; 125ºC, 0W
	Operating Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70ºC Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension:

Two terminal style:
3386F 5K 10K 20K 50K Single Turn Cermet Trimpot Potentiometer 0

Packaging:

Packaging specification: 50 pieces per tube.

Application:

• Calibration of Electronic Devices.
• Industrial Control.
• Medical Devices.
• Communication Equipment.
• Consumer Electronics.
• Aerospace.
• Automotive Electronics.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
