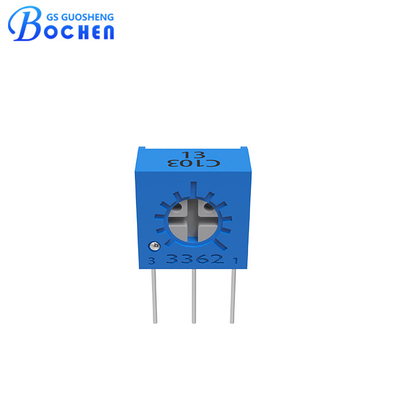

10 Ohms To 5 Megohms Cermet Trimmer Potentiometer 3362C Side Cross

Products

Conductive Plastic Potentiometer

10 Ohms To 5 Megohms Cermet Trimmer Potentiometer 3362C Side Cross

MOQ:	100 Pieces
Price:	$0.98 - $1.80/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3362C

Product Name:

3362C Cermet Trimmer Potentiometer

Resistance Range:

10Ω~5MΩ

Resistive Material:

Cermet

Size:

1/4" Square

Mounting Style:

Through Hole

Adjustment Method:

Side Cross

Resistance Tolerance:

Electrical Travel:

Rated Power(300 Volts Max.):

70℃，0.5W；125℃，0W

Total Mechanical Travel:

Minimum Order Quantity:

100 Pieces

Price:

$0.98 - $1.80/Piece

Packaging Details:

Standard Packing 50 Pieces/Tube

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

Side Cross Trimmer Potentiometer

3362C Trimmer Potentiometer

3362C cermet trimmer

Product Description

3362C 0.5w 10 Ohms To 5 Megohms 10% Tolerance Cermet Trimmer Potentiometer

Quick Detail

• Cermet resistive material.

• Single turn.

• Through hole.

• Horizontal adjustment orientation.

• 0.5W rated power.

• Wide ohms range 10 ohms to 5 megohms.

• Electrical travel 220°,total mechanical travel 250°.

• Rotor designed for automatic machine adjust interface.

• Withstands harsh environments and immersion cleaning process.

Description

The 3362C Cermet Trimmer, a pinnacle of precision engineering designed to elevate your electrical adjustments to unprecedented levels of accuracy and reliability. Crafted with the finest cermet resistive material, this trimmer ensures optimal stability and longevity, delivering consistent performance over time. With its single-turn functionality and through-hole mounting design, installation and operation are streamlined for seamless integration into your circuits. Its horizontal adjustment orientation offers intuitive control, while the 0.5W rated power ensures robust performance under demanding conditions.

With a wide ohms range spanning from 10 ohms to 5 megohms and a tolerance of 10%, this trimmer accommodates diverse resistance requirements with precision and accuracy. Featuring an electrical travel of 220° and a total mechanical travel of 250°, fine-tuning your settings has never been more effortless. Despite its compact size, this trimmer boasts high precision and adjustable precision, guaranteeing reliable and stable performance in any environment. The rotor is meticulously designed for automatic machine adjustment interface, enhancing efficiency and productivity. Engineered to withstand harsh environments and immersion cleaning processes, the 3362C trimmer ensures durability without compromising performance. Experience unparalleled precision and reliability with the 3362C Cermet Trimmer, where innovation meets excellence for your electrical needs.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%; ±20%
	Terminal Resistance	≤±1%R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms min.
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength	500 Vac(1 Min.)
	Electrical Travel	220°
Environment Characteristics	Resistance to Solder Heat	250℃ for 10 Secs.
	Rated Power(300 volts max.)	70℃, 0.5W; 125℃, 0W
	Operating Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

10 Ohms To 5 Megohms Cermet Trimmer Potentiometer 3362C Side Cross 0

Packaging

Packaging specification:50 pieces per tube.

Application

• Calibration of Electronic Devices.

• Industrial Control.

• Medical Devices.

• Communication Equipment.

• Consumer Electronics.

• Aerospace.

• Automotive Electronics.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
