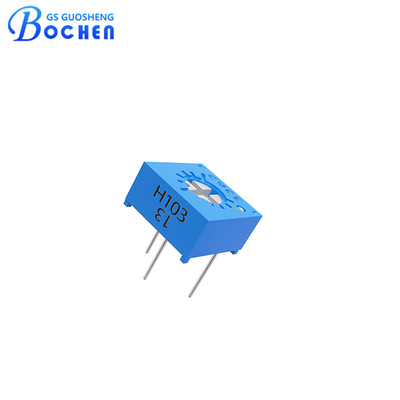

Top Adjustment Sealed Trimmer Potentiometer 100 Ohm Trimpot 3362H-1-103LF

Products

Conductive Plastic Potentiometer

Top Adjustment Sealed Trimmer Potentiometer 100 Ohm Trimpot 3362H-1-103LF

MOQ:	100 Pieces
Price:	$0.98 - $1.80/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3362H

Product Name:

3362H-1-103LF 10K Ohms 1/2W Top Adjustment Sealed Precision Cermet Trimmer Potentiometer

Nominal Resistance:

10k Ohms

Resistance Tolerance:

±10%; ±20%

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Electrical Travel:

Rated Power(300 Volts Max.):

70℃, 0.5W; 125℃, 0W

Operating Temperature Range:

-55°C ~ + 125°C

Rotational Life:

200 Cycles、ΔR≤±3%R

Total Mechanical Travel:

Resistance To Solder Heat:

250℃ For 10 Secs.

Minimum Order Quantity:

100 Pieces

Price:

$0.98 - $1.80/Piece

Packaging Details:

Standard Packing 50 Pieces/Tube

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

103LF Trimmer Potentiometer

3362H Trimmer Potentiometer

3362H 100 ohm trimpot

Product Description

3362H-1-103LF 10K Ohms 1/2W Top Adjustment Sealed Precision Cermet Trimmer Potentiometer

Feature:

• Single-turn / cermet element / fully sealed.

• Nominal resistance 10k ohms.

• Low contact resistance variation (≤3%R or 3Ω).

• Small size for optimum packaging density.

• Rotor designed for automatic machine adjust interface.

• Withstands harsh environments and immersion cleaning process.

• Power rating 0.5w at 70℃.

• Electrical trave 220° nominal,mechanical trave 250°.

• Rotational life 200 cycles.

Descritpion:

The 3362H-1-103LF cermet trimmer potentiometer is a single-turn, fully sealed component featuring a cermet element and designed for reliable performance in demanding applications. It offers a nominal resistance of 10K ohms and ensures low contact resistance variation (≤3%R or 3Ω), making it a precise and stable choice. With a power rating of 0.5W at 70℃, it provides dependable performance under various conditions. The potentiometer has an electrical travel of 220° nominal and a mechanical travel of 250°, coupled with a rotational life of 200 cycles, ensuring longevity and consistent performance.

Its compact size allows for optimum packaging density, making it suitable for space-constrained applications. The rotor is designed for compatibility with automatic machine adjustment interfaces, facilitating efficient and accurate tuning. Furthermore, the 3362H-1-103LF is built to withstand harsh environments and immersion cleaning processes, ensuring durability and reliability in a wide range of industrial and commercial applications.

Specification:

Electrical Characteristics	Nominal Resistance	10kohms
	Resistance Tolerance	±10% ；±20%
	Terminal Resistance	≤±1%R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms min.
	Withstand Voltage	101.3KPa,500 Vac；8.5KPa,250 Vac
	Dielectric Strength	500 Vac(1 Min.)
	Electrical Travel	220°
Environment Characteristics	Resistance to Solder Heat	250℃ for 10 Secs.
	Rated Power(300 volts max.)	70℃,0.5W；125℃,0W
	Operating Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles,ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension:

Top Adjustment Sealed Trimmer Potentiometer 100 Ohm Trimpot 3362H-1-103LF 0

Packaging:

Packaging specification: 50 pieces per tube.

Application:

• Calibration of Electronic Devices.

• Industrial Control.

• Medical Devices.

• Communication Equipment.

• Consumer Electronics.

• Aerospace.

• Automotive Electronics.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
