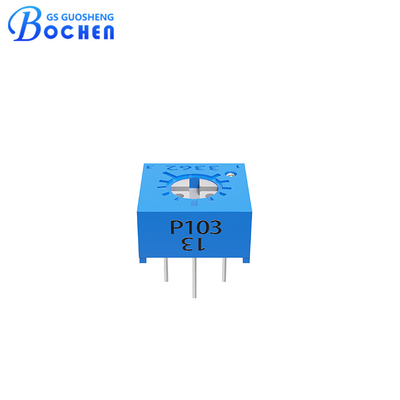

3362P 103 10k Trimmer Potentiometer Adjustable Resistor 1/4˝ Square

Products

Conductive Plastic Potentiometer

3362P 103 10k Trimmer Potentiometer Adjustable Resistor 1/4˝ Square

MOQ:	100 Pieces
Price:	$0.045 - $0.80/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3362P

Product Name:

3362P 103 10k Adjustable Resistor 1/4˝ Square Single Turn Cermet Trimmer With Long Shaft

Resistance Range:

10Ω-5MΩ

Resistance Tolerance:

±10% ；±20%

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Electrical Travel:

Rated Power(300 Volts Max.):

70℃，0.5W；125℃，0W

Total Mechanical Travel:

Rotational Life:

200 Cycles、ΔR≤±3%R

Adjustment Method:

A Extended Shaft

Temperature Range:

-55°C ~ + 125°C

Minimum Order Quantity:

100 Pieces

Price:

$0.045 - $0.80/Piece

Packaging Details:

Standard Packing 50 Pieces/Tube

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

3362P Trimmer Potentiometer

103 Trimmer Potentiometer

Adjustable potentiometer 10k trimpot

Product Description

3362P 103 10k Adjustable Resistor 1/4˝ Square Single Turn Cermet Trimmer With Extended Shaft

Festure

• Top adjustment with a extended shaft.

• Wide ohmic range 10 ohms to 5 megohms.

• 1/4” square/single turn/cermet element/fully sealed.

• Through hole mounting.

• Contact resistance variation (CRV) ≤3%R or 3Ω.

• Electrical travel 220°, total mechanical travel 250°.

• Rotational life 200 cycles, ΔR≤±3%R.

• Operating Temperature Range -55°C ~ + 125°C.

Description

The 3362P cermet trimmer potentiometer is a versatile and durable component, measuring 1/4” square and featuring a single-turn cermet element that is fully sealed for enhanced reliability. It is designed for top adjustment with an extended shaft, offering a wide ohmic range from 10 ohms to 5 megohms. The contact resistance variation (CRV) is kept to ≤3%R or 3Ω, ensuring consistent performance. With an electrical travel of 220° and a total mechanical travel of 250°, it provides precise control. The potentiometer boasts a rotational life of 200 cycles with a resistance change (ΔR) of ≤±3%R, operating effectively across a temperature range of -55°C to +125°C. It supports through-hole mounting, making it easy to integrate into various circuits. This trimmer is widely used in electronic equipment, industrial automation, communication equipment, aerospace, medical equipment, and other fields, thanks to its high precision and stable performance.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%；±20%
	Terminal Resistance	≤±1%R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms min.
	Withstand Voltage	101.3KPa,500 Vac；8.5KPa,250 Vac
	Dielectric Strength	500 Vac(1 Min.)
	Electrical Travel	220°
Environment Characteristics	Resistance to Solder Heat	250℃ for 10 Secs.
	Rated Power(300 volts max.)	70℃, 0.5W; 125℃,0W
	Operating Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

3362P 103 10k Trimmer Potentiometer Adjustable Resistor 1/4˝ Square 0

Packaging

Packaging specification: 50 pieces per tube.

Applications

• Any application requiring adjustability or calibration.
• Medical.
• Consumer electronics.
• Air conditioners.
• Food processors.
• Smoke detectors.
• Dishwaters.
• Computer monitors.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
