3329X-1-104LF 50k 100k Ohms Trimpot Trimmer Potentiometer Side Adjustment

Products

Conductive Plastic Potentiometer

3329X-1-104LF 50k 100k Ohms Trimpot Trimmer Potentiometer Side Adjustment

MOQ:	100 Pieces
Price:	$0.085 - $0.90/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3329X

Product Name:

3329X Cermet Trimmer Potentiometer

Nominal Resistance:

10Ω~5MΩ

Resistance Tolerance:

±10%; ±20%

Terminal Resistance:

≤±1% R Or 3Ω

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Electrical Travel:

Rated Power(300 Volts Max.):

70℃，0.5W；125℃，0W

Rotational Life:

200 Cycles、ΔR≤±3%R

Total Mechanical Travel:

Temperature Range:

-55°C ~ + 125°C

Highlight:

Side Adjustment trimpot trimmer potentiometer

100k Ohm trimpot trimmer potentiometer

Side Adjustment trimmer 50k ohm

Product Description

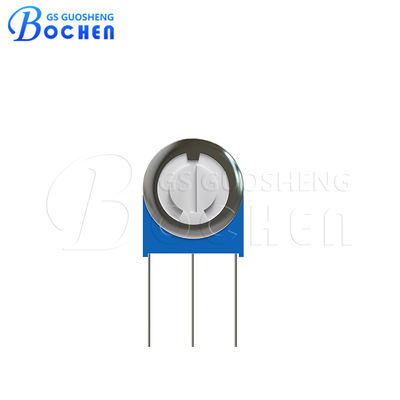

3329X-1-104LF 100k Ohms Side Adjustment Round Single Turn Cermet Trimmer

Feature

● Side adjustment.

● 0.5W at 70℃.

● 1/4˝ round single turn cermet trimmer.

● RoHS compliant version available.

● Wide resistance range from 10Ω-5MΩ,resistance tolerance ±10% or ±20%.

● 220° electrical travel,250° total mechanical travel.

● Rotational life 200 cycles.

● Temperature Range -55°C to 125°C.

Description

The 3329X trimmer potentiometer is a 1/4˝ round single turn cermet trimmer passive component designed for precise resistance adjustments in electronic circuits. Featuring side adjustment, this potentiometer offers convenient access for calibration and fine-tuning. With a power rating of 0.5W at 70℃, it ensures reliable performance under moderate operating conditions. The 1/4˝ round single turn cermet trimmer construction ensures durability and accuracy. Additionally, it comes in a RoHS compliant version, aligning with environmental standards. The wide resistance range from 10Ω to 5MΩ, along with resistance tolerance options of ±10% or ±20%, caters to diverse circuit requirements. Its 220° electrical travel and 250° total mechanical travel enable precise adjustments. With a rotational life of 200 cycles and a temperature range from -55°C to 125°C, this potentiometer offers longevity and reliability even in challenging environments.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%; ±20%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms min.
	Withstand Voltage	101.3KPa,500 Vac；8.5KPa,250 Vac
	Dielectric Strength	500 Vac(1Min.)
	Electrical Travel	220°
Environment Characteristics	Weld Heat Resistance	250℃ ,10 Secs.
	Rated Power(300 volts max.)	70℃,0.5W；125℃,0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles,ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

3329X-1-104LF 50k 100k Ohms Trimpot Trimmer Potentiometer Side Adjustment 0

Packaging

packaging specification: 50 pieces per tube.

3329X-1-104LF 50k 100k Ohms Trimpot Trimmer Potentiometer Side Adjustment 1

Application

The 3329X cermet trimmer potentiometer is utilized in a variety of devices and industries where precise electrical resistance adjustment is crucial. Its applications span across:

• Consumer Electronics: Used in devices like TVs, audio equipment, and home appliances where adjustable resistance is needed for tuning and calibration.

• Telecommunications: Found in communication devices and equipment such as radios, transceivers, and antennas for tuning and signal adjustment.

• Industrial Automation: Integrated into control systems and machinery for precise resistance settings in sensors, actuators, and automation components.

• Medical Instruments: Applied in medical equipment and devices requiring accurate resistance control, such as patient monitoring systems and diagnostic tools.

• Automotive Electronics: Used in vehicle electronics for applications like dashboard controls, audio systems, and engine sensors.

• Test and Measurement Instruments: Found in instruments such as multimeters, oscilloscopes, and spectrum analyzers where calibration and fine adjustment of circuits are essential.

• Aerospace and Defense: Utilized in electronic systems and communication modules for aircraft, satellites, and defense applications where reliability and precision are critical.

The 3329X cermet trimmer potentiometer is valued for its durability, stability, and ability to maintain precise resistance settings, making it suitable for a wide range of demanding applications across various industries.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.

Tags:

single turn trimmer,

smd trimmer potentiometer,
