3323W 0.5W side adjustment 3323W-1-103 cermet Trimmer trimming Potentiometer

Products

Conductive Plastic Potentiometer

3323W 0.5W side adjustment 3323W-1-103 cermet Trimmer trimming Potentiometer

MOQ:	100 Pieces
Price:	$0.085 - $0.90/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3323W

Product Name:

3323W Cermet Trimmer Potentiometer

Resistance Range:

10Ω~5MΩ

Resistance Tolerance:

±10%; ±20%

Terminal Resistance:

≤±1%R Or 3Ω

Electrical Travel:

Rated Power(300 Volts Max.):

70℃, 0.5W; 125℃, 0W

Rotational Life:

200 Cycles, ΔR≤±3%R

Total Mechanical Travel:

Temperature Range:

-55°C ~ + 125°C

Temperature Variation:

ΔR≤±3%R, Δ(Uab/Uac）≤±1%

Minimum Order Quantity:

100 Pieces

Price:

$0.085 - $0.90/Piece

Packaging Details:

Standard Packing 50 Pieces/Tube

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

cermet Trimmer Potentiometer

0.5W Trimmer Potentiometer

3323W Trimmer Potentiometer

Product Description

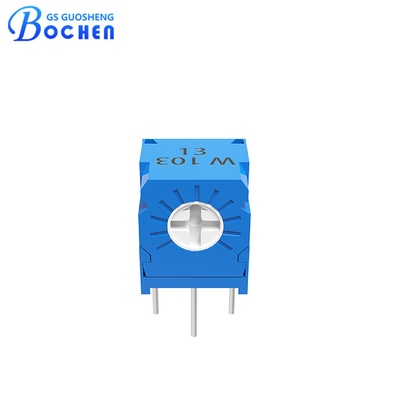

3323W 0.5W Side Adjustment 3323W-1-103 Cermet Trimmer Trimming Potentiometer

Quick Detail

• 0.5W at 70℃.

• Side adjustment.

• Adjustment Angle 220°, mechanical angle 250°.

• Operating temperature range -55 °C to +125 °C.

• Small size, fully sealed, stable and reliable performance.

• Wide ohmic range from 10Ω to 5MΩ, tolerance ±10% or ±20%.

• Cermet resistive element ensure excellent operational stability.

Description

The 3323W trimmer potentiometer is a cermet trimmer passive component widely used in electronic circuits for precise resistance adjustment. With a power rating of 0.5W at 70℃, it offers reliable performance even under demanding conditions. Its side adjustment feature allows for convenient tuning, while the wide adjustment angle of 220° ensures fine control. Operating within a temperature range of -55°C to +155°C, this potentiometer is suitable for diverse environments. Its compact size and fully sealed design enhance durability and stability. Offering a wide ohmic range from 10Ω to 5MΩ with tolerances of ±10%, it caters to various circuit requirements. Additionally, the cermet resistive element ensures excellent operational stability, making it a preferred choice in electronic applications.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω-5MΩ
	Resistance Tolerance	±10% ; ±20%
	Terminal Resistance	≤±1%R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms Min.
	Withstand Voltage	101.3KPa,500 Vac；8.5KPa,250 Vac
	Dielectric Strength	500 Vac(1 Min.)
	Electrical Travel	220°
Environment Characteristics	Weld Heat Resistance	250℃ , 10 Secs.
	Rated Power(300 volts max.)	70℃,0.5W；125℃,0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles,ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

3323W 0.5W side adjustment 3323W-1-103 cermet Trimmer trimming Potentiometer 0

Packaging

packaging specification: 50 pieces per tube.

3323W 0.5W side adjustment 3323W-1-103 cermet Trimmer trimming Potentiometer 1

Application

• Precision Instrumentation:
Calibration Devices: Fine-tuning measurement instruments for accurate readings.
Laboratory Equipment: Adjusting parameters in analytical devices for precise results.

• Consumer Electronics:
Audio Systems: Adjusting volume and tone controls for high-fidelity sound.
Home Entertainment: Calibration of display and sound settings in TVs and home theaters.

• Medical Equipment:
Portable Monitors: Fine-tuning sensors in portable patient monitoring devices.
Diagnostic Tools: Ensuring accurate calibration in devices like ECG and blood pressure monitors.

• Automotive Systems:
Engine Management: Adjusting sensor inputs for optimal engine performance.
Dashboard Electronics: Calibrating gauges and displays for accurate information.

• Telecommunication Devices:
Signal Processing: Tuning RF circuits for clear communication signals.
Network Hardware: Adjusting performance settings in routers and modems.

• Industrial Controls:
Automation Systems: Fine-tuning control parameters in automated machinery.
Sensor Calibration: Ensuring accurate readings in various industrial sensors.

• Aerospace Technology:
Navigation Systems: Adjusting parameters for precise navigation and control.
Communication Equipment: Ensuring reliable operation of communication systems.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
