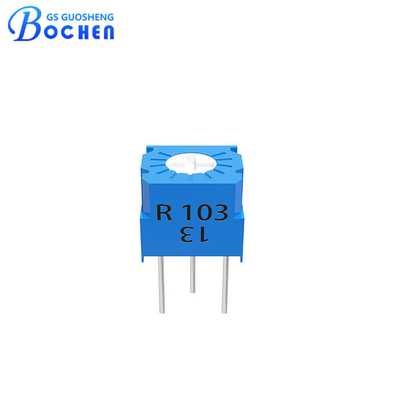

3323R 0.5W 1/4" Square Single Turn Cermet Trimmer Trimming Potentiometer

Products

Conductive Plastic Potentiometer

3323R 0.5W 1/4" Square Single Turn Cermet Trimmer Trimming Potentiometer

MOQ:	100 Pieces
Price:	$0.085 - $0.90/Piece
Standard Packaging:	50 pieces/tube, 5000 pieces/carton.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3323R

Product Name:

3323R 0.5W 1/4" Square Single Turn Cermet Trimmer Trimming Potentiometer

Resistance Range:

10Ω~5MΩ

Resistance Tolerance:

±10% ; ±20%

Terminal Resistance:

≤±1%R Or 3Ω

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Electrical Travel:

Rated Power(300 Volts Max.):

70℃，0.5W；125℃，0W

Rotational Life:

200 Cycles、ΔR≤±3%R

Total Mechanical Travel:

Temperature Range:

-55°C ~ + 125°C

Minimum Order Quantity:

100 Pieces

Price:

$0.085 - $0.90/Piece

Packaging Details:

50 pieces/tube, 5000 pieces/carton.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

1/4” Square Trimmer Potentiometer

Single Turn Trimmer Potentiometer

3323R Trimmer Potentiometer

Product Description

3323R 0.5W 1/4" Square Single Turn Cermet Trimmer Trimming Potentiometer

Feature

• Rated power is 0.5W.

• Wide ohmic range (10 Ω to 5 MΩ).

• Miniature /industrial /single turn /cermet trimmer.

• Low contact resistance variation(≤3%R or 3Ω).

• Rotor designed for automatic machine adjust interface.

• High precision, precision adjustable, and all performances are stable and reliable.

Description

The 3323R cermet trimmer potentiometer is a miniature, industrial-grade, single-turn component designed for high precision and reliability. With a rated power of 0.5W, it offers a wide ohmic range from 10 Ω to 5 MΩ with a tolerance of 10%, making it suitable for a variety of applications. Its rotor is engineered for automatic machine adjustment interfaces, ensuring efficient and accurate calibration. The trimmer features low contact resistance variation, maintaining changes within ≤3%R or 3Ω, which contributes to its stable and reliable performance. Known for its high precision and adjustable nature, the 3323R cermet trimmer is an ideal choice for applications requiring consistent and dependable performance.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%; ±20%
	Terminal Resistance	≤±1%R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms Min.
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength	500 Vac(1 Min.)
	Electrical Travel	220°
Environment Characteristics	Weld Heat Resistance	250ºC, 10 Secs.
	Rated Power(300 volts max.)	70ºC, 0.5W; 125ºC, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70ºC Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

3323R 0.5W 1/4" Square Single Turn Cermet Trimmer Trimming Potentiometer 0

Packaging

Packaging specification: 50 pieces/tube, 5000 pieces/carton.

3323R 0.5W 1/4" Square Single Turn Cermet Trimmer Trimming Potentiometer 1

Application

• Precision Instrumentation:
Calibration Devices: Fine-tuning measurement instruments for accurate readings.
Laboratory Equipment: Adjusting parameters in analytical devices for precise results.

• Consumer Electronics:
Audio Systems: Adjusting volume and tone controls for high-fidelity sound.
Home Entertainment: Calibration of display and sound settings in TVs and home theaters.

• Medical Equipment:
Portable Monitors: Fine-tuning sensors in portable patient monitoring devices.
Diagnostic Tools: Ensuring accurate calibration in devices like ECG and blood pressure monitors.

• Automotive Systems:
Engine Management: Adjusting sensor inputs for optimal engine performance.
Dashboard Electronics: Calibrating gauges and displays for accurate information.

• Telecommunication Devices:
Signal Processing: Tuning RF circuits for clear communication signals.
Network Hardware: Adjusting performance settings in routers and modems.

• Industrial Controls:
Automation Systems: Fine-tuning control parameters in automated machinery.
Sensor Calibration: Ensuring accurate readings in various industrial sensors.

• Aerospace Technology:
Navigation Systems: Adjusting parameters for precise navigation and control.
Communication Equipment: Ensuring reliable operation of communication systems.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
