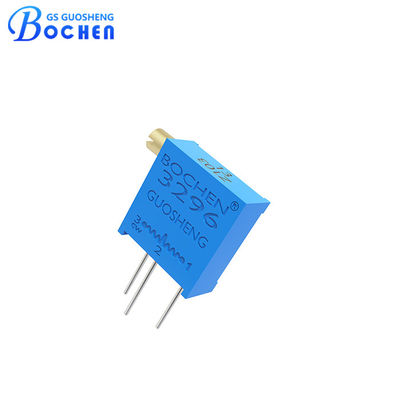

3296Z Cermet Trimmer Potentiometer 1k 5k 10k 50k 100k 200k Ohms

Products

Conductive Plastic Potentiometer

3296Z Cermet Trimmer Potentiometer 1k 5k 10k 50k 100k 200k Ohms

MOQ:	100 Pieces
Price:	$0.048 - $0.90/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T,L/C,D/A,D/P,Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3296Z

Product Name:

3296Z 1k 5k 10k 50k 100k 200k Ohms Cermet Trimmer Trimpot Trimming Potentiometer

Resiative Element:

Cermet

Adjustment Style:

Side Adjustment

Mounting Method:

Through Hole

Product Style:

Multi-turn

Range Of Nominal Resistance:

10Ω-5MΩ

Rated Power(300 Volts Max.):

70℃，0.5W；125℃，0W

Resistance Tolerance:

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Rotational Life:

200 Cycles、ΔR≤±3%R

Total Mechanical Travel:

30±2 Turns

Effective Travel:

25（±2）Turns

Minimum Order Quantity:

100 Pieces

Price:

$0.048 - $0.90/Piece

Packaging Details:

Standard Packing 50 Pieces/Tube

Delivery Time:

1-7 Workdays

Payment Terms:

T/T,L/C,D/A,D/P,Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

50k Trimmer Potentiometer

3296 Trimmer Potentiometer

200k 3296 potentiometer

Product Description

3296Z 1k 5k 10k 50k 100k 200k Ohms Cermet Trimmer Trimpot Trimming Potentiometer

Quick Detail

• Multiturn, Cermet, Sealed.

• Lateral adjustment shaft.

• Small size and high precision.

• Effective travel 25±2 turns.

• Contact resistance variation ≤3%R or 3Ω.

• Precision can be adjusted, stable and reliable performance.

Description

The 3296Z trimmer potentiometer is a robust component engineered for precision adjustments in electronic circuits. Employing a cermet element, this potentiometer boasts enhanced durability, ensuring longevity in various applications. Despite its compact size, it delivers high accuracy, making it suitable for intricate electronic projects. The precision is adjustable, offering flexibility to meet specific tuning requirements while ensuring stable and reliable performance. With a lateral adjustment shaft, it facilitates easy and convenient adjustments during installation and operation. The resistance range is adjustable from 10 ohms to 10 megaohms, catering to a wide spectrum of circuit needs. Rated at 0.5W at 70℃, it maintains optimal performance even under challenging temperature conditions. Its effective electrical travel extends 25±2 turns, allowing for precise and fine-tuned adjustments. The 3296Z trimmer potentiometer is the epitome of durability, precision, and reliability, making it an indispensable component in electronic systems.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. R1≥1GΩ
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength Sea Level	500 Vac(1 Min.)
	Effective Travel	25(±2)Turns
Environment Characteristics	Weld Heat Resistance	Wave soldering: Temp: 260ºC±5ºC, T: 3±1 Secs. Soldering iron welding: Temp: 320ºC±5ºC, T: ≤2 Secs.
	Rated Power(300 volts max.)	70ºC, 0.5W; 125ºC, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±2%R, Δ(Uab/Uac)≤±1%
	Collision	10-500Hz, 0.75mm, 6h ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70ºC Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	30±2 Turns
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

3296Z Cermet Trimmer Potentiometer 1k 5k 10k 50k 100k 200k Ohms 0

Packaging

Packaging specification:50 pieces per tube.

3296Z Cermet Trimmer Potentiometer 1k 5k 10k 50k 100k 200k Ohms 1

Application

The 3296Z cermet trimmer potentiometer is widely used in various applications due to its precision, durability, and versatility. Here are some common application areas for this type of trimmer potentiometer:

• Telecommunications Equipment: Used for fine-tuning signal processing circuits and maintaining signal integrity.

• Industrial Control Systems: Employed in controllers and automation systems for calibrating and adjusting control parameters.

• Medical Devices: Utilized in medical instrumentation for precise control and calibration of sensitive equipment.

• Consumer Electronics: Found in devices like audio equipment, televisions, and other home electronics for adjusting settings and tuning performance.

• Automotive Electronics: Used in various automotive applications, such as sensor calibration and control modules.

• Test and Measurement Instruments: Essential in laboratory and field instruments for precise measurement and calibration functions.

• Power Supplies: Employed in power supply units to adjust voltage and current settings accurately.

• RF and Microwave Circuits: Used for tuning and matching impedance in high-frequency circuits.

• Aerospace and Defense: Applied in avionics and defense systems for precise control and reliability in harsh environments.

3296Z Cermet Trimmer Potentiometer 1k 5k 10k 50k 100k 200k Ohms 2

Overall, the 3296Z cermet trimmer potentiometer is a critical component in any application requiring precise resistance adjustment and high reliability.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
