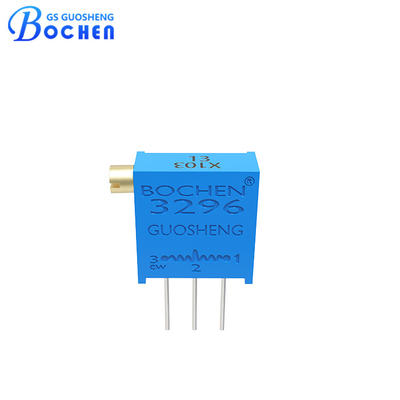

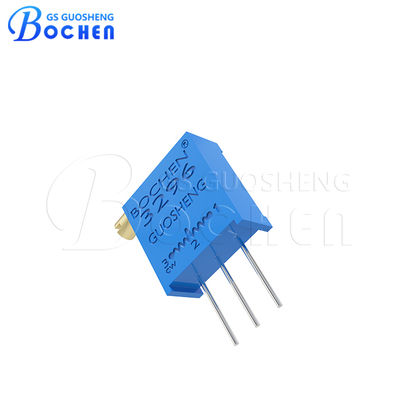

3296X 0.5W Multiturn Cermet Trimmer Potentiometer Trimpot Side Adjustment

Products

Conductive Plastic Potentiometer

3296X 0.5W Multiturn Cermet Trimmer Potentiometer Trimpot Side Adjustment

MOQ:	100 Pieces
Price:	$0.048 - $0.90/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T,L/C,D/A,D/P,Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3296X

Product Name:

3296X 0.5W Variable Resistor Side Adjustment Multiturn Cermet Trimmer Trimming Potentiometers

Product Type:

Trimmer Resistors

Element Type:

Cermet

Termination Style:

PC Pin

Mounting Style:

PCB Mount

Rated Power(300 Volts Max.):

70℃，0.5W；125℃，0W

Range Of Nominal Resistance:

10Ω-5MΩ

Resistance Tolerance:

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Effective Travel:

25（±2）Turns

Rotational Life:

200 Cycles、ΔR≤±3%R

Total Mechanical Travel:

30±2 Turns

Minimum Order Quantity:

100 Pieces

Price:

$0.048 - $0.90/Piece

Packaging Details:

Standard Packing 50 Pieces/Tube

Delivery Time:

1-7 Workdays

Payment Terms:

T/T,L/C,D/A,D/P,Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

3296X Trimmer Potentiometer

0.5W Trimmer Potentiometer

Side Adjustment 3296 trimpot

Product Description

3296X 0.5W Variable Resistor Side Adjustment Multiturn Cermet Trimmer Trimming Potentiometers

Quick Detail

• 0.5W at 70℃.

• Two terminal styles.

• Linear arrangement of pins.

• Horizontal adjustment shaft.

• Total mechanical travel 30±2 turns.

• Resistance range from 10 ohms to 5M ohms.

• 8mm long adjustment shaft can be customized.

• Thin body profile,high precision and reliable performance.

Description

The 3296X cermet trimmer potentiometer is a versatile component tailored for precision adjustments in electronic circuits. This multi-turn precision preset potentiometer offers a resistance range spanning from 10Ω to 5MΩ, catering to a wide array of circuit requirements. Rated at 0.5W at 70℃, it ensures reliable performance under varying temperature conditions. With a total mechanical travel of 30±2 turns, this potentiometer allows for precise and fine-tuned adjustments. Additionally, it offers the option for customization with an 8mm long adjustment shaft, providing flexibility in installation and operation. The 3296X cermet trimmer potentiometer is engineered to deliver consistent and accurate performance, making it an ideal choice for demanding electronic applications.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. R1≥1GΩ
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength Sea Level	500 Vac(1 Min.)
	Effective Travel	25(±2)Turns
Environment Characteristics	Weld Heat Resistance	Wave soldering: Temp: 260ºC±5ºC, T: 3±1 Secs. Soldering iron welding: Temp: 320ºC±5ºC, T: ≤2 Secs.
	Rated Power(300 volts max.)	70ºC, 0.5W; 125ºC, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±2%R, Δ(Uab/Uac)≤±1%
	Collision	10-500Hz, 0.75mm, 6h ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70ºC Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	30±2 Turns
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

Two terminal styles:

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

3296X 0.5W Multiturn Cermet Trimmer Potentiometer Trimpot Side Adjustment 0

3296X 0.5W Multiturn Cermet Trimmer Potentiometer Trimpot Side Adjustment 1

Packaging

Packaging specification: 50 pieces per tube.

3296X 0.5W Multiturn Cermet Trimmer Potentiometer Trimpot Side Adjustment 2

Application

• Telecommunications Equipment: Used for fine-tuning signal processing circuits and maintaining signal integrity.

• Industrial Control Systems: Employed in controllers and automation systems for calibrating and adjusting control parameters.

• Medical Devices: Utilized in medical instrumentation for precise control and calibration of sensitive equipment.

• Consumer Electronics: Found in devices like audio equipment, televisions, and other home electronics for adjusting settings and tuning performance.

• Automotive Electronics: Used in various automotive applications, such as sensor calibration and control modules.

• Test and Measurement Instruments: Essential in laboratory and field instruments for precise measurement and calibration functions.

• Power Supplies: Employed in power supply units to adjust voltage and current settings accurately.

• RF and Microwave Circuits: Used for tuning and matching impedance in high-frequency circuits.

• Aerospace and Defense: Applied in avionics and defense systems for precise control and reliability in harsh environments.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
