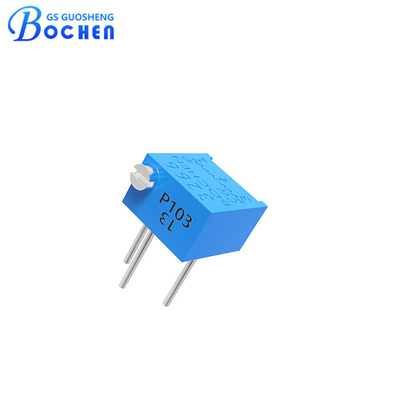

3266P-1-103LF 10k Ohms Variable Resistor Precision Adjustment Trimmer Potentiometer

Products

Conductive Plastic Potentiometer

3266P-1-103LF 10k Ohms Variable Resistor Precision Adjustment Trimmer Potentiometer

MOQ:	100 Pieces
Price:	$0.085 - $0.90/Piece
Standard Packaging:	50 pieces/tube, 5000 pieces/carton.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3266P-1-103LF

Product Name:

3266P-1-103LF Precision Adjustment Trimmer Potentiometer

Range Of Nominal Resistance:

10Ω-5MΩ

Resistance Tolerance:

Withstand Voltage:

101.3KPa，500 Vac；8.5KPa，250 Vac

Effective Travel:

10±2 Turns

Rated Power(300 Volts Max.):

70℃，0.25W；125℃，0W

Rotational Life:

200 Cycles、ΔR≤±3%R

Total Mechanical Travel:

12±2 Turns

Minimum Order Quantity:

100 Pieces

Price:

$0.085 - $0.90/Piece

Packaging Details:

50 pieces/tube, 5000 pieces/carton.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

Precision Adjustment Trimmer Potentiometer

10k Ohms Trimmer Potentiometer

Product Description

3266P-1-103LF 10k Ohms Variable Resistor Precision Adjustment Trimmer Potentiometer

Quick Detail

■ 0.25w rate power.

■ 200 cycles rotational life.

■ 10±2 turns effective travel.

■ 10k ohms nominal resistance.

■ Tape and reel packaging available.

■ Multiturn / Cermet / Industrial / Sealed.

■ Standoffs allow thorough PC board washing.

■ High precision, adjustable and reliable performance.

Description

The 3266P-1-103LF cermet trimmer, a highly versatile component essential for precise resistance adjustment in electronic circuits. This trimmer potentiometer is characterized by its compact size and robust construction, making it ideal for applications where space is limited and reliability is paramount. It features a cermet element that ensures stable performance with fine resolution, enabling precise tuning of voltage levels and signal calibration. The 3266P-1-103LF is commonly used in telecommunications equipment, industrial controls, medical devices, automotive electronics, and consumer electronics, where it plays a crucial role in achieving optimal performance and efficiency. With a wide operating temperature range and durable design, it meets the stringent requirements of modern electronic applications.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω-5MΩ
	Resistance Tolerance	±10%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. R1≥1GΩ
	Withstand Voltage	101.3KPa,500 Vac；8.5KPa,250 Vac
	Dielectric Strength Sea Level	500 Vac(1 Min.)
	Effective Travel	10(±2)Turns
Environment Characteristics	Weld Heat Resistance	Wave soldering: TEMP: 260 ℃ ± 5 ℃, T: 3 ± 1 Secs. Soldering iron welding: TEMP: 320 ℃ ± 5 ℃, T: ≤ 2 Secs.
	Rated Power(300 volts max.)	70℃,0.25W；125℃,0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±2%R, Δ(Uab/Uac)≤±1%
	Collision	10-500Hz,0.75mm,6h ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Vibration	100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles,ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	12±2 Turns
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

3266P-1-103LF 10k Ohms Variable Resistor Precision Adjustment Trimmer Potentiometer 0

Packaging

Packaging specification: 50 pieces/tube, 5000 pieces/carton.

3266P-1-103LF 10k Ohms Variable Resistor Precision Adjustment Trimmer Potentiometer 1

Application

The 3266P-1-103LF cermet trimmer is specifically employed in various specific devices and equipment:

• Modems and Routers: Used for fine-tuning signal strength and quality in telecommunications equipment.
• Industrial Control Systems: Adjusts parameters in PLCs (Programmable Logic Controllers) and industrial automation equipment.
• Medical Devices: Provides precise resistance adjustments in equipment such as patient monitoring systems and diagnostic tools.
• Automotive Electronics: Used in electronic control units (ECUs) and sensors for calibration and signal adjustment.
• Audio Equipment: Provides precise resistance settings in audio amplifiers and equalizers for optimal sound quality.

These applications benefit from the trimmer's ability to provide stable, accurate resistance adjustments in a compact form factor, ensuring reliable performance across a range of electronic devices and systems.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as UL, RoHS,SGS,etc and best quality assurance.
• Sufficient production capacity , short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
