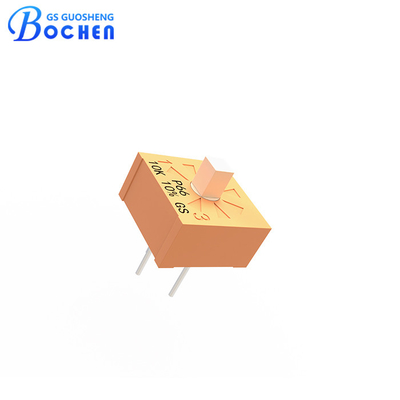

Custom Precision 50k 10k Ohms Trimmer Potentiometer 3387P For SMD

Products

Conductive Plastic Potentiometer

Custom Precision 50k 10k Ohms Trimmer Potentiometer 3387P For SMD

MOQ:	100 Pieces
Price:	$0.98 - $1.80/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3387P

Product Name:

3387P 0.5W 1k 10k 20k 50k 100k 200k 500k Ohms Precision Single Turn Cermet Trimmer Potentiometer

Element Material:

Cermet

Adjustment Style:

Top Adjustment

Mounting Method:

Through Hole

Range Of Nominal Resistance:

10Ω-5MΩ

Resistance Tolerance:

Rated Power:

70℃，0.5W；125℃，0W

Effective Travel:

Mechanical Endurance:

200 Cycles、ΔR≤±3%R

Total Mechanical Travel:

Minimum Order Quantity:

100 Pieces

Price:

$0.98 - $1.80/Piece

Packaging Details:

Standard Packing 50 Pieces/Tube

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

Custom 10k trimmer potentiometer

SMD 10k trimmer potentiometer

Custom 50k ohm smd potentiometer

Product Description

3387P 0.5W 1k 10k 20k 50k 100k 200k 500k Ohms Precision Single Turn Cermet Trimmer Potentiometer

Quick Detail:

• Cermet resistive material.

• Top adjustment.

• Through hole mounting.

• Wide resistance range 10Ω to 5MΩ, tolerance 10%.

• Rated power 0.5w at 70℃.

• Electrical travel 220°, total mechanical travel 250°.

• Small size, fully sealed, high and adjustable precision, stable and reliable performance.

Description:

The 3387P trimmer potentiometer is a type of adjustable resistor used for fine-tuning and calibration in electronic circuits. It typically features a small, adjustable shaft and three pins for connections. This trimmer potentiometer is designed for applications where space is limited, offering precise adjustment capabilities for parameters such as voltage, current, or signal levels. It is commonly utilized in electronic devices to ensure accurate and reliable performance.

Specification:

Electrical Characteristics	Resistance Range	10Ω-5MΩ
	Resistance Tolerance	±10% ；±20%
	Terminal Resistance	≤±1%R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms min.
	Withstand Voltagey	101.3KPa,500 Vac；8.5KPa,250 Vac
	Dielectric Strength	500 Vac(1 Min.)
	Electrical Travel	220°
Environment Characteristics	Resistance to Solder Heat	250℃ for 10 Secs.
	Rated Power(300 volts max.)	70℃,0.5W；125℃,0W
	Operating Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles,ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension:

Custom Precision 50k 10k Ohms Trimmer Potentiometer 3387P For SMD 0

Packaging:

Packaging specification:50 pieces per tube.

Application:

• Calibration of Electronic Devices

• Industrial Control

• Medical Devices

• Communication Equipment

• Consumer Electronics

• Aerospace

• Automotive Electronics

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as UL,RoHS,SGS,etc and best quality assurance.
• Sufficient production capacity , short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
