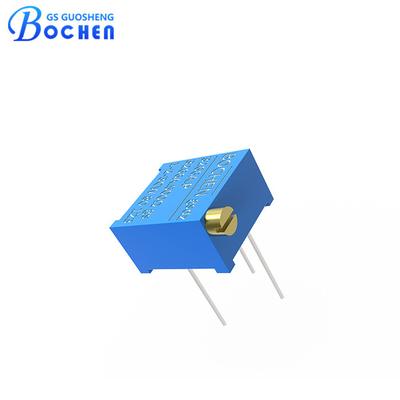

3266A 0.25w 10k Ohms 12 Turns Multiturn Trimmer Potentiometer

Products

Conductive Plastic Potentiometer

3266A 0.25w 10k Ohms 12 Turns Multiturn Trimmer Potentiometer

MOQ:	100 Pieces
Price:	$0.98 - $1.80/Piece
Standard Packaging:	50 pieces/tube, 5000 pieces/carton.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3266A

Product Name:

3266A Multiturn Cermet Trimmer Potentiometer

Product Type:

Trimmer Resistors

Element Type:

Cermet

Termination Style:

PC Pin

Mounting Style:

PCB Mount

Nominal Resistance Range:

10Ω~5MΩ

Rated Power:

70℃, 0.25W; 125℃, 0W

Effective Travel:

10±2 Turns

Mechanical Endurance:

200 Cycles, ΔR≤±3%R

Total Mechanical Travel:

12±2 Turns

Minimum Order Quantity:

100 Pieces

Price:

$0.98 - $1.80/Piece

Packaging Details:

50 pieces/tube, 5000 pieces/carton.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

3266A Multiturn Trimmer Potentiometer

12 Turns Multiturn Trimmer Potentiometer

10k Ohms Multiturn Trimmer Potentiometer

Product Description

3266A Series 0.25w 10k Ohm 12 Turn Multiturn Cermet Trimmer Potentiometer

Description

The 3266A series cermet trimmer potentiometer is a type of adjustable resistor used for precise calibration and adjustment in electronic circuits. It typically features a small, adjustable shaft and three pins for connections. This trimmer potentiometer is designed for applications where space is limited, offering fine-tuning capabilities for parameters such as voltage, current, or signal levels. It is commonly utilized in electronic devices to ensure accurate and reliable performance.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. R1≥1GΩ
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength Sea Level	500 Vac(1 Min.)
	Effective Travel	10(±2) Turn
Environment Characteristics	Weld Heat Resistance	Wave Soldering: Temp: 260 ℃ ± 5 ℃, T: 3 ± 1 Secs. Soldering Iron Welding: Temp: 320 ℃ ± 5 ℃, T: ≤ 2 Secs.
	Rated Power	70℃, 0.25W; 125℃, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±2%R, Δ(Uab/Uac)≤±1%
	Collision	10-500Hz,0.75mm,6h ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Vibration	100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Mechanical Endurance	200 cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	12±2 Turn
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

3266A 0.25w 10k Ohms 12 Turns Multiturn Trimmer Potentiometer 0

Packaging

Packaging specification: 50 pieces/tube, 5000 pieces/carton.

3266A 0.25w 10k Ohms 12 Turns Multiturn Trimmer Potentiometer 1

Application

The 3266A series cermet trimmer potentiometer is widely used in various fields for its precision and reliability:

• Telecommunications: Ensures accurate signal calibration in communication devices.
• Industrial Controls: Fine-tunes parameters in automated systems for optimal performance.
• Medical Devices: Adjusts critical components in medical equipment for precise operation.
• Automotive Electronics: Controls voltage and current levels in automotive systems.
• Consumer Electronics: Provides precise adjustments in audio equipment and other consumer devices.

These applications benefit from the trimmer's compact design, high precision, and stable performance characteristics.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
