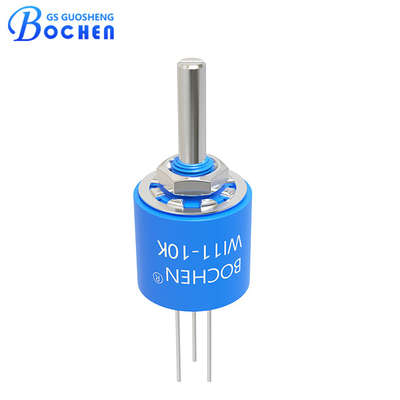

WI11 1w Round Cermet 10k Trimpot Trimmer Potentiometer 10 Ohms To 5 Megohms

Products

Conductive Plastic Potentiometer

WI11 1w Round Cermet 10k Trimpot Trimmer Potentiometer 10 Ohms To 5 Megohms

MOQ:	100 Pieces
Price:	$0.98 - $1.80/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T,L/C,D/A,D/P,Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

Product Name:

WI11 Precision Trimmer Potentiometer

Range Of Nominal Resistance:

10Ω-5MΩ

Resistance Tolerance:

±10%;±20%

Terminal Resistance:

≤±1% R Or 3Ω

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Effective Travel:

Rated Power:

70℃,1W;125℃,0W

Total Mechanical Travel:

Highlight:

Round Cermet 10k trim pot

SMD 10k trim pot

10 Ohms smd trimmer potentiometer

Product Description

WI11 1w 10 Ohms To 5 Megohms Tolerance 10% Single Turn Round Cermet Trimmer Potentiometer

Quick Detail:

• Three terminal style.

• 1/2" round cermet element.

• With a extended adjustment shaft.

• Throungh hole mounting method.

• Wide resistance range 10 ohms to 5 megohms, tolerance 10%.

• Electrical travel 220°, total mechanical travel 250°.

• Power rating 0.5w at 70℃.

Description:

The WI11 cermet trimmer potentiometer features a 1/2" round cermet element and is equipped with an extended adjustment shaft, making it ideal for precise tuning and calibration in various electronic applications. Designed for through-hole mounting, this trimmer potentiometer includes a three-terminal style for versatile connectivity. It offers a nominal resistance range from 10 ohms to 5 megohms with a tolerance of 10%, ensuring accurate adjustments. The WI11 provides an electrical travel of 220° and a total mechanical travel of 250°, allowing for fine control over resistance settings. With a power rating of 0.5 watts at 70°C, this cermet trimmer potentiometer is suitable for use in demanding environments while maintaining reliable performance.

Specification:

Electrical Characteristics	Range Of Nominal Resistance	10Ω-5MΩ
	Resistance Tolerance	±10%;±20%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms min
	Withstand Voltage	101.3KPa,500 Vac;8.5KPa,250 Vac
	Dielectric Strength Sea Level	500 Vac(1 min.)
	Effective Travel	220°
Environment Characteristics	Weld Heat Resistance	250℃,10 Sec.
	Rated Power	70℃,1W;125℃,0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±3%R,Δ(Uab/Uac)≤±1%
	Collision	20G,ΔR≤±1%R,Δ(Uab/Uac)≤±1%
	Vibration	100G,ΔR≤±1%R,Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Mechanical Endurance	200 cycles,ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension:

Three terminal style:

WI11 1w Round Cermet 10k Trimpot Trimmer Potentiometer 10 Ohms To 5 Megohms 0

WI11 1w Round Cermet 10k Trimpot Trimmer Potentiometer 10 Ohms To 5 Megohms 1

Packaging:

Packaging specification:Standard Packing 50 Pieces/Tube.

Application:

The WI11 cermet trimmer potentiometer is used in various applications due to its precision and reliability. Here are some key application areas:

• Telecommunications: Used in tuning and calibration of communication devices.
• Medical Equipment: Essential for precise control in diagnostic and monitoring devices.
• Industrial Automation: Employed in control systems for machinery and processes.
• Consumer Electronics: Utilized in adjusting settings in devices like audio equipment and home appliances.
• Automotive: Used in electronic control units and various sensor applications.
• Aerospace: Critical for calibration and adjustment in avionics and other aerospace systems.
• Instrumentation: Applied in measurement and testing instruments for accurate control and calibration.

These diverse applications highlight the versatility and importance of cermet trimmer potentiometers in modern technology.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as UL,RoHS,SGS,etc and best quality assurance.
• Sufficient production capacity , short delivery time.
• Professional after-sales service team.
• OEM & ODM available.

Tags:

single turn trimmer,

smd trimmer potentiometer,
