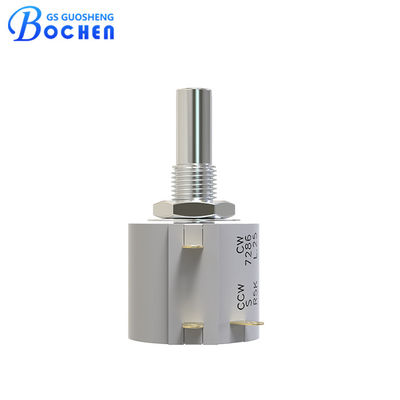

Panel Mount Precision Multiturn Wirewound Potentiometer 7286 2w 10k

Products

Conductive Plastic Potentiometer

Panel Mount Precision Multiturn Wirewound Potentiometer 7286 2w 10k

MOQ:	100 Pieces
Price:	$2.70 - $6.00/Piece
Standard Packaging:	25 pcs/plastic box; 50 pcs/box.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	3,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

Product Name:

7286 Wirewound Potentiometer

Product Type:

Wirewound Potentiometer

Element Type:

Wirewound

Termination Style:

Solder Turret

Mounting Style:

Panel Mount

Nominal Resistance Range:

100Ω-100KΩ

Resistance Tolerance:

Independent Linearity:

±0.5%

Effective Travel:

≥3600°-10°

Rated Power:

2W@+70℃，0W@+125℃

Minimum Order Quantity:

100 Pieces

Price:

$2.70 - $6.00/Piece

Packaging Details:

25 pcs/plastic box; 50 pcs/box.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight:

10k Wirewound Potentiometer

7286 Wirewound Potentiometer

7286 precision multiturn potentiometer

Product Description

7286 2w 10k Precision Multiturn Wirewound Potentiometer

Description

The 7286 wirewound potentiometer is a high-quality component used for precise resistance control. It offers smooth and accurate adjustments, making it suitable for a wide range of applications such as audio equipment, industrial controls, and power supplies. With its durable construction and multiple resistance options, the 7286 wirewound potentiometer provides reliable performance for various electronic systems.

Specification

Electrical Characteristics	Nominal Resistance Range	100Ω-100KΩ
	Resistance Tolerance	±5%
	Independent Linearity	±0.5%
	Effective Travel	≥3600°-10°
	Terminal Resistance	≤0.2%R or 5Ω
	Noise	≤3%R or 3Ω
	Insulation Resistance	R≥1GΩ
	Withstand Voltage	101.3kPa 710V, 8.5kPa 470V
Environment Characteristics	Rated Power	2W@+70℃, 0W@+125℃
	Temperature Range	-55℃~+125℃
	Temperature Coefficient	±100ppm/℃
	Temperature Variation	ΔR≤2%R, Δ(Uab/Uac)≤±1%
	Vibration	390m/s², 4000cycles,R≤±1%R
	Collision	10-500Hz, 0.75mm, or 98m/s² , 6hΔR≤土1%R. Δ(Uab/Uac)≤±2%
	Climate Category	ΔR≤±3%R, R1≥100MΩ
	Electrical Endurance At 70°C	2W, 1000h, ΔR≤±3%R
	Mechanical Endurance	10000 cycles, ΔR≤±3%R
	Steady Damp Heat	ΔR≤±3%R, R1≥100MΩ
Physical Characteristics	Total Mechanical Travel	3600°±10°
	Starting Torque	≤36mN·m
	Clutch Torque	≤300mN·m

Dimension

Panel Mount Precision Multiturn Wirewound Potentiometer 7286 2w 10k 0

Panel Mount Precision Multiturn Wirewound Potentiometer 7286 2w 10k 1

Packaging

Packaging specification: 25 pieces/plastic box, 50 pieces/box.

Panel Mount Precision Multiturn Wirewound Potentiometer 7286 2w 10k 2

Applications

• Pedal position.
• Joystick controls.
• Valve control.
• Wind vane.
• Panel control.
• Test and measurement.
• Medical equipment.
• Angular position.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
