10 Turn 5k 20k 10k Ohms Wire Wound Potentiometer 3540 2w 5% ODM

Products

Conductive Plastic Potentiometer

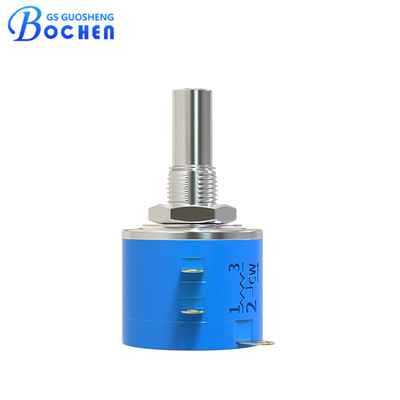

10 Turn 5k 20k 10k Ohms Wire Wound Potentiometer 3540 2w 5% ODM

MOQ:	100 Pieces
Price:	$0.98 - $1.80/Piece
Standard Packaging:	20pcs/box; 50pcs/box.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	100,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

Product Name:

3540 Precision Wirewound Potentiometer

Product Type:

Precision Potentiometers

Element Type:

Wirewound

Mounting Style:

Panel Mount

Shaft Type:

Slotted

Termination Style:

Solder Lug

Resistance Range:

100Ω-100KΩ

Rated Power:

2W@+70℃,0W@+125℃

Resistance Tolerance:

Effective Travel:

≥3600°-10°

Total Mechanical Travel:

3600°±10°

Rotational Life:

10000 Cycles，ΔR≤±3%R

Minimum Order Quantity:

100 Pieces

Price:

$0.98 - $1.80/Piece

Packaging Details:

20pcs/box; 50pcs/box.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

100,000,000 Pieces Per Month

Highlight:

ODM 10k wire wound potentiometer

3540 10k wire wound potentiometer

3540 potentiometer 5k 10 turn

Product Description

3540S 2w 5% 5k 10k 20k 50k 100K Ohms 10 Turns Multiturn Precision Wirewound Potentiometer

Feature:

• Bushing mount.

• Optional center tap and rear shaft extension.

• Optional AR lug feature.

• Gangable with common or concentric shafts.

• High torque available.

• Non-standard features and specifications available.

• RoHS compliant versions available.

Description:

The 3540S wirewound potentiometer is a high-quality electronic component widely used for precise resistance control in various applications. It features a robust construction with a wirewound element, ensuring exceptional accuracy and stability in resistance adjustments. With its ability to handle high power levels, it is suitable for applications requiring reliable and accurate resistance control, such as industrial automation, power supplies, and motor control. The 3540 wirewound potentiometer offers smooth and precise operation, making it a preferred choice for engineers and hobbyists seeking reliable and precise resistance control in their electronic systems.

Specification:

Electrical Characteristics	Standard Resistance Range	100Ω~100KΩ
	Resistance Tolerance	±5%
	Independent Linearity	±0.25%
	Effective Electrical Travel	≥3600°-10°
	Terminal Resistance	≤0.2%R or 5Ω
	Noise	≤3%R or 3Ω
	Insulation Resistance	R≥1GΩ
	Withstand Voltage	101.3kPa 710V, 8.5kPa 470V
Environment Characteristics	Rated Power	2W@+70℃, 0W@+125℃
	Operating Temperature Range	-55℃~+125℃
	Temperature Coefficient	±100ppm/℃
	Temperature Variation	ΔR≤2%R, Δ(Uab/Uac)≤±1%
	Vibration	390m/s², 4000cycles, R≤±1%R
	Collision	10-500Hz, 0.75mm, or 98m/s² , 6hΔR≤土1%R. Δ(Uab/Uac)≤±2%
	Climate Category	ΔR≤±3%R, R1≥100MΩ
	Electrical Endurance At 70°C	2W, 1000h, ΔR≤±3%R
	Rotational Life	10000 cycles, ΔR≤±3%R
	Steady Damp Heat	ΔR≤±3%R, R1≥100MΩ
Physical Characteristics	Total Mechanical Travel	3600°±10°
	Starting Torque	≤36mN·m
	Clutch Torque	≤300mN·m

Dimension:

10 Turn 5k 20k 10k Ohms Wire Wound Potentiometer 3540 2w 5% ODM 0

10 Turn 5k 20k 10k Ohms Wire Wound Potentiometer 3540 2w 5% ODM 1

Packaging:

Packaging specification:20 pieces/box, 50 pieces/box.

Application:

The 3540S wirewound potentiometer is a high-precision potentiometer commonly used in applications requiring accurate resistance adjustment. Here are some typical application areas:

• Industrial Control: Used for adjusting and controlling parameters in various industrial equipment, such as motor speed and temperature controllers.
• Audio Equipment: Employed in high-end audio devices for precise adjustment of volume, tone, and other audio parameters.
• Laboratory Equipment: Utilized in scientific experiments and measurement devices to provide accurate resistance adjustment.
• Medical Devices: Used in certain medical instruments for precise control and parameter adjustment.
• Aerospace: Applied in precision control systems within aerospace equipment.
• Communication Devices: Used in some communication equipment to adjust signal strength and other parameters.

These application areas require high precision and reliability, which the 3540S wirewound potentiometer is well-suited to provide.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.

Tags:

20mm Shaft Wirewound Potentiometer,

Waterproof 10k multi turn pot,

Video

Precision Wirewound Potentiometer Multi Turn 3540 10k 100 Ohm-100K Ohm 2W
