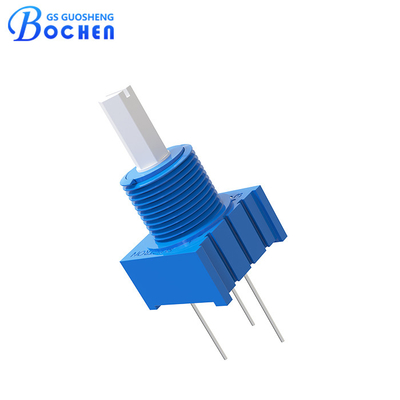

10k 100k Ohm Precision Trimmer Potentiometer 3386P 0.5W ODM

Products

Conductive Plastic Potentiometer

10k 100k Ohm Precision Trimmer Potentiometer 3386P 0.5W ODM

MOQ:	100 Pieces
Price:	$0.06 - $0.90/Piece
Standard Packaging:	1. 50 Pieces/Tube, 1K/2K/ 5K Pieces/Small Carton, 20k Pieces/Mater Carton 2. 20K Pieces/Master CTN/13.5KG/603530cm.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3386P Series

Product Name:

3386P 0.5W 10k Ohms Precision Single Turn Trimmer Potentiometer

Resistive Element:

Cermet

Mounting Style:

Through Hole

Adjustment Method:

Top Adjustment

Resistance Range:

10Ω~5MΩ

Rated Power:

70℃，0.5W；125℃，0W

Effective Travel:

Resistance Tolerance:

±10%; ±20%

Terminal Resistance:

≤±1% R Or 3Ω

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Total Mechanical Travel:

Operating Temperature Range:

-55°C ~ + 125°C

Minimum Order Quantity:

100 Pieces

Price:

$0.06 - $0.90/Piece

Packaging Details:

1. 50 Pieces/Tube, 1K/2K/ 5K Pieces/Small Carton, 20k Pieces/Mater Carton 2. 20K Pieces/Master CTN/13.5KG/60*35*30cm.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

ODM Trimmer Potentiometer

3386P Trimmer Potentiometer

3386P trimmer 100k ohm

Product Description

3386P Series 0.5W 10k ohms Precision Single Turn Cermet Trimmer Potentiometer

Quick Detail:

• 3/8˝ square / single turn / cermet element / fully sealed.

• Six terminal style.

• Available with extended shaft.

• Available with a knob for finger adjust.

• Top and side adjustment.

• Through hole mounting.

• Wide ohms range from 10Ω to 5MΩ, tolerance 10%.

• Electrical travel 220°, total mechanical travel 250°.

Description:

The 3386P trimmer potentiometer is an electronic component known for its adjustable resistance capabilities. Here is a brief introduction to its key features:

• Adjustable resistance: The 3386P trimmer potentiometer allows users to precisely adjust resistance levels according to specific circuit requirements, providing control over voltage, current, and signal strength.

• High precision and reliability: This potentiometer offers excellent precision and reliability in resistance adjustment, ensuring consistent and accurate performance.

• Durable construction: The 3386P trimmer potentiometer is built with high-quality materials and features a robust design, making it resistant to wear, temperature variations, and environmental factors.

• Easy installation and compatibility: It features standard pin spacing and is designed for easy installation and compatibility with various electronic systems and devices.

• Versatile applications: The 3386P trimmer potentiometer is commonly used in audio equipment, consumer electronics, industrial controls, and other applications that require precise resistance control.

In summary, the 3386P trimmer potentiometer is a high-precision, reliable, and versatile component that allows for accurate resistance adjustments in electronic circuits. Its durability, compatibility, and wide range of applications make it a preferred choice for engineers and hobbyists in various industries.

Specification:

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%; ±20%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms min.
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength Sea Level	500 Vac(1min.)
	Effective Travel	220°
Environment Characteristics	Weld Heat Resistance	250ºC, 10 Sec.
	Rated Power	70ºC, 0.5W; 125ºC, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70ºC Rated Power; ΔR≤±3%R
	Mechanical Endurance	200 cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension:

Six terminal style:

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

10k 100k Ohm Precision Trimmer Potentiometer 3386P 0.5W ODM 0

10k 100k Ohm Precision Trimmer Potentiometer 3386P 0.5W ODM 2

Packaging:

Packaging specification: 50 pieces per tube.

Application:

• Calibration of Electronic Devices.

• Industrial Control.

• Medical Devices.

• Communication Equipment.

• Consumer Electronics.

• Aerospace.

• Automotive Electronics.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
