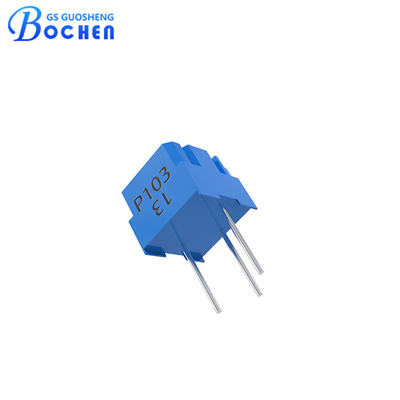

3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer

MOQ: 100 Pieces
Price: $0.085 - $0.90/Piece
Standard Packaging: 50 Pieces/Tube, 5000 Pieces/Carton.
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 10000000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, Reach
Model Number
3323P
Product Name:
3323P Trimmer Potentiometer
Product Type:
Trimmer Resistors
Element Type:
Cermet
Mounting Style:
PCB Mount
Termination Style:
PC Pin
Terminal Resistance:
≤2 Ohm
Contact Resistance Variation:
≤3%R Or 3ohm
Insulation Resistance:
R1≥1Gohm
Effective Electrical Travel:
210°±10°
Temperature Coefficient:
±250 ± 100ppm/℃
Minimum Order Quantity:
100 Pieces
Price:
$0.085 - $0.90/Piece
Packaging Details:
50 Pieces/Tube, 5000 Pieces/Carton.
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
10000000 Pieces Per Month
Highlight:

RoHS Trimmer Potentiometer

,

3323P Trimmer Potentiometer

,

10K Trimmer Potentiometer

Product Description

3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer



Description



The 3323P trimmer potentiometer is an adjustable electronic component used for controlling resistance in various applications. With its compact and versatile design, it allows for precise resistance adjustments. The potentiometer provides smooth and reliable operation, making it suitable for applications in audio equipment, consumer electronics, and industrial controls.



Feature



■  Adjustable resistance.
■  Compact design.
■  Smooth operation.
■  Durable construction.
■  Versatile applications.





Specification



Electrical Characteristics Nominal Resistance Range 10Ω~5MΩ
Resistance Tolerance ±10%; ±20%
Terminal Resistance ≤±1%R or 3Ω
Contact Resistance Variation (CRV) ≤3%R or 3Ω
Insulation Resistance 500 Vdc. 100 megohms Min.
Withstand Voltage 101.3KPa, 500 Vac; 8.5KPa, 250 Vac
Dielectric Strength 500 Vac(1 Min.)
Electrical Travel 220°
Environment Characteristics Weld Heat Resistance 250℃, 10 Secs.
Rated Power(300 volts max.) 70℃, 0.5W; 125℃, 0W
Temperature Range -55°C ~ + 125°C
Temperature Coefficient ±250, ±100 ppm /°C
Temperature Variation ΔR≤±3%R, Δ(Uab/Uac)≤±1%
Collision 20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
Vibration 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
Electrical Endurance At 70°C 1000 hours @ 70℃ Rated Power; ΔR≤±3%R
Rotational Life 200 Cycles, ΔR≤±3%R
Physical Characteristics Total Mechanical Travel 250°
Starting Torque ≤25 mN.m
Clutch Torque ≤35 mN.m





Dimension



Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer 0





Packaging



Packaging Specification: 50 pieces/tube, 5000 pieces/carton.





Application



■  Audio equipment.
■  Consumer electronics.
■  Industrial controls.
■  Robotics and automation.
■  Power supplies.
■  Measurement and testing instruments.
■  Automotive electronics.
■  Telecommunications.





Advantage



• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
