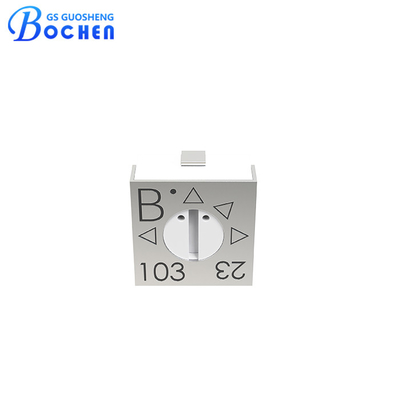

3314J 10k Ohm 4mm Single Turn Square Cermet Trimmer Potentiometer

Products

Conductive Plastic Potentiometer

3314J 10k Ohm 4mm Single Turn Square Cermet Trimmer Potentiometer

MOQ:	100 Pieces
Price:	$1.00 - $1.50/Piece
Standard Packaging:	500 pieces/tray (7 inches); 3000 pieces/tray (13 inches).
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3314J-1

Product Name:

3314J 4mm Square Cermet Trimmer Potentiometer

Product Type:

Trimmer Resistors

Termination Style:

SMD/SMT

Mounting Style:

PCB Mount

Range Of Nominal Resistance:

50Ω-2MΩ

Resistance Tolerance:

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Withstand Voltage:

101.3KPa，500 Vac；8.5KPa，250 Vac

Dielectric Strength Sea Level:

500 Vac

Adjustment Angle:

Minimum Order Quantity:

100 Pieces

Price:

$1.00 - $1.50/Piece

Packaging Details:

500 pieces/tray (7 inches); 3000 pieces/tray (13 inches).

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

Square Trimmer Potentiometer

4mm Trimmer Potentiometer

Product Description

3314J 10k Ohm 4mm Single Turn Square Cermet Trimmer Potentiometer

Description

The 3314J cermet trimmer potentiometer is an adjustable electronic component used for controlling resistance in various applications. With its compact and durable design, it allows for precise resistance adjustments. The potentiometer features a wide range of selectable resistance values and offers smooth and reliable operation. It is commonly used in audio equipment, consumer electronics, industrial controls, and other electronic systems requiring adjustable resistance.

Specification

Electrical Characteristics	Nominal Resistance Range	50Ω-2MΩ
	Resistance Tolerance	±10% ；±20%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms min
	Withstand Voltage	101.3KPa,500 Vac；8.5KPa,250 Vac
	Dielectric Strength Sea Level	500 Vac
	Effective Travel	210°
Environment Characteristics	Rated Power	70℃,0.25W；125℃,0W
	Weld Heat Resistance	250℃,10S
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Mechanical Endurance	100 cycles,ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	240°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension:

3314J 10k Ohm 4mm Single Turn Square Cermet Trimmer Potentiometer 0

Packaging

Packaging specification:500 pieces/tray (7 inches); 3000 pieces/tray (13 inches).

3314J 10k Ohm 4mm Single Turn Square Cermet Trimmer Potentiometer 1

Application

The 3314J cermet trimmer potentiometer finds applications in various fields, including:

• Audio equipment.
• Consumer electronics.
• Industrial controls.
• Power supplies.
• Measurement and testing instruments.
• Robotics and automation.
• Automotive electronics.
• Telecommunications.

In these industries, the 3314J potentiometer is used for precise resistance control and adjustment in electronic circuits. It provides flexibility and accuracy in controlling voltage, current, and signal strength, making it a versatile component for a wide range of applications.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
