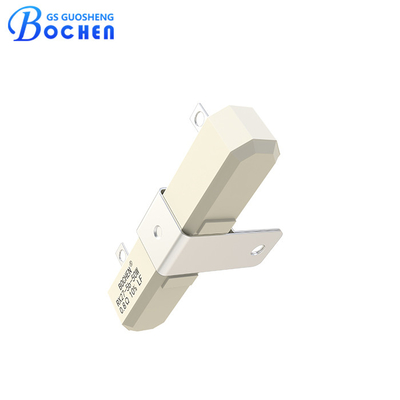

RX27 50W Ceramic Composition Cement Wirewound Resistors With Quick Connect Terminals

Products

Conductive Plastic Potentiometer

RX27 50W Ceramic Composition Cement Wirewound Resistors With Quick Connect Terminals

MOQ:	100 Pieces
Price:	$0.98 - $1.80/Piece
Standard Packaging:	1. 4000 Pieces/Master Carton/20KG(5W SQP) 2. 3200 Pieces/Master Carton/25.5KG(7W SQP)
Delivery Period:	1-7 Workdays
Payment Method:	T/T,L/C,D/A,D/P,Western Union
Supply Capacity:	6,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, REACH

Model Number

Product Name:

RX27 50W Quick Connect Terminals Ceramic Composition Cement Wirewound Resistors

Product Type:

Wirewound Ceramic Resistors

Rated Power:

30W, 40W, 50W

Resistance:

1Ω~2KΩ

Resistance Tolerance:

±5%, ±10%

Temperature Coefficient:

±300 Ppm/°C

Temperature Range:

-55°C ~ +275°C

Frequency Characteristics:

Low Frequency

Minimum Order Quantity:

100 Pieces

Price:

$0.98 - $1.80/Piece

Packaging Details:

1. 4000 Pieces/Master Carton/20KG(5W SQP) 2. 3200 Pieces/Master Carton/25.5KG(7W SQP)

Delivery Time:

1-7 Workdays

Payment Terms:

T/T,L/C,D/A,D/P,Western Union

Supply Ability:

6,000,000 Pieces Per Month

Highlight:

Quick Connect Terminals Wirewound Resistors

RX27 Wirewound Resistors

50W Wirewound Resistors

Product Description

RX27 50W Ceramic Composition Cement Wirewound Resistors With Quick Connect Terminals

Feature

• Stable long life.

• Wide resistance range.
• Non-inductance design is available.
• Can be produce according to customer's request.
• Compact type with safety design of non-flammability and insulation.

Description

The RX27 wirewound resistor series offers robust performance suitable for a wide range of applications, ranging from 10 to 50 watts of power handling capacity. These resistors are AEC-Q200 qualified, ensuring reliability and consistency in automotive and industrial environments. Featuring a flameproof case, they meet stringent safety standards and are RoHS compliant for environmental sustainability.

Designed for high overload capability, the RX27 series includes options for mounting brackets, providing flexibility in installation. Terminals are available in quick connect or soldered tag configurations, catering to diverse assembly requirements. Their special inorganic potting compound and ceramic case enhance thermal conductivity, ensuring effective heat dissipation while maintaining a fireproof package.

The RX27 wirewound resistors are engineered to deliver durability and performance, making them ideal for applications demanding reliability under challenging conditions.

Specification

STANDARD ELECTRICAL SPECIFICATIONS
POWER RATING P40 °C(w)	RESISTANCE RANGE(Ω)	TOLERANCE ± %	WEIGHT (typical)
30	1 to 2K	5, 10	45
40	1 to 2K	5, 10	45
50	1 to 2K	5, 10	75

TECHNICAL SPECIFICATIONS
PARAMETER		UNIT	PC QUICK CONNECT CHARACTERISTICS
Temperature Coefficient		ppm/°C	±300
Short Time Overload		-	10 x rated power for 5s
Operating Temperature Range		°C	-55 ~ +275
Dielectric Withstanding Voltage		V_AC	1000
Maximum Continuous Working Voltage		V	(P x R)^1/2

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

RX27 50W Ceramic Composition Cement Wirewound Resistors With Quick Connect Terminals 0

Application

RX27 Wirewound Resistor widely used in power adapters, audio equipment, audio frequency dividers, instruments, meters, televisions, cars and other equipment.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
