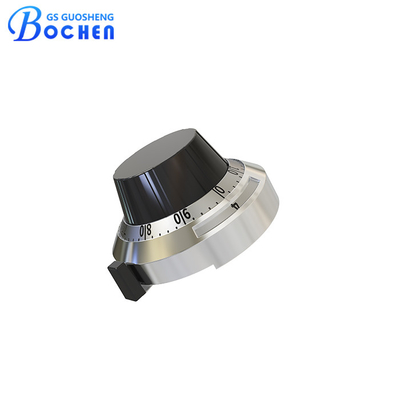

Custom Precise Digital Multi Turn Potentiometers Knob H-46-6A

H-46-6A Digital Knob Multi Turn Potentiometers Knob

Feature:


• Large package size.
• For use with precision potentiometers up to 20 turns.
• Excellent readability.
• Precision feel - no backlash.
• Cast housing.
• RoHS compliant.

Description:

The H-46-6A Turns-Counting Dial is a high-precision instrument designed for accurately measuring and displaying the number of turns made by rotary components such as potentiometers and variable capacitors. Featuring a robust and durable design, the H-46-6A ensures reliable performance in demanding applications. It provides a clear, easy-to-read display that allows for precise adjustments and settings, making it ideal for use in control panels, test and measurement instruments, communication devices, and other applications requiring meticulous calibration. The H-46-6A is engineered to support various mounting configurations, enhancing its versatility and ease of integration into diverse systems. Its precision and durability make it an essential tool for achieving accurate control and measurement in advanced electronic systems.

Specification:

Number of Turns: 0 to 20
Dial Divisions: 100 per turn
Readability - Over 10 Turns: Within 1/100 of a turn
Torque With Brake Engaged: 21.18 N-cm (30.0 oz.-in.) maximum
Markings: Black on chrome background
Locking Brake: Yes
Set Screw: UNC N4-44, one included.
Set Screw Tightening Torque: 16.94 N-cm (1.5 lbs.-in.) minimum
Hex Key Size: 1.5 mm hex
Shaft Extension Beyond Panel: 17.5 mm (0.689 in.) minimum 23.5 mm (0.925 in.) maximum
Bushing Extension Beyond Panel: 4.5 mm (0.177 in.) maximum

Dimension:

Packaging:

Packaging specification: 1 piece/inner box, 500 pieces/carton.

Application:

• Power supplies.
• Sensors.
• Medical.
• Automation.
• Test equipment.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
