3006 Multi Turn Rectangular Cermet Trimmer Precision Potentiometer 10ohm~10mohm

Products

Conductive Plastic Potentiometer

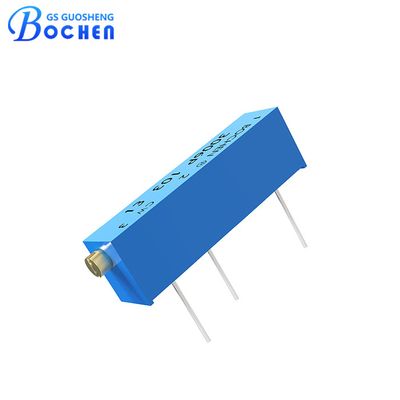

3006 Multi Turn Rectangular Cermet Trimmer Precision Potentiometer 10ohm~10mohm

MOQ:	100 Pieces
Price:	$0.07 - $0.90/Piece
Standard Packaging:	1. 25 PCS/Tube, 4000 PCS/ Small Carton. 2. 16000 PCS/CTN/28KG/673530cm.
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	100,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3006P

Product Name:

3006P Series Cermet Trimmer

Product Type:

Trimmer Resistors

Element Type:

Cermet

Mounting Style:

PCB Mount

Termination Style:

PC Pin

Adjustment:

Side Slot

Nominal Resistance Range:

10Ω~5MΩ

Resistance Tolerance:

Contact Resistance Variation:

≤ 3%R Or 3 Ohm

Electrical Travel:

20±2 Turns

Minimum Order Quantity:

100 Pieces

Price:

$0.07 - $0.90/Piece

Packaging Details:

1. 25 PCS/Tube, 4000 PCS/ Small Carton. 2. 16000 PCS/CTN/28KG/67*35*30cm.

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

100,000,000 Pieces Per Month

Highlight:

3006 Precision Potentiometer

Rectangular Precision Potentiometer

10ohm multi turn trimmer potentiometer

Product Description

3006 Series 10ohm~10Mohm Multiturn Ectangular Cermet Trimmer Potentiometer

Description

The 3006 series cermet trimming potentiometers offer a 0.75W power rating, 200 cycles of rotational life, and a resistance range of 10Ω to 5MΩ. These potentiometers feature a low PC board profile of only 1/4" high and include a panel-mount option, ensuring greater application flexibility. Transparent housing is also available so that the 3006 series can be set visually without hook-up and instrumentation. The 3006 series is made of multi-turn potentiometers that have 20(±2) turns, sealed construction, and are suitable for industrial environments.The 3006 series cermet trimming Potentiometers have an operating temperature range of -55°C to +125°C, 500VDC insulation resistance, and ±250, ±100 ppm/°C temperature coefficient.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. R1≥1GΩ
	Withstand Voltage	101.3KPa,500 Vac；8.5KPa,250 Vac
	Dielectric Strength Sea Level	500 Vac(1 Min.)
	Electrical Travel	20(±2) Turns
Environment Characteristics	Weld Heat Resistance	Wave soldering: Temp: 260℃±5℃, T: 3±1 secs. Soldering iron: Temp: 320℃±5℃, T ≤ Secs.
	Rated Power(300 volts max.)	70℃,0.75W；125℃,0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±2%R, Δ(Uab/Uac)≤±1%
	Collision	10-500Hz,0.75mm,6h ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Vibration	100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles,ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	22±2 Turns
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

Four terminal styles:

3006 Multi Turn Rectangular Cermet Trimmer Precision Potentiometer 10ohm~10mohm 0

3006 Multi Turn Rectangular Cermet Trimmer Precision Potentiometer 10ohm~10mohm 1

Packaging

Packaging specification: 1. 25 pieces/tube, 4000 pieces/carton. 2. Customization package is available.

3006 Multi Turn Rectangular Cermet Trimmer Precision Potentiometer 10ohm~10mohm 4

Applications

• Telecommunications: Essential for impedance matching in RF circuits and signal processing equipment.
• Consumer Electronics: Used in audio equipment for fine-tuning signal paths and adjusting gain levels.
• Industrial Automation: Applied to calibrate sensors and feedback mechanisms for precise control systems.
• Medical Devices: Ensures accurate resistance values in critical electronic components for reliable performance.
• Automotive Electronics: Used for calibration and adjustment in automotive sensors and control modules.
• Aerospace and Defense: Critical for maintaining stable resistance values in avionics and military electronics.
• Power Electronics: Supports voltage regulation and current sensing applications in power supply circuits.
• Instrumentation: Used for calibration and adjustment in measurement instruments and testing equipment.
• Computer Peripherals: Applied in printers, monitors, and other peripherals for circuit adjustment and calibration.
• Energy Management: Used in smart meters and energy monitoring devices for accurate measurement and control.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
