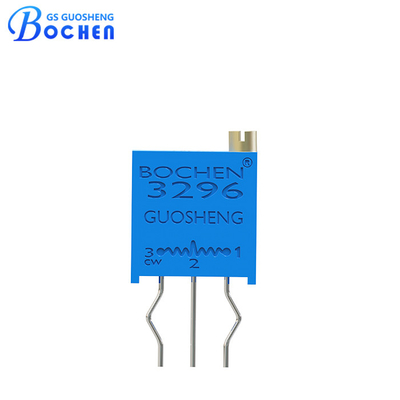

3296W-B 0.5w Adjustable Resistance Bent Pin Cermet Trimmer Potentiometer

MOQ: 100 Pieces
Price: $0.048 - $0.90/Piece
Standard Packaging: Standard Packing 50 Pieces/Tube
Delivery Period: 1-7 Workdays
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 10000000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
Bochen
Certification
RoHS, Reach
Model Number
3296W-B
Product Name:
3296W-B Bent Pin Cermet Trimmer Potentiometer
Rated Power(300 Volts Max.):
70℃，0.5W；125℃，0W
Nominal Resistance Range:
10Ω~5MΩ
Contact Resistance Variation (CRV):
≤3%R Or 3Ω
Effective Travel:
25（±2）Turns
Rotational Life:
200 Cycles、ΔR≤±3%R
Total Mechanical Travel:
30±2 Turns
Resistance Tolerance:
±10%
Minimum Order Quantity:
100 Pieces
Price:
$0.048 - $0.90/Piece
Packaging Details:
Standard Packing 50 Pieces/Tube
Delivery Time:
1-7 Workdays
Payment Terms:
T/T, L/C, D/A, D/P, Western Union
Supply Ability:
10000000 Pieces Per Month
Highlight:

Bent Pin Trimmer Potentiometer

,

Cermet Trimmer Potentiometer

,

0.5w Trimmer Potentiometer

Product Description

3296W-B 0.5W Adjustable Resistance Bent Pin Cermet Trimmer Potentiometer





Feature



• RoHS compliant.

• 25 ±2 turns effective travel.

• Thin body profile,high precision.

• Cermet elements ensure stability.

• 10Ω-5MΩ range of nominal resistance.

• Bent pin design for flexible PCB mounting.





Description



The 3296W-B trimmer potentiometer is a precision electronic component used to adjust resistance in circuits. Cermet element is used in the resistor, resulting in a more durable and stable potentiometer. Meanwhile, 3296W-B is designed with bent pins, making it more flexible for mounting on PCBs. Its compact design makes it suitable for a wide range of electronic applications, including audio equipment, instrumentation, and communications equipment.





Specification



Electrical Characteristics Nominal Resistance Range 10Ω~5MΩ
Resistance Tolerance ±10%
Terminal Resistance ≤±1% R or 3Ω
Contact Resistance Variation (CRV) ≤3%R or 3Ω
Insulation Resistance 500 Vdc. R1≥1GΩ
Withstand Voltage 101.3KPa, 500 Vac; 8.5KPa, 250 Vac
Dielectric Strength Sea Level 500 Vac(1 Min.)
Effective Travel 25(±2) Turns
Environment Characteristics Weld Heat Resistance Wave soldering:
Temp: 260℃±5℃, T: 3±1 Secs.
Soldering iron welding:
Temp: 320℃±5℃, T: ≤2 Secs.
Rated Power(300 volts max.) 70℃,0.5W; 125℃, 0W
Temperature Range -55°C ~ + 125°C
Temperature Coefficient ±250, ±100 ppm /°C
Temperature Variation ΔR≤±2%R, Δ(Uab/Uac)≤±1%
Collision 10-500Hz, 0.75mm, 6h ΔR≤±1%R,
Δ(Uab/Uac)≤±2%
Vibration 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
Electrical Endurance At 70°C 1000 hours @ 70℃ Rated Power; ΔR≤±3%R
Rotational Life 200 Cycles, ΔR≤±3%R
Physical Characteristics Total Mechanical Travel 30±2 Turns
Starting Torque ≤25 mN.m
Clutch Torque ≤35 mN.m





Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.



3296W-B 0.5w Adjustable Resistance Bent Pin Cermet Trimmer Potentiometer 0





Packaging
Packaging specification: 50 pieces per tube, 20 tubes per box.

3296W-B 0.5w Adjustable Resistance Bent Pin Cermet Trimmer Potentiometer 1

Application

• Industrial control.
• Communication equipment.
• Precision instruments.
• Automotive electronics.
• LCD panels.
• Switching power supplies.



Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.

Tags:

single turn trimmer,

smd trimmer potentiometer,

trimpot trimmer potentiometer
