Product Name:

3296W-A 8mm Vertical Long Adjustment Shaft Knob Cermet Trimmer Potentiometer

Product Type:

Multiturn Trimmer Resistors

Element Type:

Cermet

Mounting Style:

PCB Mount

Termination Style:

PC Pin

Nominal Resistance Range:

10Ω~5MΩ

Resistance Tolerance:

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Rated Power(300 Volts Max.):

70℃, 0.5W; 125℃, 0W

Effective Travel:

25±2 Turns

Highlight:

Cermet 3296w potentiometer

8mm 3296w potentiometer

8mm 3296 trimpot

Product Description

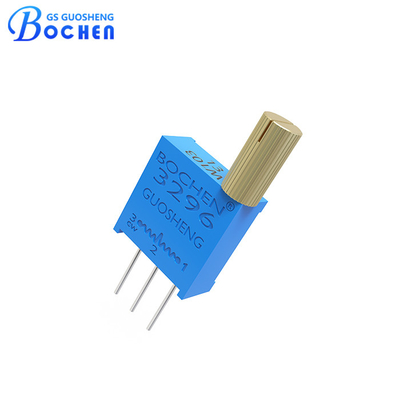

3296W-A 8mm Vertical Long Adjustment Shaft Knob Cermet Trimmer Potentiometer

Quick Detail:

● 0.5W at 70℃.

● 8mm vertical adjustment shaft.

● Multi-finger wiper for better CRV.

● Wide ohmic range (10 Ω to 5 MΩ).

● 30±2 turns total mechanical travel.

● Multiturn / Cermet / Industrial / Sealed.

Description:

The 3296W-A trimmer potentiometer is a precision electronic component utilized for fine-tuning resistance in circuits. Renowned for its high resolution and durability, this trimmer potentiometer ensures stable resistance values even under fluctuating conditions. Its multi-turn design allows for precise adjustments, making it ideal for applications requiring accuracy, such as audio equipment, instrumentation, and communication devices. The 3296W-A trimmer potentiometer is favored by engineers for its reliability and compact size, facilitating its integration into various electronic systems with ease.

Specification:

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. R1≥1GΩ
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength Sea Level	500 Vac(1 Min.)
	Effective Travel	25(±2)Turns
Environment Characteristics	Weld Heat Resistance	Wave soldering: Temp: 260ºC±5ºC, T: 3±1 Secs. Soldering iron welding: Temp: 320ºC±5ºC, T: ≤2 Secs.
	Rated Power(300 volts max.)	70ºC, 0.5W; 125ºC, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±2%R, Δ(Uab/Uac)≤±1%
	Collision	10-500Hz, 0.75mm, 6h ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70ºC Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	30±2 Turns
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension:

Cermet Trimmer 3296W-A Potentiometer Trimpot 8mm Vertical Shaft Knob 0

Packaging:

Packaging specification: 50 pieces per tube, 20 tubes per box.

Application:

• Industrial control.
• Communication equipment.
• Precision instruments.
• Automotive electronics.
• LCD panels.
• Switching power supplies.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH,etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
