Precision Adjustable Multiturn 3296 Trimmer Potentiometer 3296Y 10K 20K 50K 100K Ohms

Products

Conductive Plastic Potentiometer

Precision Adjustable Multiturn 3296 Trimmer Potentiometer 3296Y 10K 20K 50K 100K Ohms

MOQ:	100 Pieces
Price:	$0.048 - $0.90/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T,L/C,D/A,D/P,Western Union
Supply Capacity:	3,000,000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, REACH

Model Number

3296Y

Product Name:

3296Y 10K 20K 50K 100K Ohms Precision Adjustable Multiturn Trimmer Potentiometer

Element Type:

Cermet

Termination Style:

PC Pin

Nominal Resistance Range:

10Ω~5MΩ

Resistance Tolerance:

Contact Resistance Variation (CRV):

≤3%R Or 3Ω

Effective Travel:

25±2 Turns

Rated Power(300 Volts Max.):

70℃, 0.5W; 125℃, 0W

Rotational Life:

200 Cycles, ΔR≤±3%R

Total Mechanical Travel:

30±2 Turns

Minimum Order Quantity:

100 Pieces

Price:

$0.048 - $0.90/Piece

Packaging Details:

Standard Packing 50 Pieces/Tube

Delivery Time:

1-7 Workdays

Payment Terms:

T/T,L/C,D/A,D/P,Western Union

Supply Ability:

3,000,000 Pieces Per Month

Highlight:

Adjustable 3296 trimmer potentiometer

100K Ohm 3296 trimmer potentiometer

100K Ohm 3296 potentiometer

Product Description

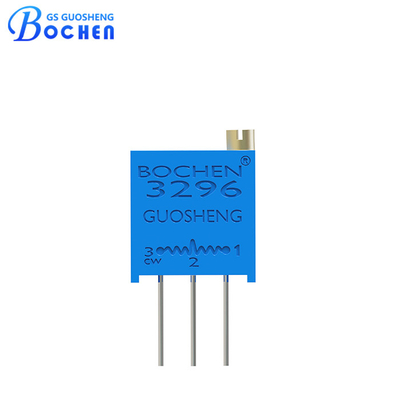

3296Y 10K 20K 50K 100K Ohms Precision Adjustable Multiturn Trimmer Potentiometer

Feature

• Rated at 0.5W.

• Top Adjustment Shaft.

• Resistance range from 10Ω to 5MΩ.

• Total mechanical travel is 30 ± 2 Turns.

• Cermet element ,thin body, high precision.

• Precision adjustable and reliable performance.

Description

The 3296Y trimmer potentiometer, a compact yet powerful component designed for precision control in electronic circuits. With a rated power of 0.5W, this potentiometer features a top adjustment shaft, enabling easy tuning and calibration. Its resistance range spans from 10Ω to 5MΩ, catering to a wide range of circuit requirements. Boasting an effective electrical travel of 25 (±2) turns, it ensures accurate adjustments with ease.

Precision Adjustable Multiturn 3296 Trimmer Potentiometer 3296Y 10K 20K 50K 100K Ohms 0

Constructed with cermet element, this trimmer potentiometer offers high precision and reliability, making it ideal for demanding applications where performance is critical. Expect nothing short of exceptional performance and durability from the 3296Y trimmer potentiometer.

Precision Adjustable Multiturn 3296 Trimmer Potentiometer 3296Y 10K 20K 50K 100K Ohms 1

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. R1≥1GΩ
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength Sea Level	500 Vac(1 Min.)
	Effective Travel	25(±2)Turns
Environment Characteristics	Weld Heat Resistance	Wave soldering: Temp: 260ºC±5ºC, T: 3±1 Secs. Soldering iron welding: Temp: 320ºC±5ºC, T: ≤2 Secs.
	Rated Power(300 volts max.)	70ºC, 0.5W; 125ºC, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250,±100 ppm /°C
	Temperature Variation	ΔR≤±2%R, Δ(Uab/Uac)≤±1%
	Collision	10-500Hz, 0.75mm, 6h ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70ºC Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	30±2 Turns
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

Precision Adjustable Multiturn 3296 Trimmer Potentiometer 3296Y 10K 20K 50K 100K Ohms 2

Packaging

Packaging specification:50 pieces per tube.

Precision Adjustable Multiturn 3296 Trimmer Potentiometer 3296Y 10K 20K 50K 100K Ohms 3

Application

The 3296Y cermet trimmer potentiometer finds applications in various fields that require precise resistance trimming. Here its application areas:

• Electronics: The 3296Y cermet trimmer potentiometer is commonly used in electronic circuits for fine-tuning resistance values. It is utilized in audio equipment, communication devices, power supplies, and other electronic systems that require accurate resistance adjustments.
• Industrial Controls: This potentiometer is employed in industrial control systems for calibration and adjustment purposes. It allows for precise resistance trimming in control panels, motor control circuits, and instrumentation equipment.
• Automotive Electronics: The 3296Y cermet trimmer potentiometer is utilized in automotive electronics for resistance adjustments in various components. It is often found in control modules, sensors, and audio systems, ensuring optimal performance and reliability.
• Telecommunications: In telecommunications equipment, this potentiometer is used for resistance trimming in signal processing circuits, network devices, and telecommunication systems. It helps maintain signal quality and ensure accurate data transmission.
• Consumer Electronics: The 3296Y cermet trimmer potentiometer is employed in a range of consumer electronic devices, including televisions, home appliances, and computer peripherals. It allows for precise resistance adjustments that contribute to improved performance and functionality.
• Medical Devices: This potentiometer is utilized in medical devices and equipment where precise resistance control is necessary. It helps in adjusting parameters, calibrating sensors, and ensuring accurate measurements in medical instruments.

Precision Adjustable Multiturn 3296 Trimmer Potentiometer 3296Y 10K 20K 50K 100K Ohms 4

In summary, the 3296Y cermet trimmer potentiometer finds applications in electronics, industrial controls, automotive electronics, telecommunications, consumer electronics, and medical devices. Its ability to provide precise resistance trimming makes it a versatile component in various industries.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.

Product Catalog

Precision Adjustable Multiturn 3296 Trimmer Potentiometer 3296Y 10K 20K 50K 100K Ohms 5

Precision Adjustable Multiturn 3296 Trimmer Potentiometer 3296Y 10K 20K 50K 100K Ohms 6

Precision Adjustable Multiturn 3296 Trimmer Potentiometer 3296Y 10K 20K 50K 100K Ohms 7
