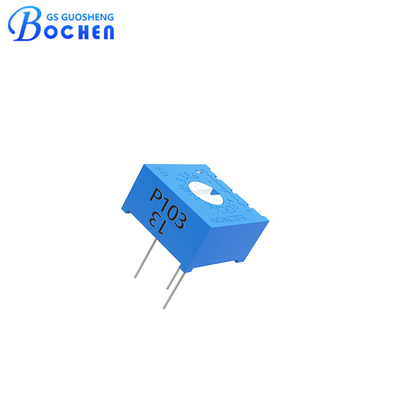

10% Trimmer Potentiometer 104 Trimpot 3386 Series Customized

Products

Conductive Plastic Potentiometer

10% Trimmer Potentiometer 104 Trimpot 3386 Series Customized

MOQ:	100 Pieces
Price:	$0.06 - $0.90/Piece
Standard Packaging:	Standard Packing 50 Pieces/Tube
Delivery Period:	1-7 Workdays
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	10000000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Chengdu

Brand Name

BOCHEN

Certification

RoHS, Reach

Model Number

3386 Series

Product Name:

3386 Series 0.5w 10% 10 Ohms To 5 Megohms Precision Adjustable Resistor Cermet Trimmer Potentiometer

Resistive Material:

Cermet

Adjustment Style:

Side And Top Adjustment

Mounting Method:

Through Hole

Terminal Style:

PC Pins

Resistance Range:

10Ω-5MΩ

Resistance Tolerance:

Electrical Travel:

Total Mechanical Travel:

Rotational Life:

200 Cycles,ΔR≤±3%R

Minimum Order Quantity:

100 Pieces

Price:

$0.06 - $0.90/Piece

Packaging Details:

Standard Packing 50 Pieces/Tube

Delivery Time:

1-7 Workdays

Payment Terms:

T/T, L/C, D/A, D/P, Western Union

Supply Ability:

10000000 Pieces Per Month

Highlight:

Customized Trimmer Potentiometer

3386 Trimmer Potentiometer

Customized 104 trimpot

Product Description

3386 Series 0.5w 10% 10 Ohms To 5 Megohms Precision Adjustable Resistor Cermet Trimmer Potentiometer

Highlights

• Twenty-six terminal styles.

• 3/8˝ square / single turn / cermet element / fully sealed.

• Through hole mounting.

• Side and top adjustment.

• Available with a knob for finger adjust.

• Available with extended shaft.

• Wide resistance range 10Ω to 5MΩ, tolerance 10%.

• Electrical travel 220°, total mechanical travel 250°.

Description

The 3386 cermet trimmer is a versatile component designed for precise resistance adjustment in electronic circuits. This trimmer features a 3/8˝ square cermet element that is fully sealed, ensuring reliability and longevity in various environmental conditions. With side and top adjustment options, it provides flexibility in installation and usage. The trimmer is available with a knob for easy finger adjustment or an extended shaft for specific applications. It supports twenty-six terminal styles for compatibility across different circuit designs and offers through hole mounting for secure installation.

Covering a wide resistance range from 10Ω to 5MΩ with a tolerance of 10%, the 3386 trimmer allows fine-tuning of resistance values critical to circuit performance. Its electrical travel spans 220°, while the total mechanical travel extends to 250°, enabling precise calibration for optimal circuit operation. Ideal for applications requiring accuracy and durability, the 3386 cermet trimmer stands as a reliable choice in electronic componentry.

Specification

Electrical Characteristics	Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%; ±20%
	Terminal Resistance	≤±1%R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms min.
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength	500 Vac(1 Min.)
	Electrical Travel	220°
Environment Characteristics	Resistance to Solder Heat	250℃ for 10 Secs.
	Rated Power(300 volts max.)	70℃, 0.5W; 125℃, 0W
	Operating Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

Twenty-six terminal styles:

10% Trimmer Potentiometer 104 Trimpot 3386 Series Customized 0

10% Trimmer Potentiometer 104 Trimpot 3386 Series Customized 1

10% Trimmer Potentiometer 104 Trimpot 3386 Series Customized 2

Packaging

Packaging specification: 50 pieces per tube.

10% Trimmer Potentiometer 104 Trimpot 3386 Series Customized 26

Application

• Calibration of Electronic Devices.

• Industrial Control.

• Medical Devices.

• Communication Equipment.

• Consumer Electronics.

• Aerospace.

• Automotive Electronics.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
