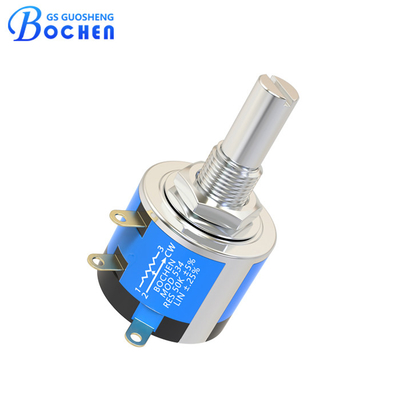

Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation

MOQ: 100 Pieces
Price: $2.50 - $5.00/Piece
Standard Packaging: 20 Pieces/Box; 50 Pieces/Box
Delivery Period: 1-7 Workdays
Payment Method: T/T,L/C,D/A,D/P,Western Union
Supply Capacity: 3,000,000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin
Chengdu
Brand Name
BOCHEN
Certification
RoHS, Reach
Model Number
534
Product Name:
534 Multiturn Precision Wirewound Potentiometer
Product Type:
Precision Wirewound Potentiometer
Termination Style:
Solder Lug
Nominal Resistance Range:
100Ω-100KΩ
Resistance Tolerance:
±5%
Effective Travel:
≥3600°-10°
Independent Linearity:
±0.5%
Rated Power:
2W@+70℃，0W@+125℃
Total Mechanical Travel:
3600°±10°
Temperature Coefficient:
±100ppm/℃
Minimum Order Quantity:
100 Pieces
Price:
$2.50 - $5.00/Piece
Packaging Details:
20 Pieces/Box; 50 Pieces/Box
Delivery Time:
1-7 Workdays
Payment Terms:
T/T,L/C,D/A,D/P,Western Union
Supply Ability:
3,000,000 Pieces Per Month
Highlight:

Vishay Spectrol Precision Rotary Potentiometer

,

Instrumentation Precision Rotary Potentiometer

,

2k Precision Rotary Potentiometer

Product Description

Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation

Quick Detail


• Bushing and servo mount designs available.
• Linearity 0.5%, higher accuracy and stability.
• Wide ohmic range 100Ω~100KΩ, tolerances 5%.
• Rear shaft extensions and support bearing.
• Customised shaft sizes are available.
• Dual gang configuration and concentric shafts.
• High torque, center tap, slipping clutch on request.


Description


The 534 precision Potentiometer is a versatile and high-precision component designed for various electronic applications. Featuring a 7/8" (22.2 mm) 10-turn wirewound configuration, this potentiometer offers exceptional accuracy and control. It is available in both bushing and servo mount designs, catering to different mounting requirements. The potentiometer boasts a linearity of ± 0.25%, ensuring precise and reliable performance.


Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation 0


With a wide ohmic range from 100Ω to 100KΩ and a tolerance of 5%, the 534 Wirewound Potentiometer meets diverse circuit requirements. It includes rear shaft extensions and support bearings, providing enhanced stability and durability. Customised shaft sizes are available to fit specific application needs, and the potentiometer can be configured in a dual gang setup with concentric shafts for added flexibility.


Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation 1


Additionally, the 534 model can be equipped with high torque, center tap, and slipping clutch features upon request, further expanding its versatility. This potentiometer is ideal for applications requiring precise resistance adjustments, making it a preferred choice for engineers and designers in fields such as telecommunications, industrial controls, and instrumentation.


Specification


Electrical Characteristics Nominal Resistance Range 100Ω~100KΩ
Resistance Tolerance ±5%
Independent Linearity ±0.25%
Effective Travel ≥3600°-10°
Terminal Resistance ≤0.2%R or 5Ω
Noise ≤3%R or 3Ω
Insulation Resistance R≥1GΩ
Withstand Voltage 101.3kPa 710V, 8.5kPa 470V
Environment Characteristics Rated Power 2W@+70℃, 0W@+125℃
Temperature Range -55℃~+125℃
Temperature Coefficient ±100ppm/℃
Temperature Variation ΔR≤2%R, Δ(Uab/Uac)≤±1%
Vibration 390m/s2, 4000cycles, R≤±1%R
Collision 10-500Hz, 0.75mm, or 98m/s2 , 6hΔR≤土1%R.Δ(Uab/Uac)≤±2%
Climate Category ΔR≤±3%R, R1≥100MΩ
Electrical Endurance At 70°C 2W, 1000h, ΔR≤±3%R
Mechanical Endurance 10000 cycles, ΔR≤±3%R
Steady Damp Heat ΔR≤±3%R, R1≥100MΩ
Physical Characteristics Total Mechanical Travel 3600°±10°
Starting Torque ≤36mN·m
Clutch Torque ≤300mN·m


Dimension


Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation 2


Packaging


Packaging specification: 25 pieces/plastic box, 50 pieces/box.


Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation 3


Application


• Appliance program selection.
• Thermostat adjustment.
• Timer and control relays.
• Consumer electronics.
• Power tool controls.
• Test and measurement equipment.


Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation 4


Advantage


• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.


Product Category


Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation 5


Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation 6


Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation 7


Vishay Spectrol 534 11 2k Precision Rotary Potentiometer For Instrumentation 8
